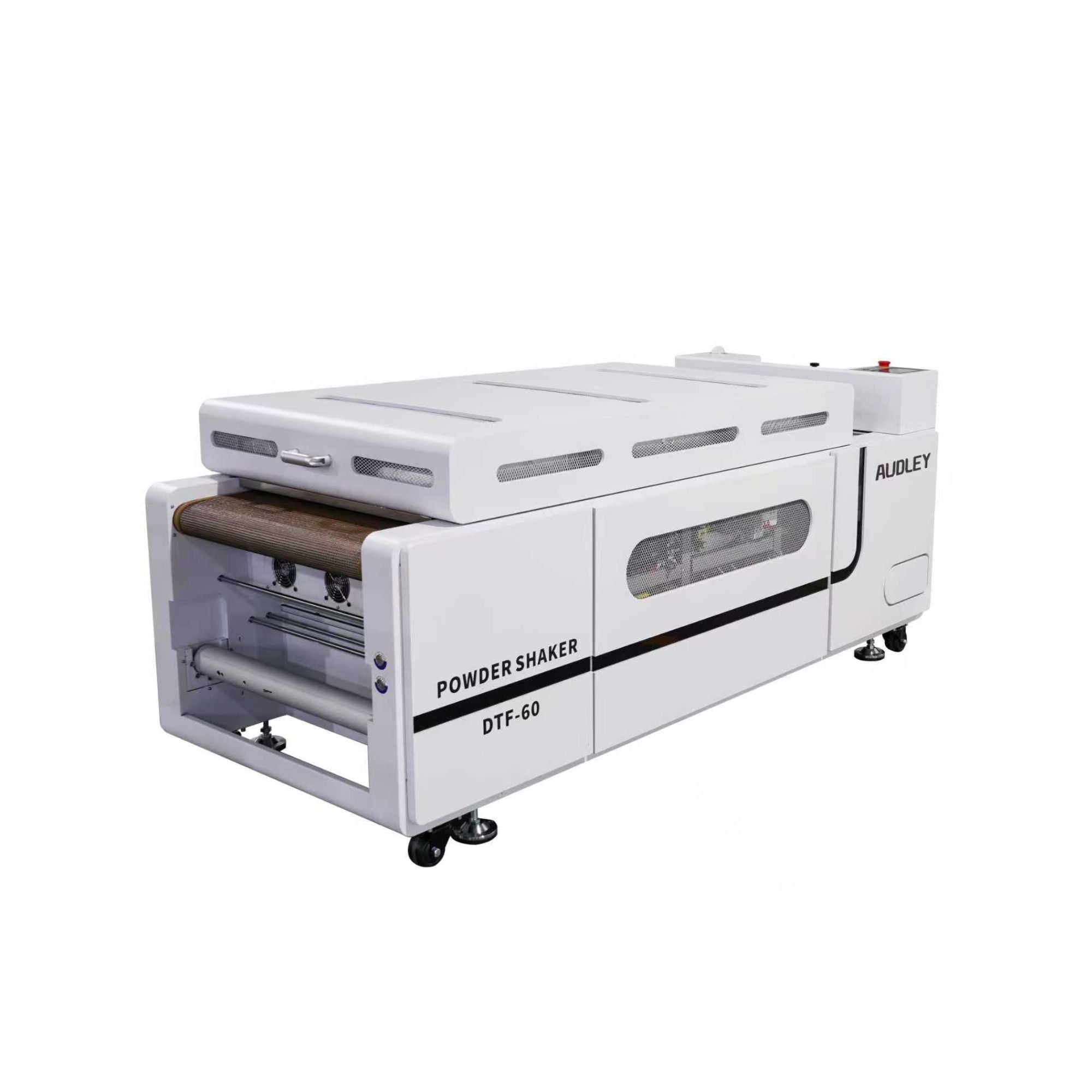

ADL07K10 Automatic DTF Powder Shaker 4-Head / 6-Head DTF Powder Shaker & Dryer

ADL07K10 Automatic DTF Powder Shaker 4-Head / 6-Head DTF Powder Shaker & Dryer

$0.00
$0.00
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

Why Choose

The ADL07K10 Automatic DTF Powder Shaker is a high-performance powder shaker and dryer designed for professional DTF printing production. Compatible with 4-head and 6-head DTF printers, it supports up to 600mm PET transfer film and delivers production speeds of 5–30 m²/h. Featuring automatic powder feeding and recycling, a three-zone drying system, energy-efficient operation, and user-friendly controls, the ADL07K10 helps improve print quality, reduce labor costs, and maximize production efficiency.

Product Overview

The ADL07K10 Automatic DTF Powder Shaker & Dryer is designed for professional DTF printing production. Compatible with both 4-head (S8074-3) and 6-head (S8076-3) printers, it supports PET transfer films up to 600mm (24") wide and delivers stable, high-speed performance for commercial production.

Featuring an optimized heating system, automatic powder recycling, and energy-saving operation, the ADL07K10 helps improve print consistency while reducing labor and operating costs.

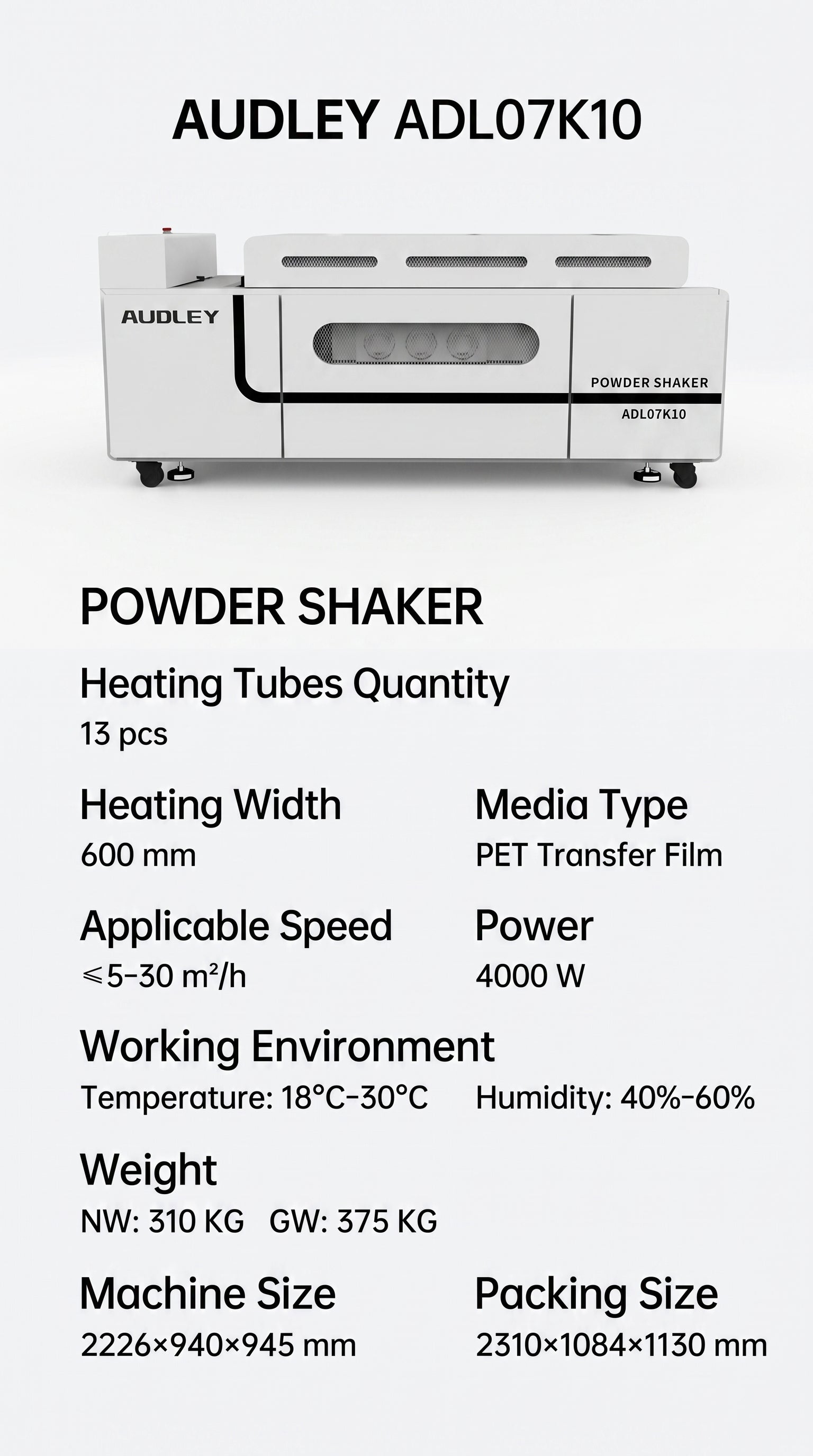

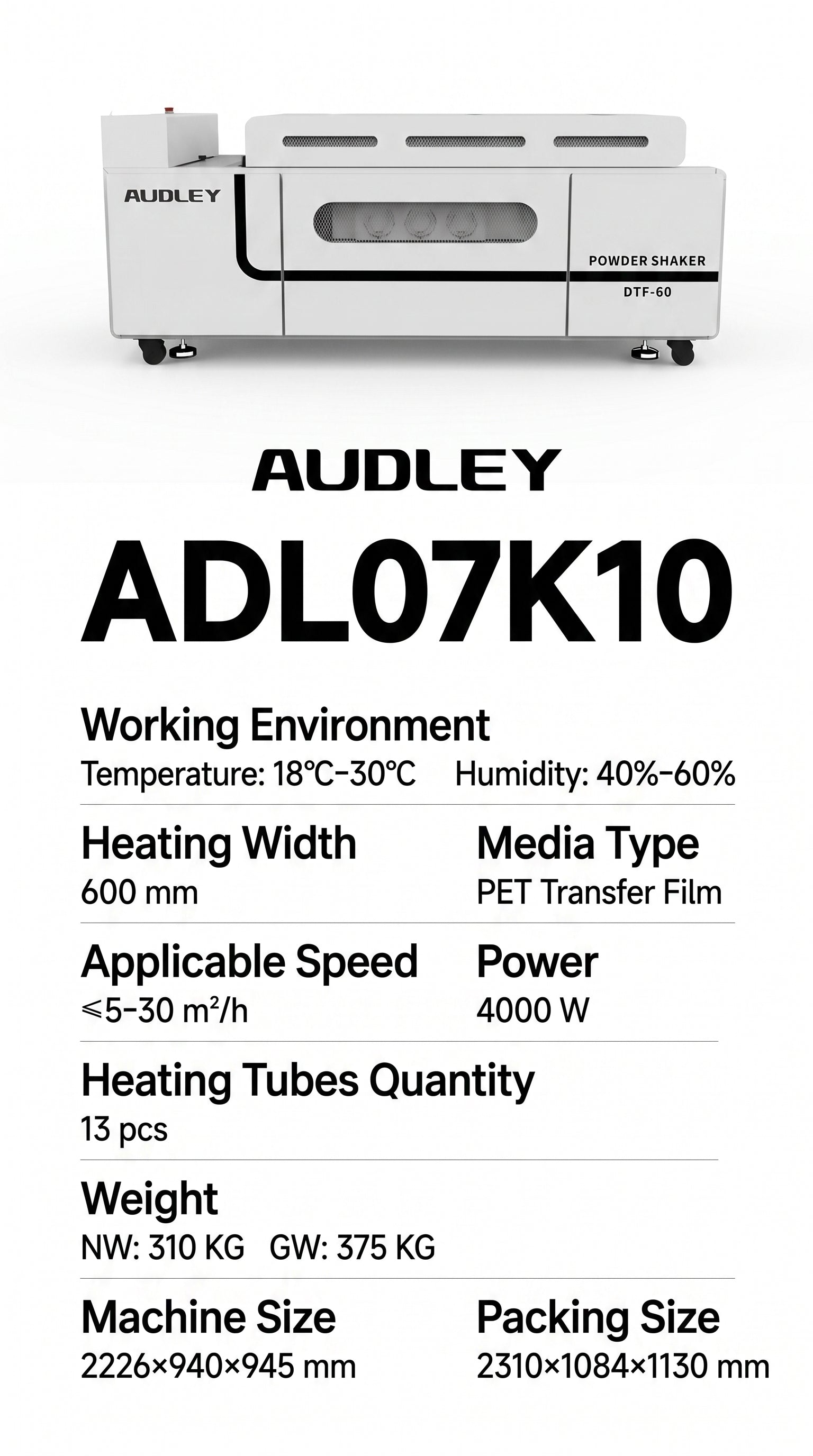

Specifications

Front Guide Temperature

  • 4 Head: 60°C
  • 6 Head: 60–80°C

Operating Environment

  • Temperature: 18–30°C

Printer Compatibility

  • Audley S8074-3 (4 Head)
  • Audley S8076-3 (6 Head)

Media

  • PET Transfer Film

Maximum Film Width

  • ≤600 mm

Production Speed

  • 5–30 m²/h

Power Supply

  • AC 220V
  • 50–60Hz

Power Consumption

  • Operating: 2200–3000W
  • Maximum: 4000W

Heating Tubes

  • 13 × 300W

Platform Temperature

  • 75°C

Drying Temperature

  • 100–150°C

Front Guide Temperature

  • 4 Head: 60°C
  • 6 Head: 60–80°C

Operating Environment

  • Temperature: 18–30°C
  • Humidity: 40–60% RH

Specification Measurement

Machine Dimensions (L × W × H) 2226 × 940 × 945 mm (87.6" × 37.0" × 37.2")

Package Dimensions (L × W × H) 2310 × 1084 × 1130 mm (90.9" × 42.7" × 44.5")

Net Weight: 310 kg (683 lbs)

Shipping Weight: 375 kg (827 lbs)

Key Features

✅ Compatible with 4-Head & 6-Head DTF Printers

  • Supports Audley S8074-3 & S8076-3
  • Film width up to 600 mm (24")

✅ High Production Speed

  • Production speed: 5–30 m²/hour
  • Suitable for both small batch and mass production.

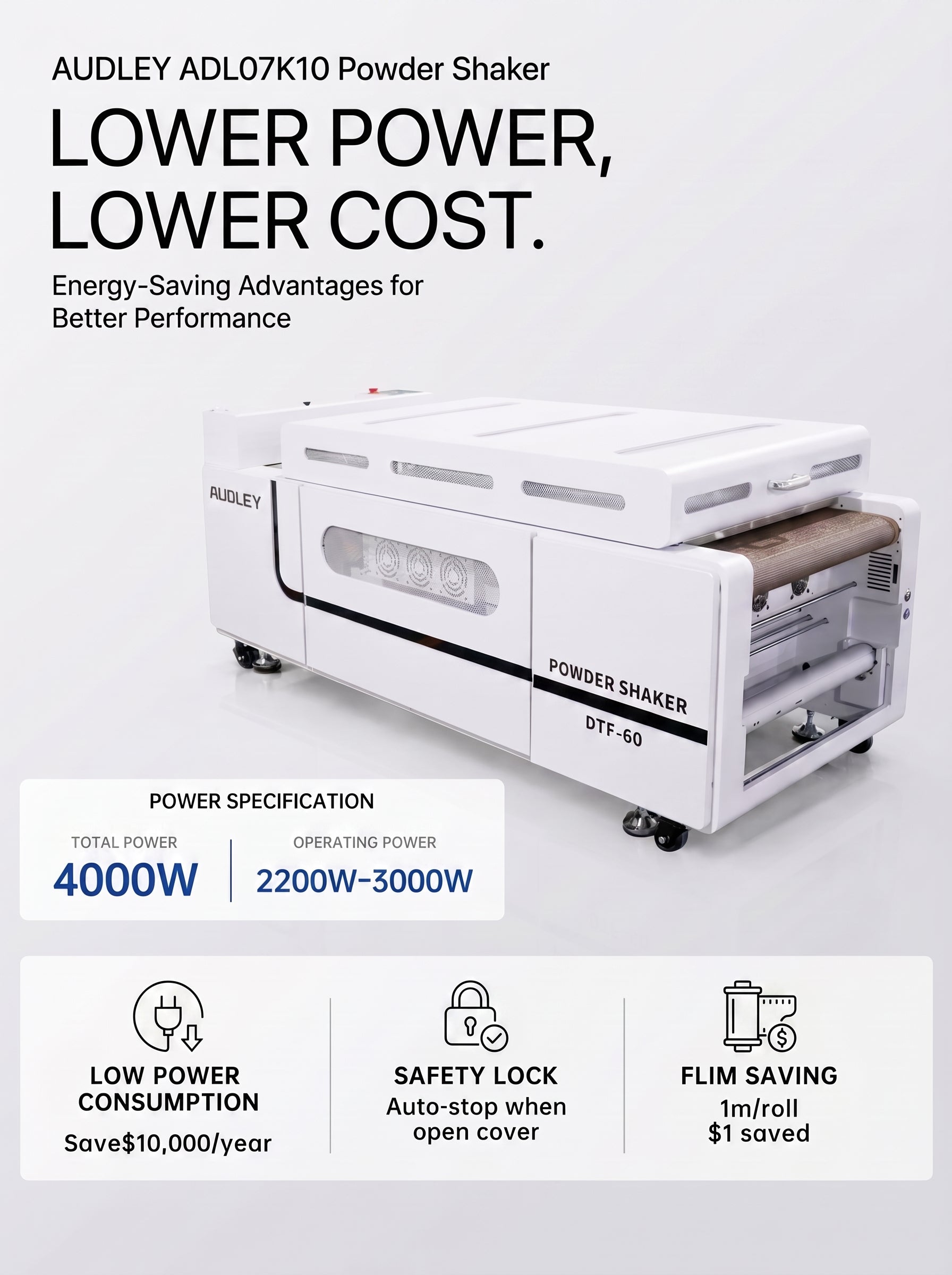

✅ Energy Saving

  • Operating power consumption: 2200–3000W
  • Maximum power: 4000W
  • Saves approximately 25–45% energy compared with conventional powder shakers.

✅ Automatic Powder Recycling

  • Automatic powder feeding
  • Automatic powder recovery
  • Minimized material waste
  • Reduced manual intervention

✅ Stable Drying Performance

  • Three-zone heating system
  • Uniform powder curing
  • Consistent transfer quality

✅ User-Friendly Operation

  • Easy-to-use control panel
  • Adjustable operating parameters
  • Compatible with most 600mm DTF printers

✅ Safety Protection

  • Automatic stop when cover is opened
  • Leakage protection
  • Precise alignment to protect print heads

Warranty

Warranty Coverage & Period
Supplier provides a one (1) year limited warranty for all products it manufactures. The warranty period shall be twelve (12) months from the date the equipment is activated. If installation is delayed due to Buyer, the warranty period will begin seven (7) days after shipment, regardless of installation date.
Warranty Exclusions
The following components are excluded from warranty coverage: printhead, nozzles, ink bottles, secondary ink tanks/cartridges, ink sacs, dampers, ink tubes, capping station (suction cap), ink suction nozzles, printhead cables, white ink mixer/splitter, and the complete ink system.
Additional exclusions apply to:
Damage due to improper operation, unstable voltage, or natural disasters.
Unauthorized disassembly, modification, or replacement of parts.
Use of non-Supplier-approved consumables (including inks) that cause or contribute to equipment failure.
Equipment relocation without Supplier’s prior written permission.

Software

Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.

Support

Online Technical Support:Our experienced support team is available nearly around the clock to provide timely assistance, helping minimize downtime and keep your production running smoothly.

Complimentary On-Site Repair:During the warranty period, we offer one complimentary on-site repair service to address eligible issues at cost, helping maximize equipment uptime and operational reliability.

Installation & Training Options

Free Online Setup Resources:Customers have access to a comprehensive library of instructional videos and step-by-step guides, enabling a smooth and efficient setup process—even for first-time users. (Prices are subject to actual conditions)

On-Site Installation & Training:For a one-time service fee, we provide professional on-site installation along with hands-on training. This ensures your team can operate the printer confidently, efficiently, and correctly from day one.

Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer, To maintain your warranty, please use DTF OneStop approve supplies, as the use of unapproved third-party supplies may void coverage.
