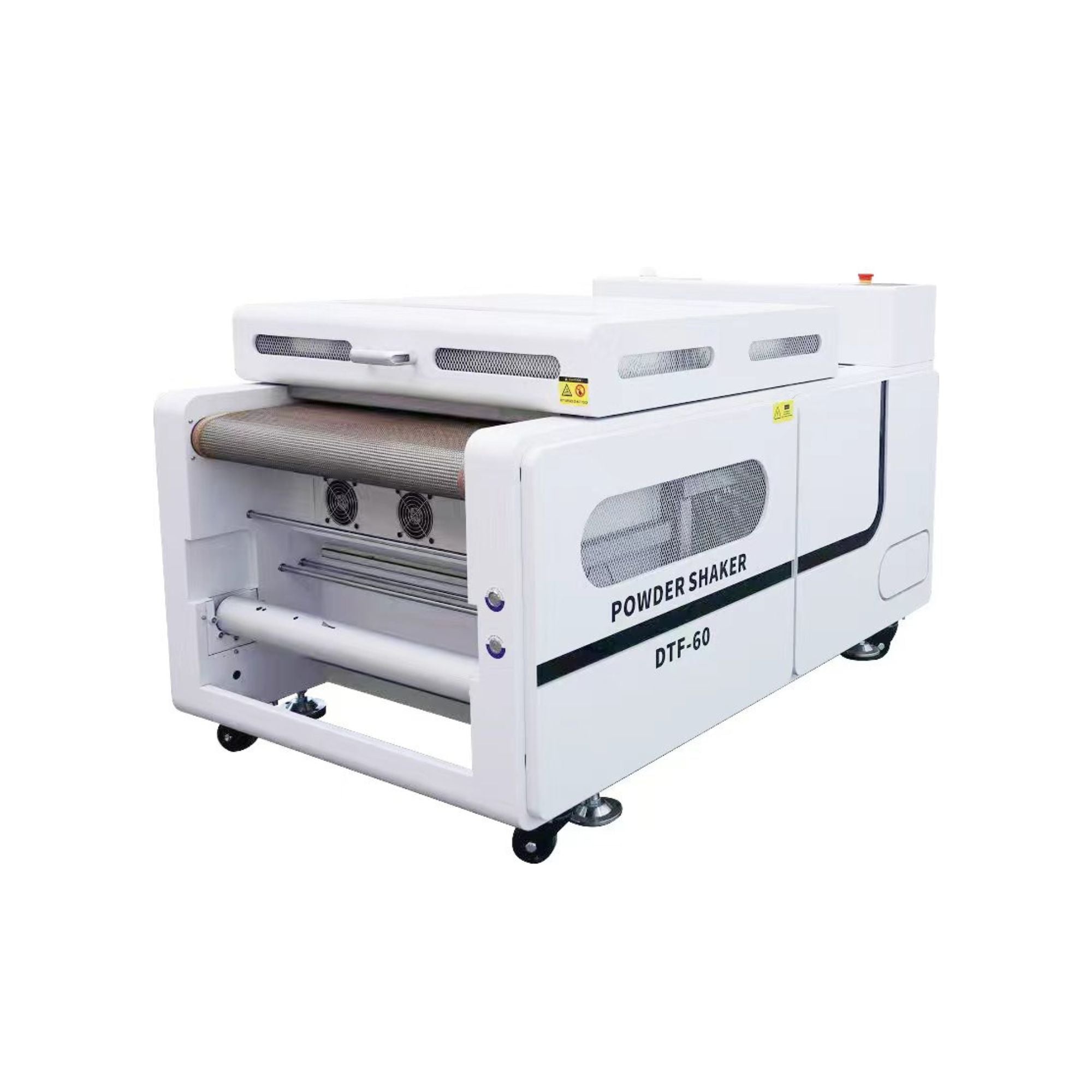

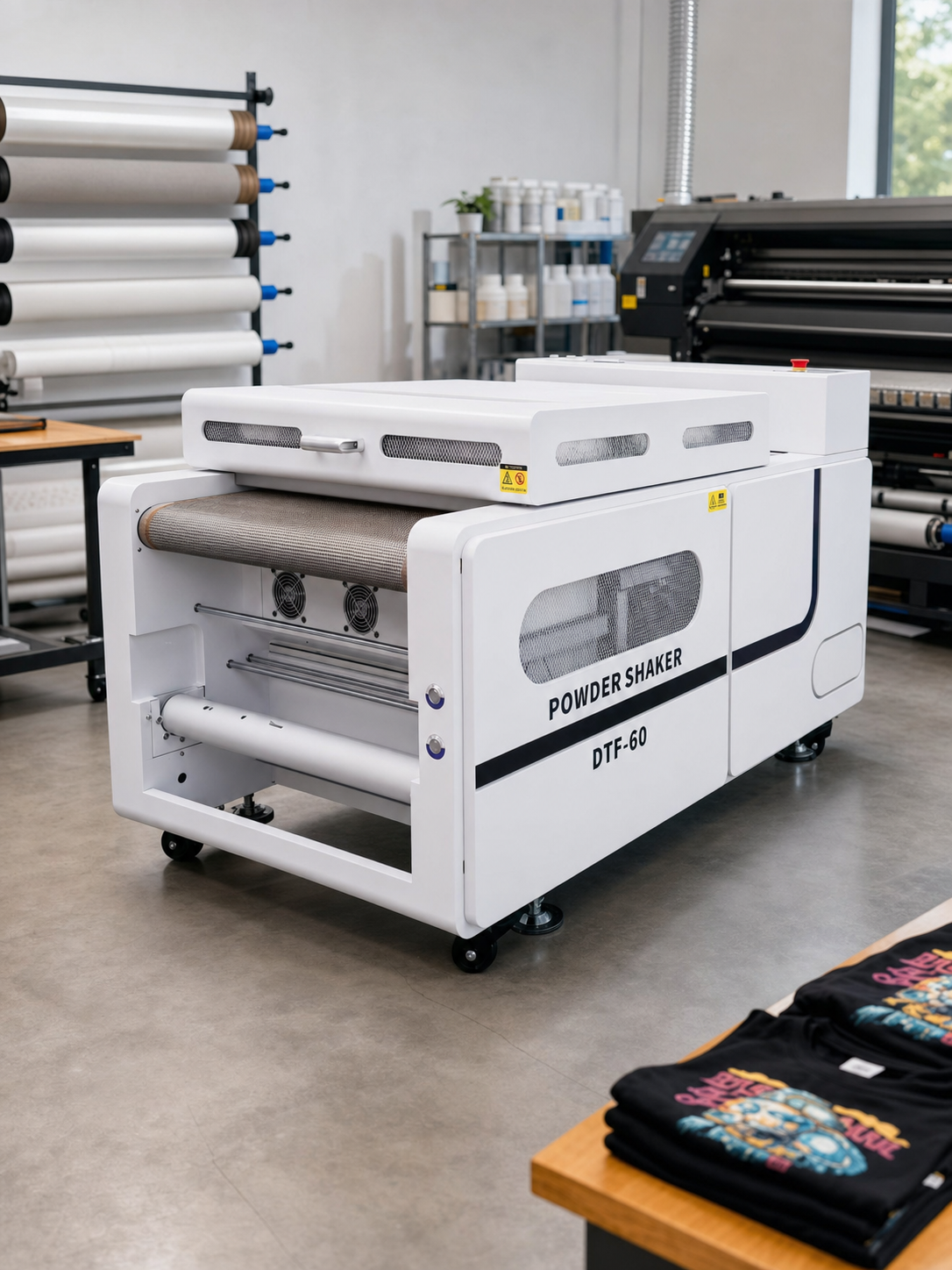

ADL07K12 Automatic DTF Powder Shaker-Compact 600mm DTF Powder Shaker & Dryer with Built-in Purifier

ADL07K12 Automatic DTF Powder Shaker-Compact 600mm DTF Powder Shaker & Dryer with Built-in Purifier

$0.00
$0.00
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

Summary

The ADL07K12 Automatic DTF Powder Shaker is a compact, high-efficiency powder shaker and dryer designed for professional DTF printing. Supporting 600mm PET transfer film, this model features automatic powder feeding, a 2-stage adjustable drying system, and a built-in triple filtration purifier for cleaner operation. With an advanced PLC control system and energy-efficient performance, the ADL07K12 is ideal for print shops seeking reliable, high-quality production.

Dimensions

Machine Dimensions (L × W × H): 1611 × 940 × 946 mm (63.4" × 37.0" × 37.2")
Package Dimensions (L × W × H): 1700 × 1090 × 1110 mm (66.9" × 42.9" × 43.7")
Machine Weight: 242 kg (534 lbs)
Built-in Purifier: Included
Shipping Method: Freight Shipping Required

Key Features

  • Production Speed up to 27 m²/h for efficient, high-volume DTF printing.
  • Supports 600mm (24") PET Transfer Film, compatible with most standard DTF printers.
  • Automatic Powder Feeding with adjustable powder shaking for consistent powder distribution.
  • 2-Stage Adjustable Drying System ensures even curing and improved transfer quality
  • Pre-Heat Circulation System provides stable and efficient drying performance.
  • Built-in Triple Filtration Purifier reduces smoke, odors, and airborne particles for a cleaner workspace.
  • Advanced PLC Control System with an intuitive interface for easy operation and precise parameter adjustments.
  • Integrated Paper Collection System with emergency stop for smooth and reliable media handling.
  • Energy-Efficient Design with only 1800W operating power and 2900W maximum power.
  • Automatic Safety Protection includes safety cover detection and leakage protection for secure operation.
  • Compact Industrial Design fits through standard 900mm doorways while maximizing production efficiency.
  • Heavy-Duty Construction built for continuous commercial and industrial DTF production.

Technical Specifications

  • Model: ADL07K12
  • Maximum Film Width: ≤600 mm (24")
  • Production Speed: Up to 27 m²/h
  • Media Type: PET Transfer Film
  • Media Transfer System: Mesh Belt Transmission with Integrated Paper Collection
  • Heating Method: Tube Heating (6 × 300W)
  • Heating Width: 600 mm
  • Platform Heating Temperature: 75°C
  • Drying Temperature: 90–120°C
  • Control System: Advanced PLC Programming
  • Drying System: Pre-Heat Circulation with 2-Stage Adjustable Drying
  • Air Purification: Built-in Triple Filtration System (Pre-Filter, Metal Mesh, Activated Carbon & High-Efficiency Filter)
  • Paper Collection: Integrated Collection System with Emergency Stop
  • Power Supply: AC 220V, 50–60Hz
  • Maximum Power Consumption: 2900W
  • Operating Power: 1800W
  • Powder Feeding: Adjustable, Auto Feed Recommended (≥40%)
  • Recommended Operating Temperature: 18–30°C
  • Recommended Operating Humidity: 40–60% RH

Warranty

Warranty Coverage & Period
Supplier provides a one (1) year limited warranty for all products it manufactures. The warranty period shall be twelve (12) months from the date the equipment is activated. If installation is delayed due to Buyer, the warranty period will begin seven (7) days after shipment, regardless of installation date.
Warranty Exclusions
The following components are excluded from warranty coverage: printhead, nozzles, ink bottles, secondary ink tanks/cartridges, ink sacs, dampers, ink tubes, capping station (suction cap), ink suction nozzles, printhead cables, white ink mixer/splitter, and the complete ink system.
Additional exclusions apply to:
Damage due to improper operation, unstable voltage, or natural disasters.
Unauthorized disassembly, modification, or replacement of parts.
Use of non-Supplier-approved consumables (including inks) that cause or contribute to equipment failure.
Equipment relocation without Supplier’s prior written permission.

Software

Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.

Support

Online Technical Support:Our experienced support team is available nearly around the clock to provide timely assistance, helping minimize downtime and keep your production running smoothly.

Complimentary On-Site Repair:During the warranty period, we offer one complimentary on-site repair service to address eligible issues at cost, helping maximize equipment uptime and operational reliability.

Installation & Training Options

Free Online Setup Resources:Customers have access to a comprehensive library of instructional videos and step-by-step guides, enabling a smooth and efficient setup process—even for first-time users. (Prices are subject to actual conditions)

On-Site Installation & Training:For a one-time service fee, we provide professional on-site installation along with hands-on training. This ensures your team can operate the printer confidently, efficiently, and correctly from day one.

Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer, To maintain your warranty, please use DTF OneStop approve supplies, as the use of unapproved third-party supplies may void coverage.
