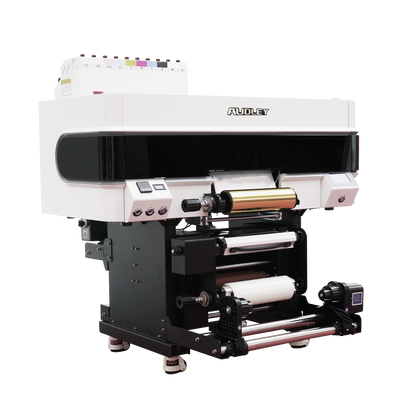

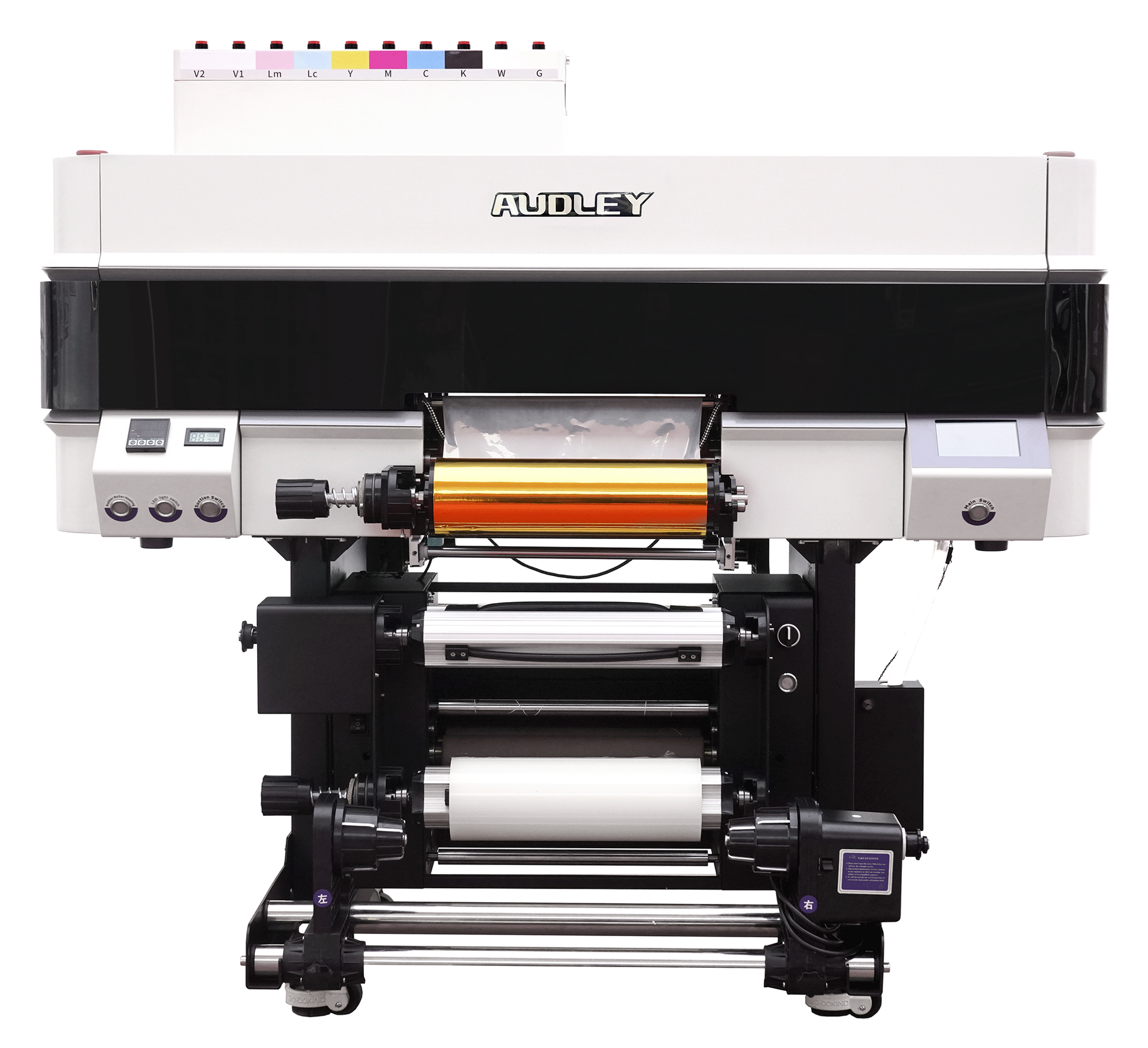

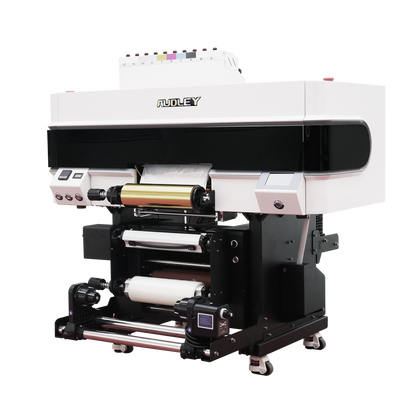

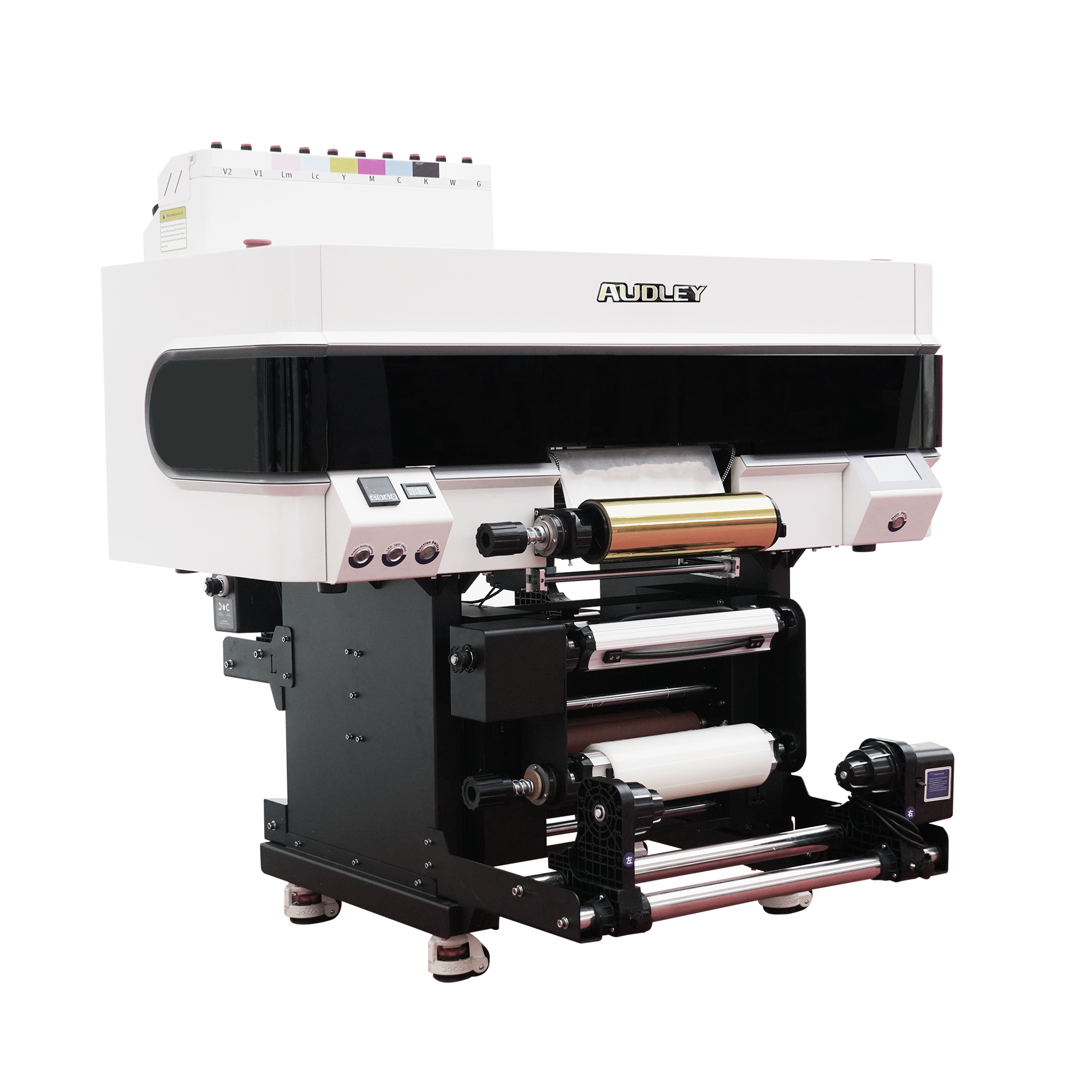

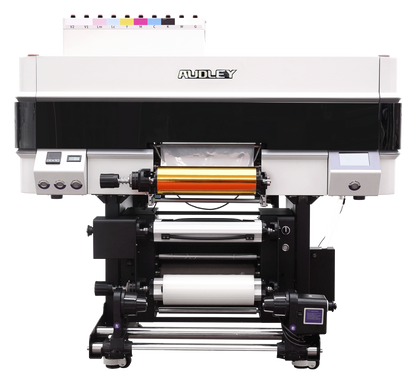

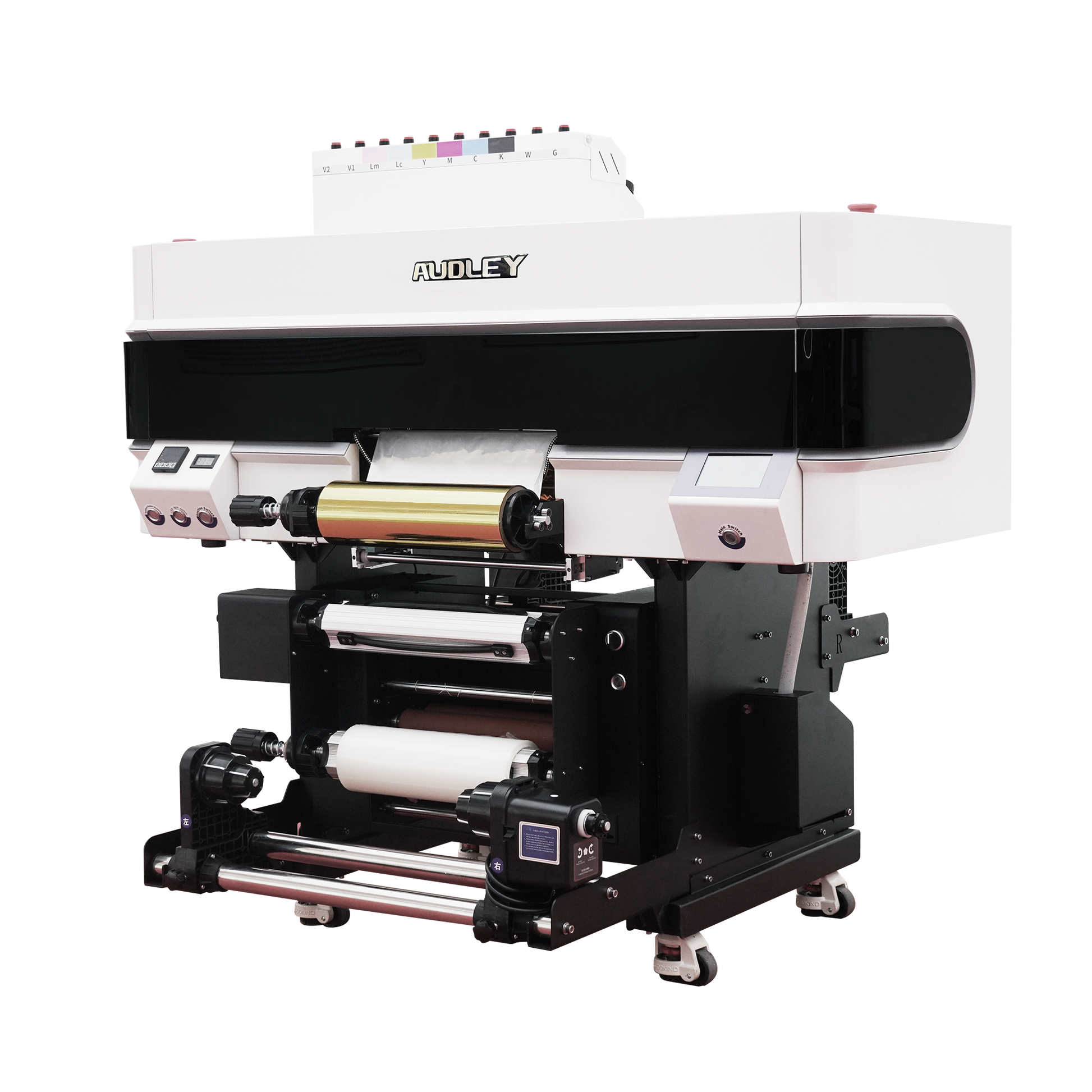

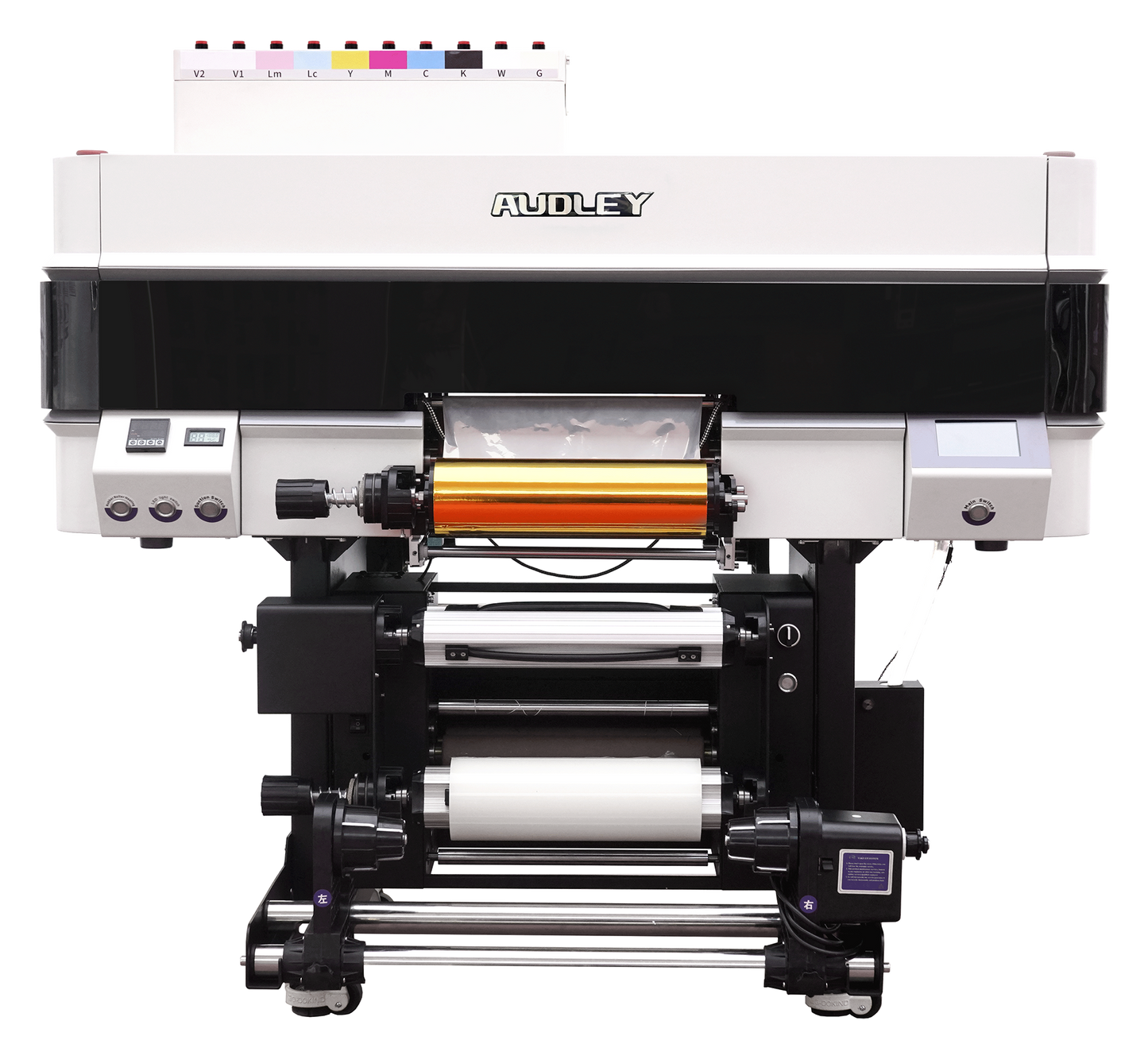

Audley 4 Printheads (XP600) 12in (30cm) Premium UV DTF Printer with Hot Foil
Crystal labels with a golden signature: the AUDLEY ADL-03N04 UV DTF Printer runs four Epson XP600 print heads on 12 in (300 mm) film — printing, UV LED curing and hot-foil laminating inside one compact frame. Key Feature…
Popular upgrades
$7,399.00
In stock, ready to ship
1
Pickup available at DTF OneStop Open Mon–Fri Pickup 10 AM – 3 PM
Usually ready in 24 hours
19844 Quiroz Court, Unit BCity of Industry, CA 91789United States
Ships in 1 business day In stock in Los Angeles
US-Based Hour Tech Support Real techs, real answers
1-year warranty Parts stocked in the US
Free shipping On orders over $350
Small Footprint, Gold Finish.
Take a closer look at the compact crystal-label station with a golden signature.

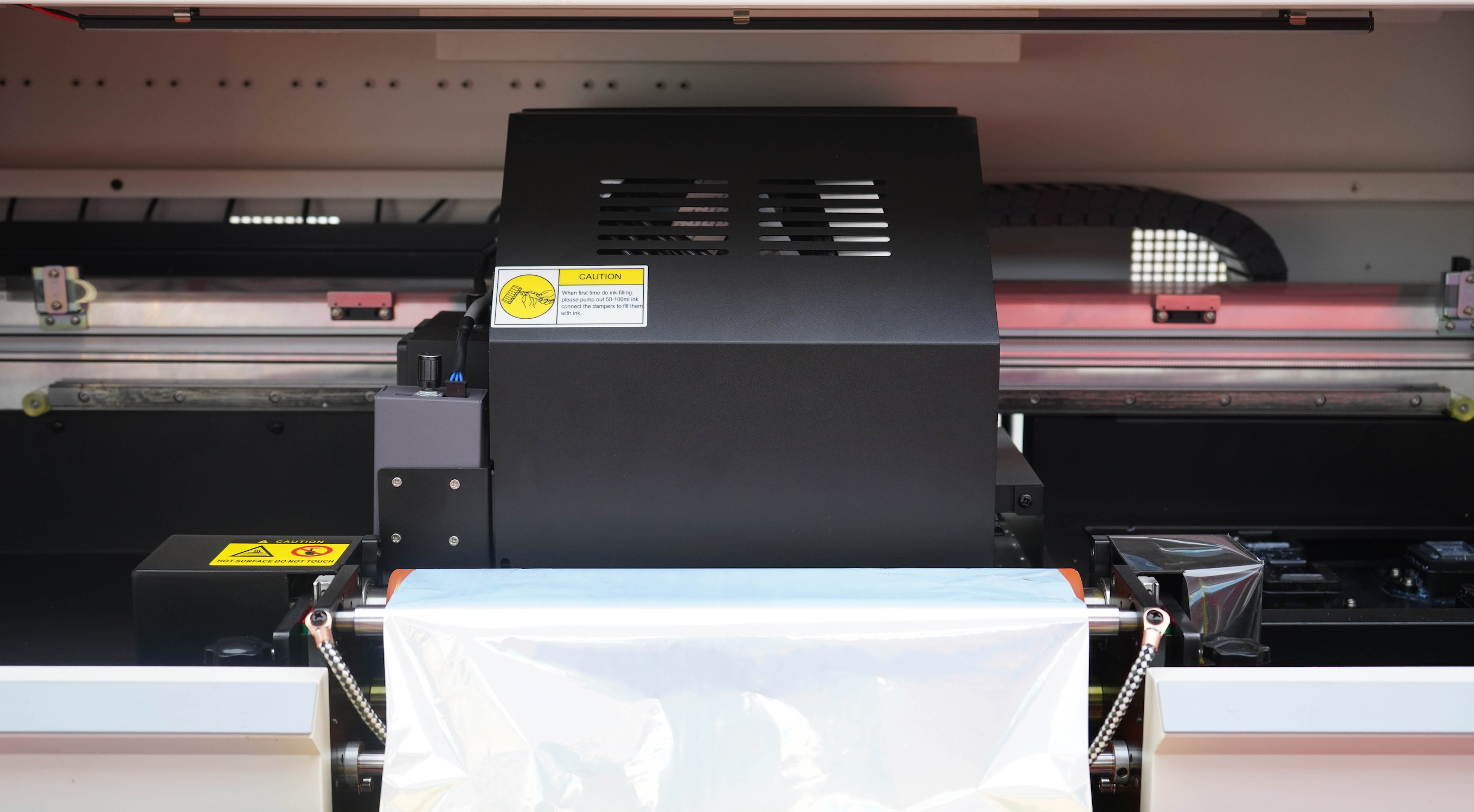

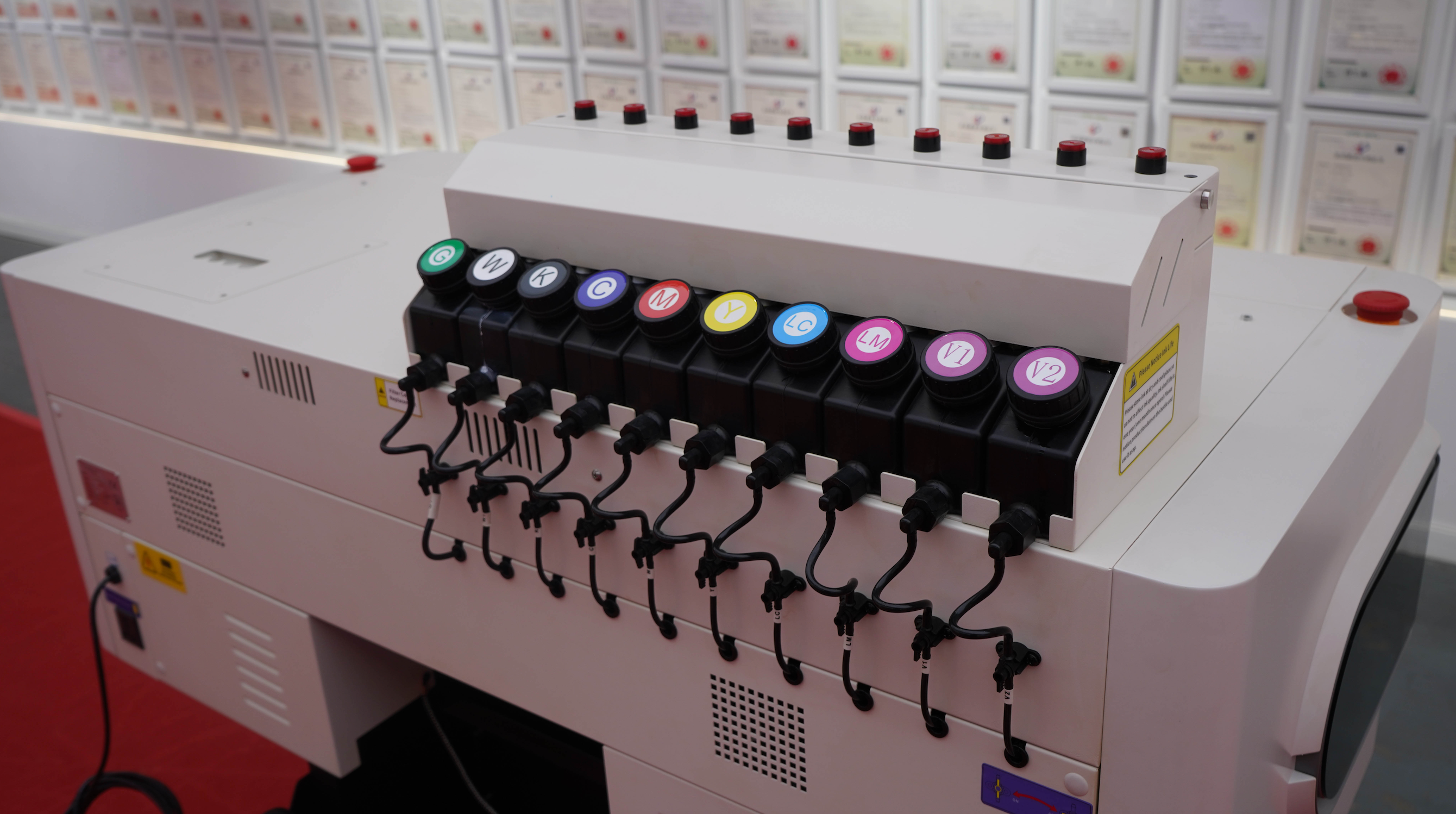

Four Epson XP600 heads lay down CMYK plus light cyan and light magenta, with white, dual varnish and adhesive channels feeding from a ten-bottle bank — and white-ink circulation keeps the opaque layer stirred and clog-free.

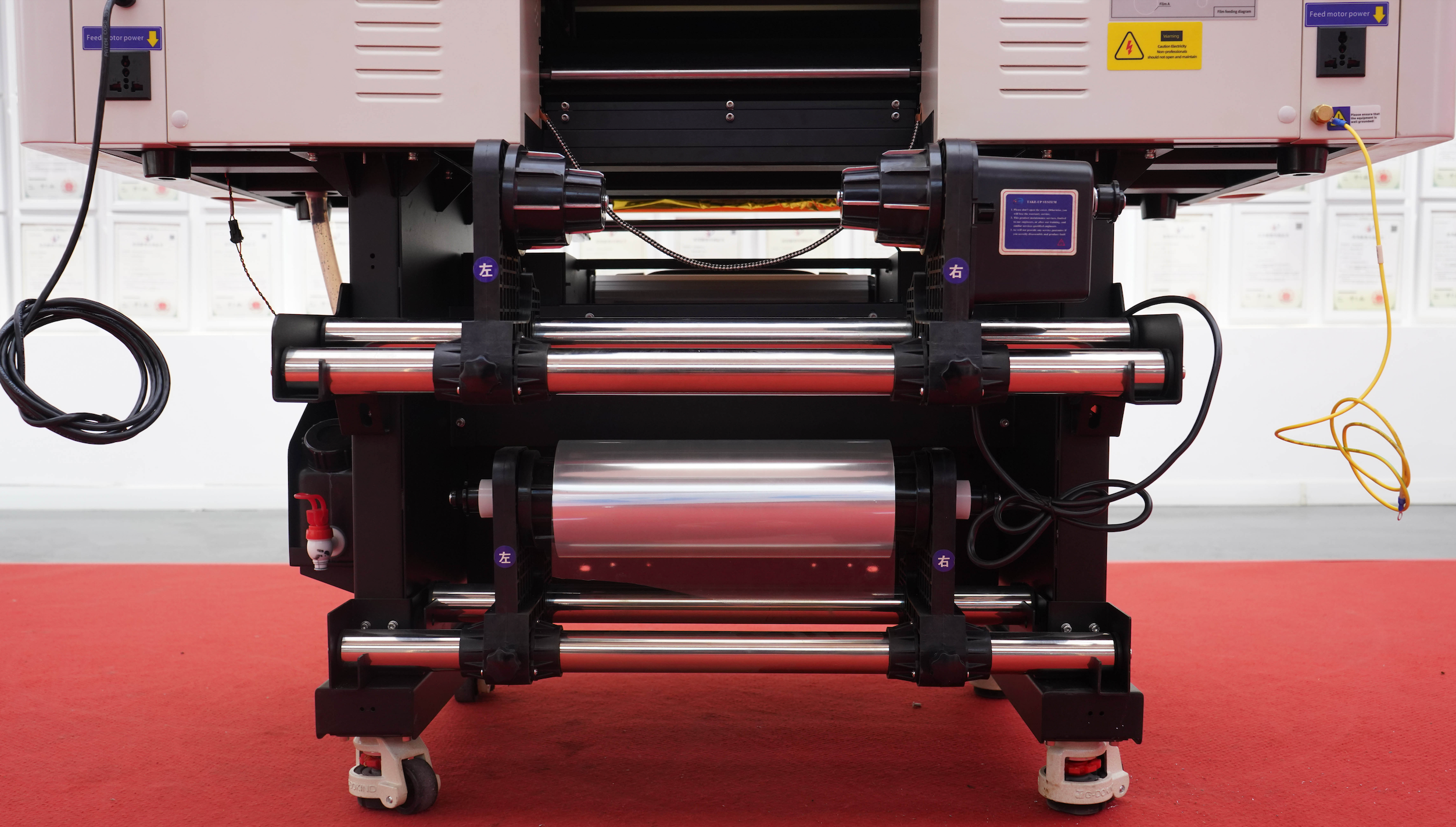

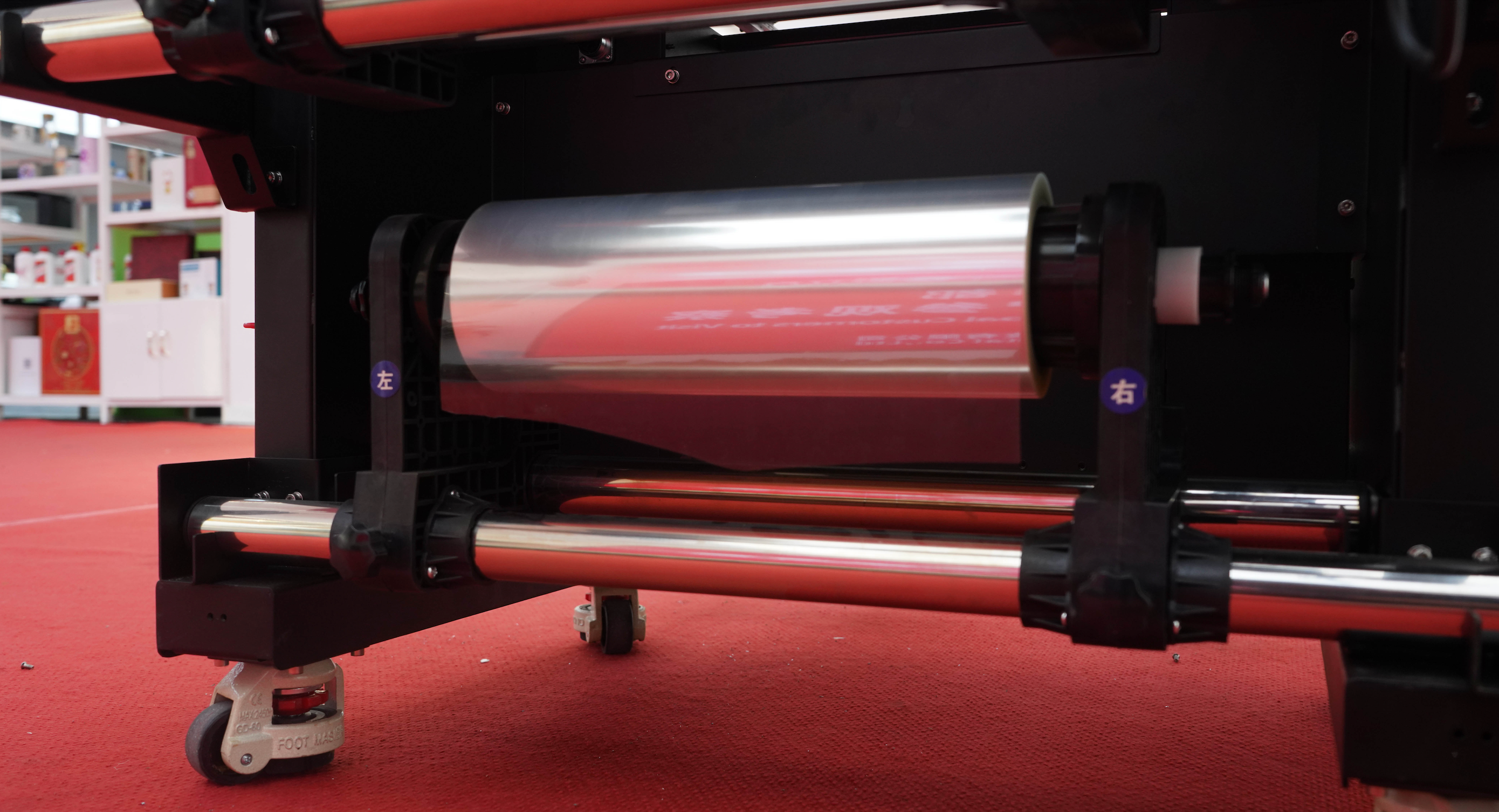

Temperature-controlled laminating rollers marry film and hot-stamping foil inside the same compact frame, with UV LED curing and dual-side adjustable feeding keeping every roll straight.
View Tech Specs
Ink System
10-Bottle Ink Station
Gold Finish
Hot Foil Lamination
Print Power
4 × Epson XP600
Media Path
Dual-Side Feeding
Compact Body, Full Workflow.
This is UV DTF for shops without factory floors: a 51-inch frame, 392 pounds, and AC 110–220V dual-voltage support that runs on a standard outlet.
Color, white, varnish and adhesive lay down in one pass, UV LED lamps cure the ink the moment it lands, and heated rollers laminate on the way out — peel-and-stick crystal labels straight off the machine.
MainTop or PhotoPrint RIP over gigabit Ethernet takes TIFF and JPEG artwork from any workstation in the shop.
Why Choose the ADL-03N04?
Gold-Foil Signature — built-in hot foil lamination turns everyday labels into premium metallic-finish products most shops can't offer.
Complete in One Frame — print, cure and laminate happen inside one compact machine; labels come out finished, no extra equipment.
Backed in the U.S. — ships from our Los Angeles warehouse with a 1-year warranty, free training and US-Based Hour Tech Support.
Covered for the First Year
1-Year Full Coverage Warranty on all major machine components (excluding printheads and ink system components).
If anything fails, our Los Angeles team diagnoses it remotely and ships replacement parts straight from local stock — no overseas wait, no guesswork.
Trusted by print professionals across the U.S.
Free Training & US-Based Hour Tech Support
Every machine includes free remote setup and operator training — we get your team printing, not just unboxing.
After that, real technicians answer on our US-Based Hour Tech Support line, backed by parts on the shelf in Los Angeles.
Technical Specifications
Model
– ADL-03N04
Type
– UV DTF Crystal Label Printer
Print Heads
– 4 × Epson XP600
Print Width
– Up to 12 in (30 cm)
Ink
– CMYK + Lc + Lm + White + Varnish (UV-curable) + G
Print Modes
– Color + White + Varnish
– Adhesive + Gloss finish
Curing
– UV LED system
Lamination
– Temperature-controlled rollers, hot stamping foil
White Ink
– Circulation & stirring system
Motion
– High-precision linear guide rails
RIP Software
– MainTop / PhotoPrint
File Formats
– TIFF, JPEG
Data Transfer
– Gigabit Ethernet
Voltage
– AC 110–220V
Power
– 1200W
Working Environment
– 68–86°F (20–30℃), 40–60% RH
Machine Size
– 51.2 × 41.3 × 49.8 in (130 × 105 × 126.5 cm)
Net Weight
– 392 lb (178 kg)
FAQs
Answers to the questions we hear every day from print shops.
Yes — every printer includes remote setup and operator training with our LA techs, plus lifetime support.
Supplies ship same-day before 1PM PT. Machines ship freight within 1-2 business days after testing.
Yes — 0% down options through our financing partners. See the Financing page or ask our team.
Yes, free self-pickup at 19844 Quiroz Court, Unit B, City of Industry, CA — Mon-Fri 10AM-3PM.
US-stocked parts and remote diagnostics. Most issues resolve within one business day.
