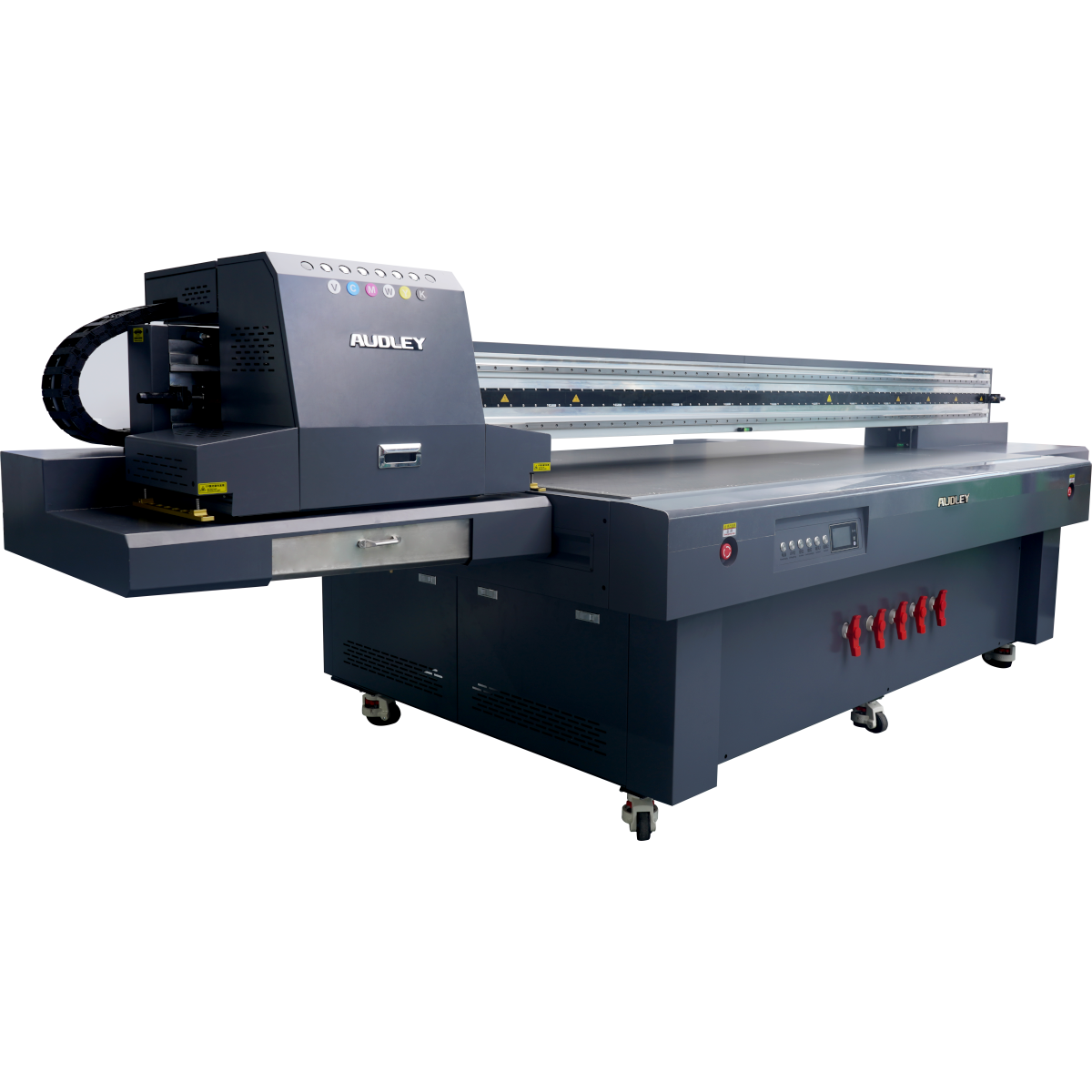

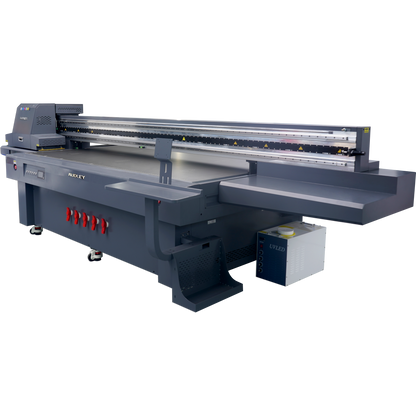

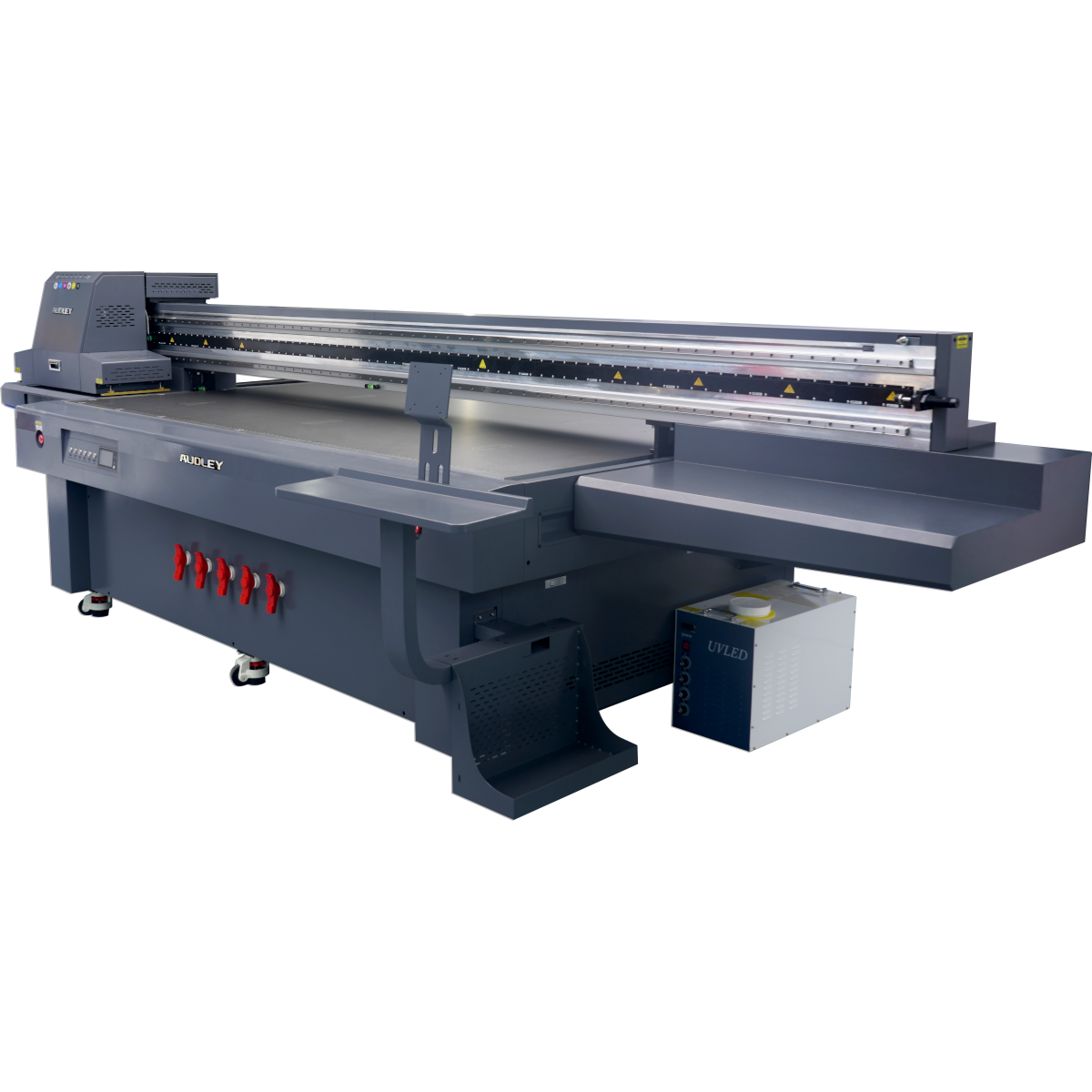

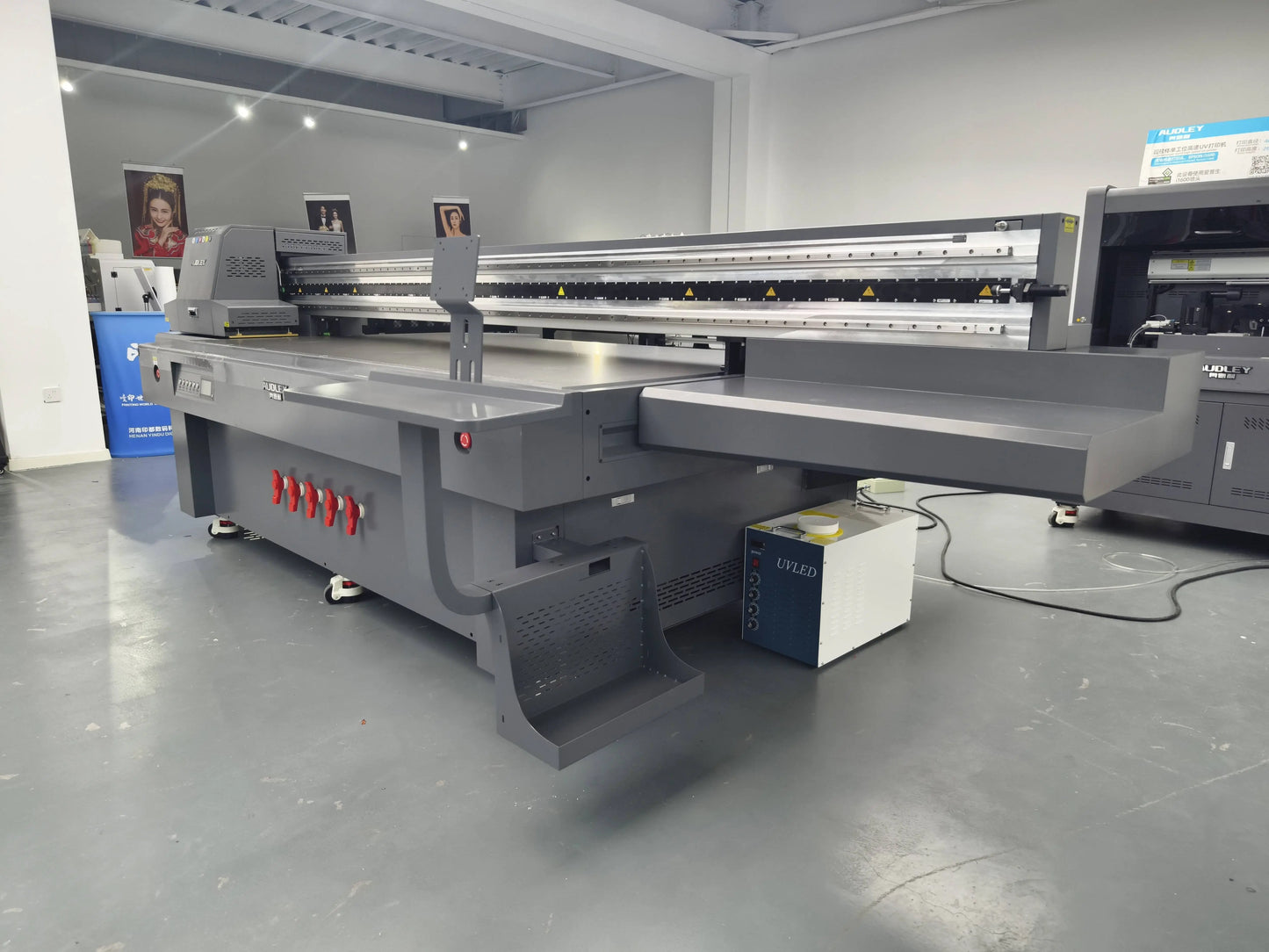

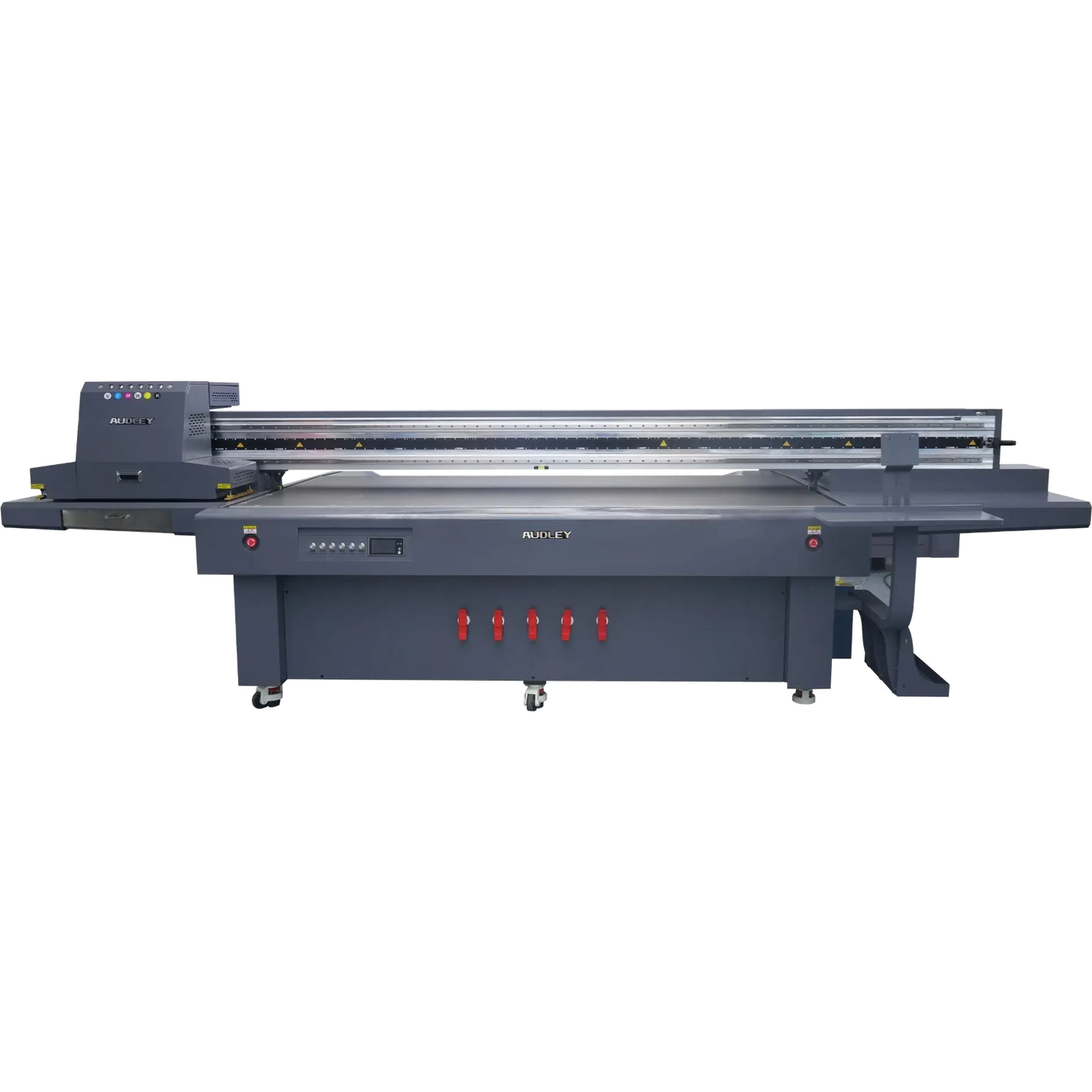

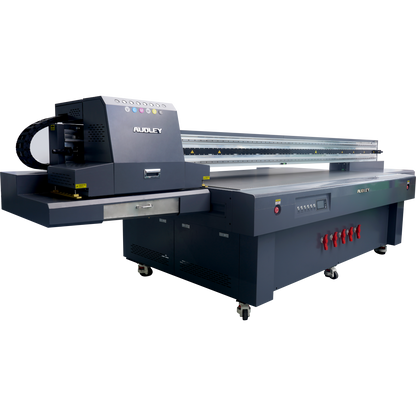

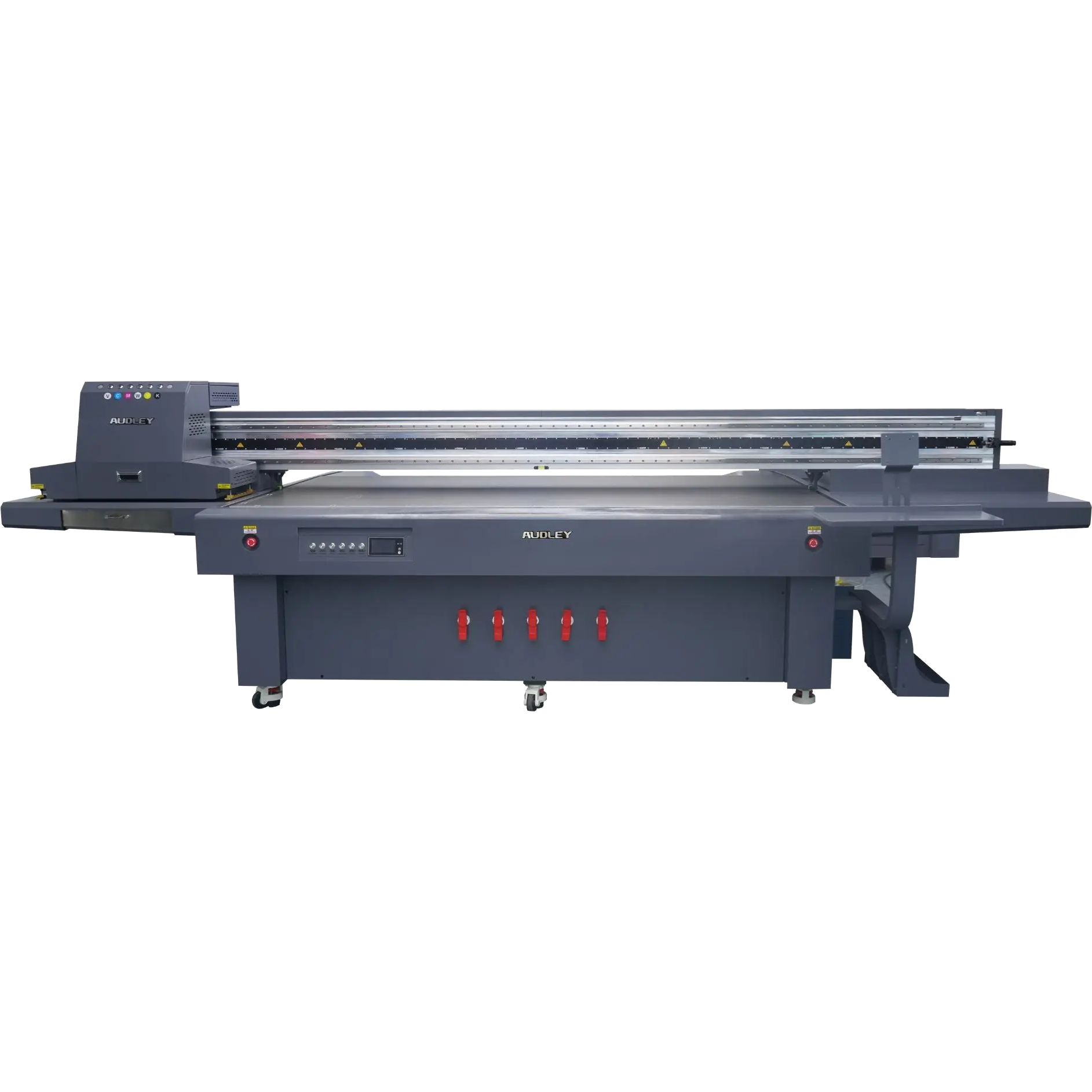

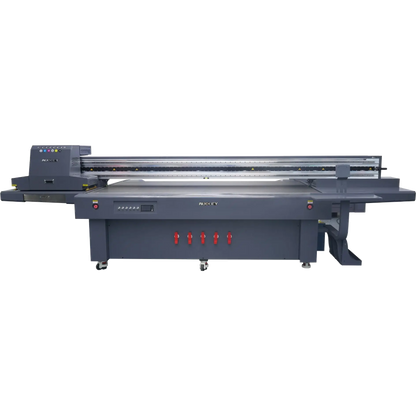

Audley 2513 UV Flatbed Printer – 4 Head Ricoh G5/G6 | High-Speed Multi-Material Printing with Advanced Precision

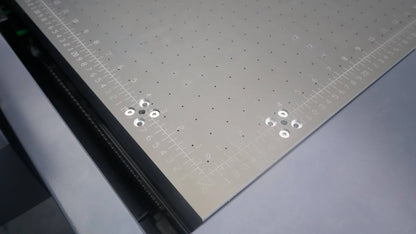

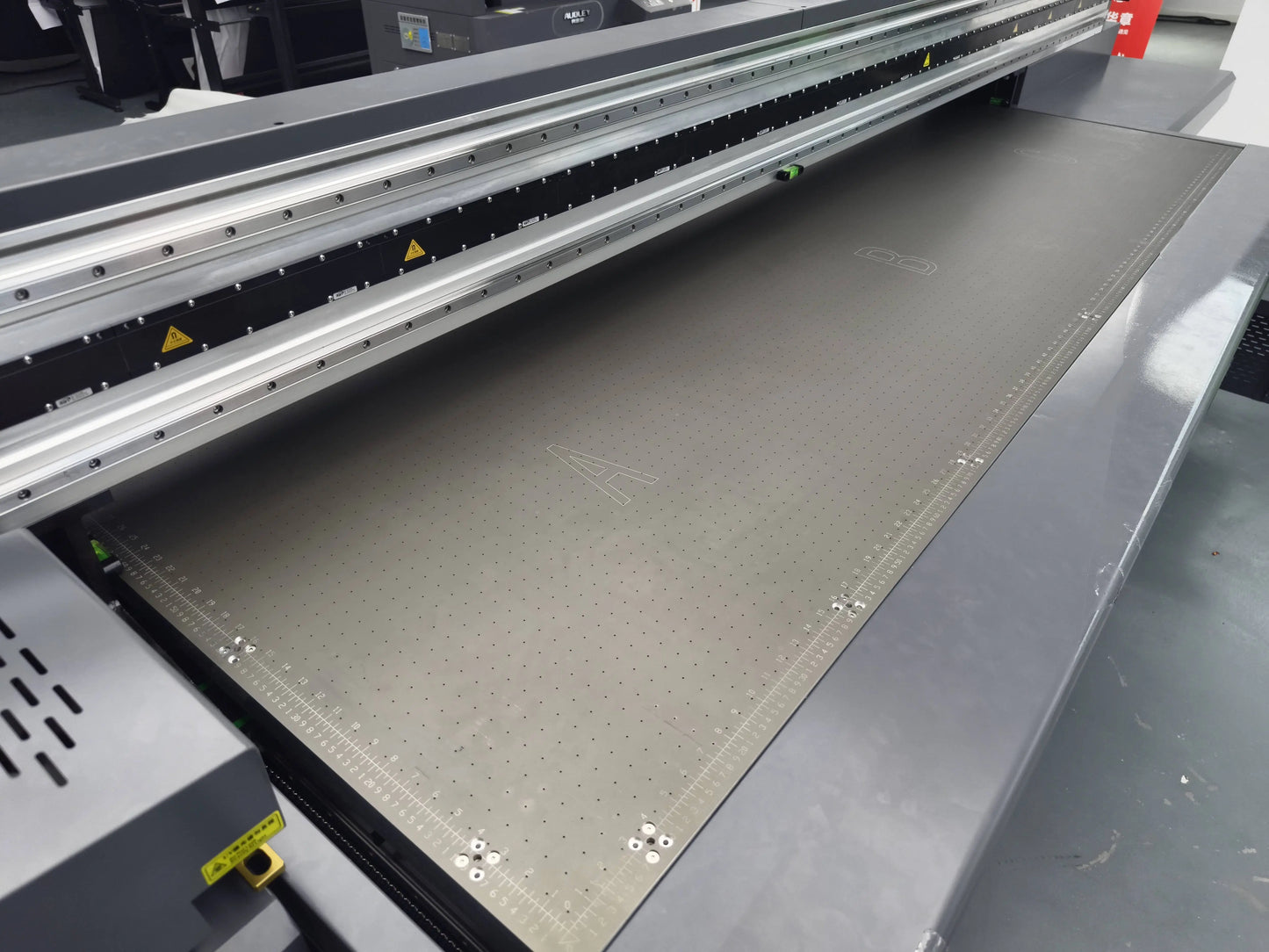

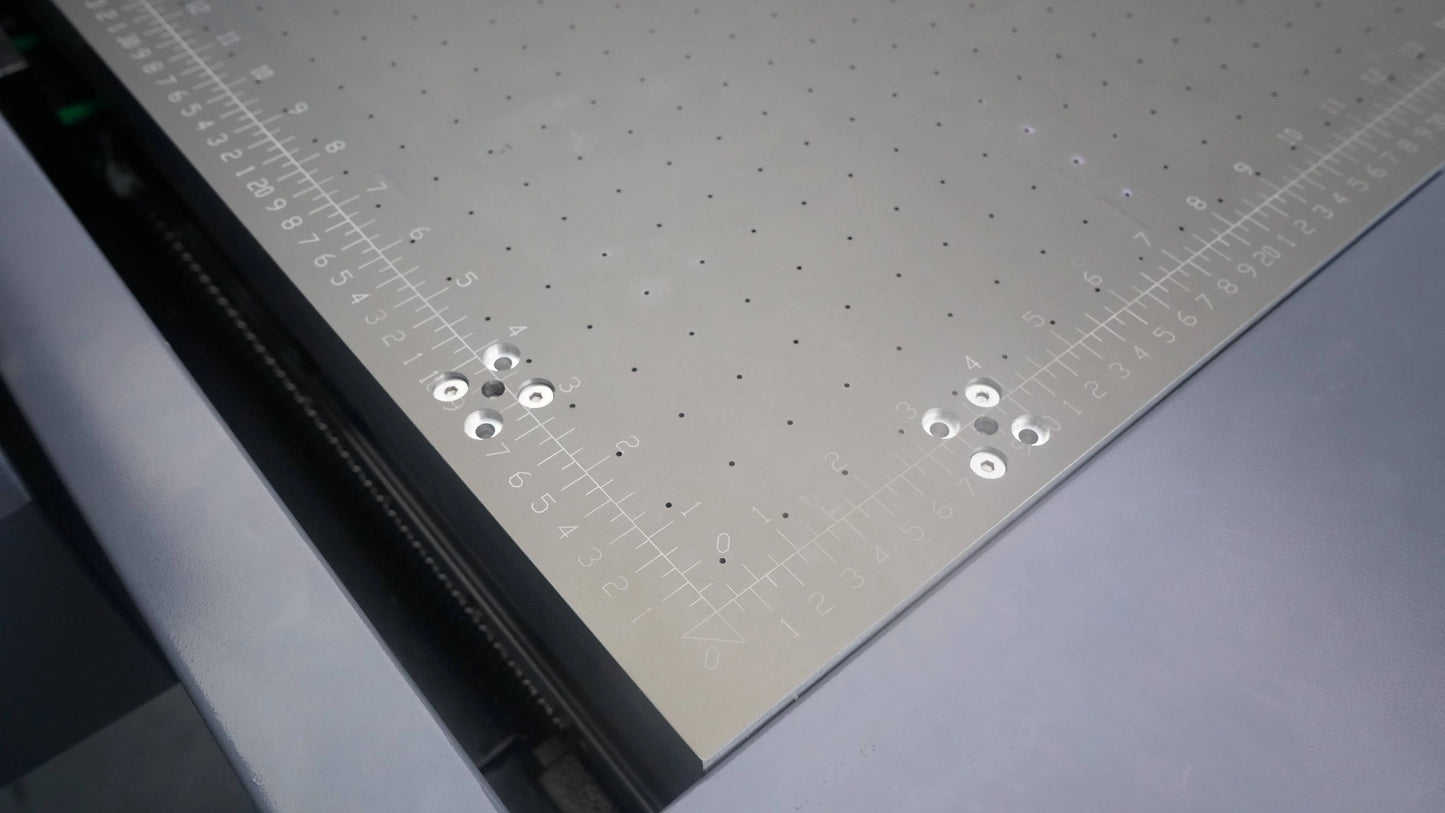

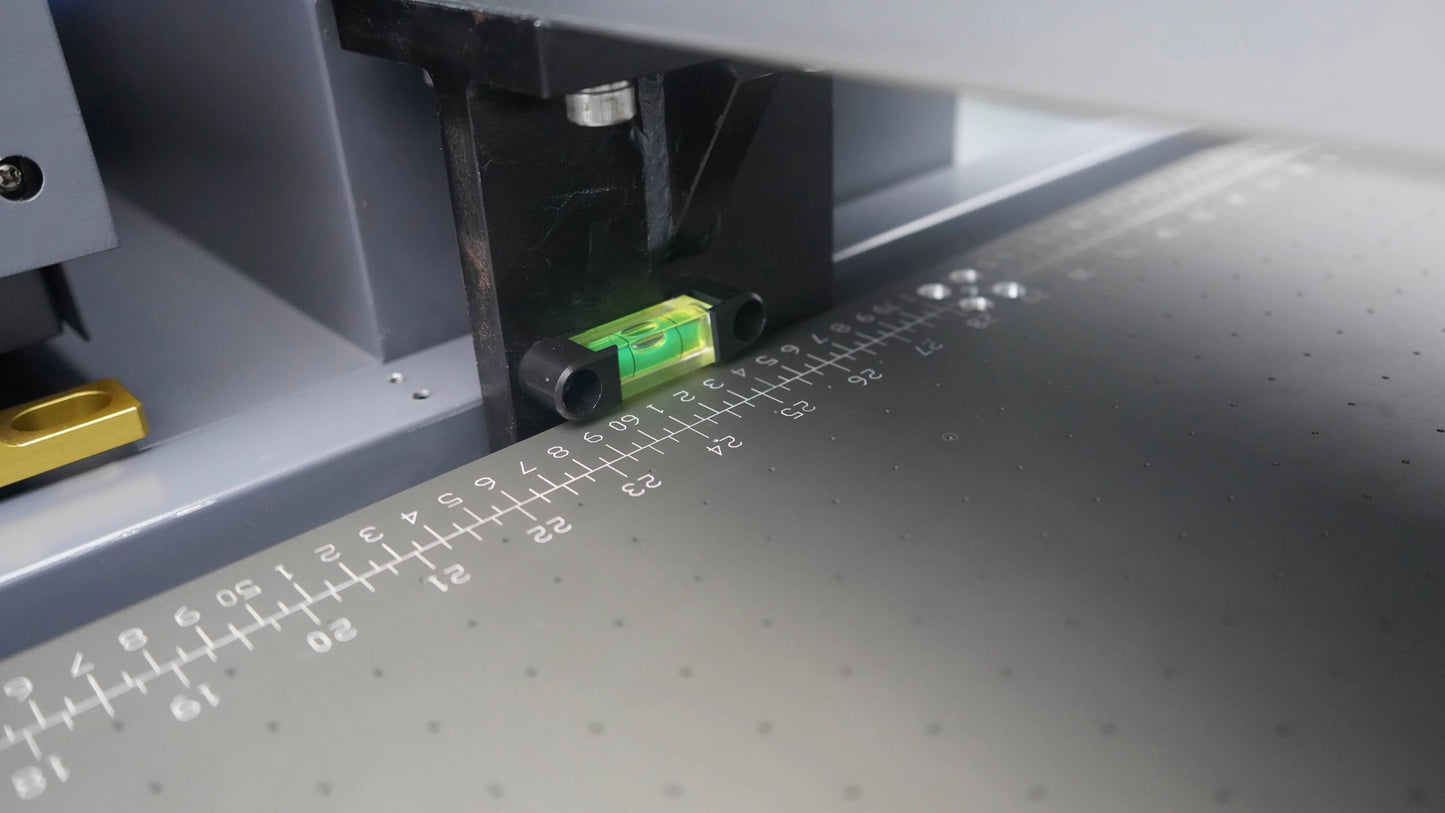

• 2.5-Meter Print Bed — 2500mm × 1300mm print area handles doors, furniture panels, full acrylic sheets, and architectural materials. Opens markets no desktop printer can reach.

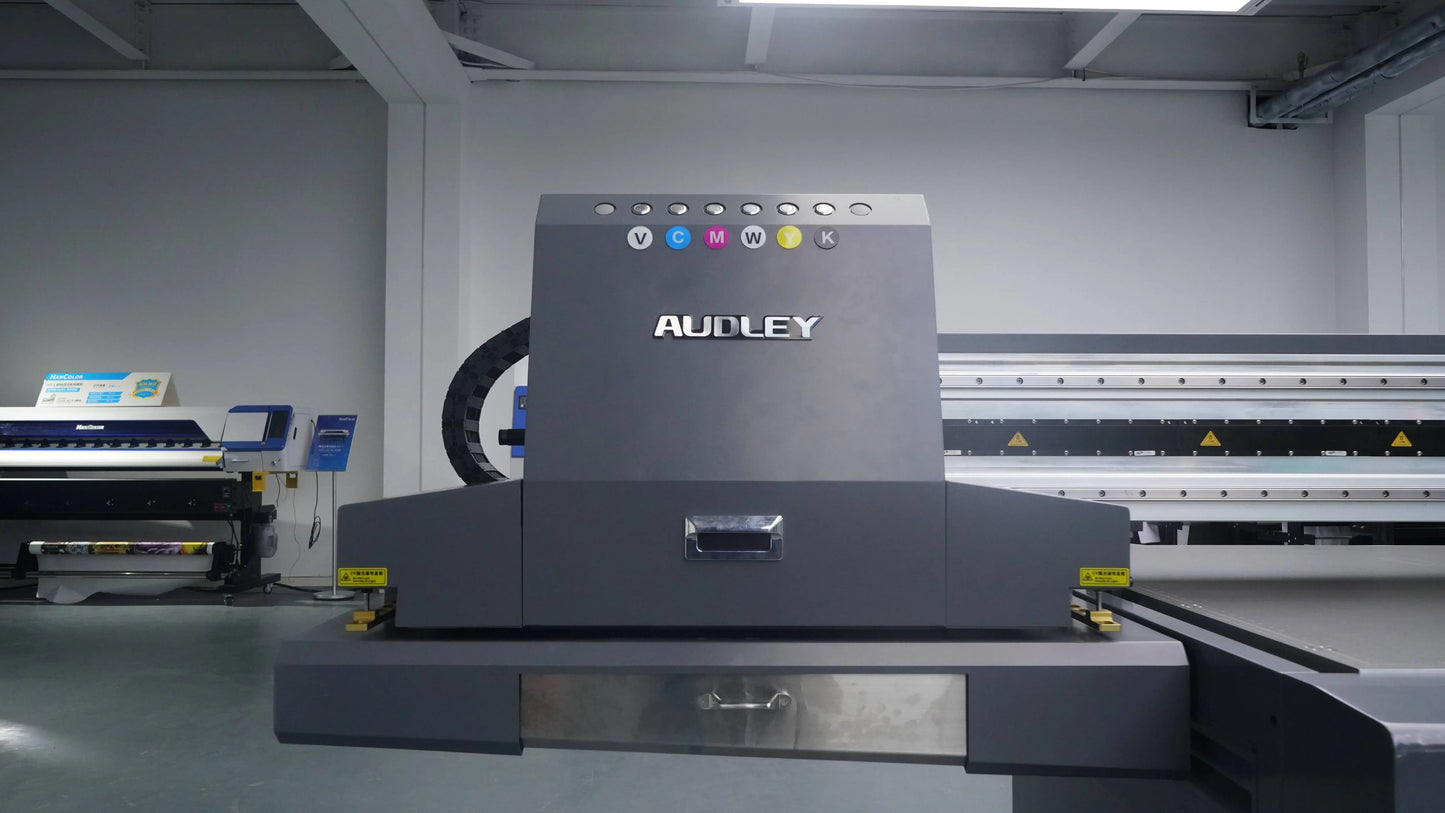

• Ricoh G6 Printheads — 2 to 12 Configurable — Precision staggered-head array scalable from 2 to 12 heads. 6-color capability for photographic output with white and varnish layering.

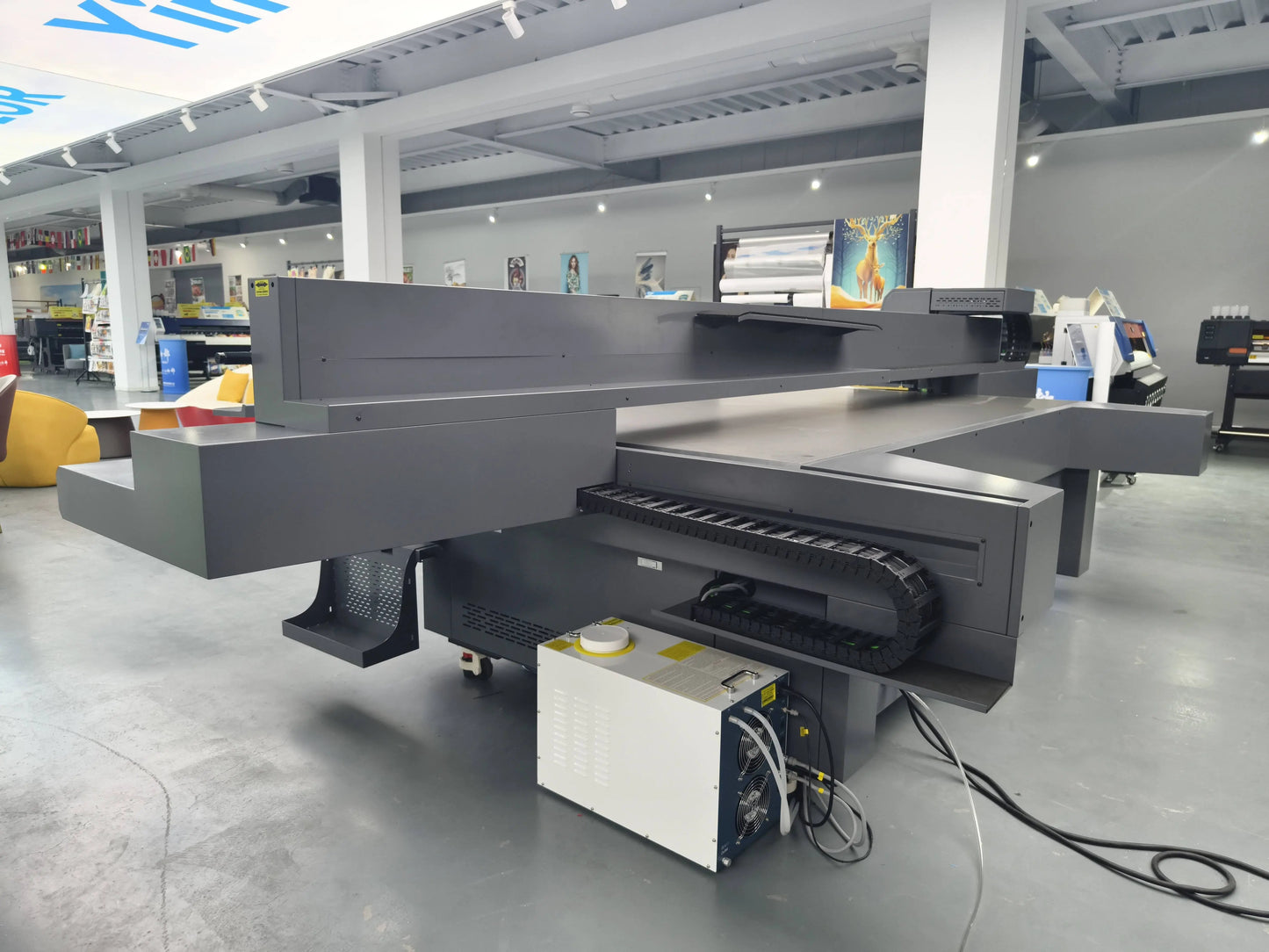

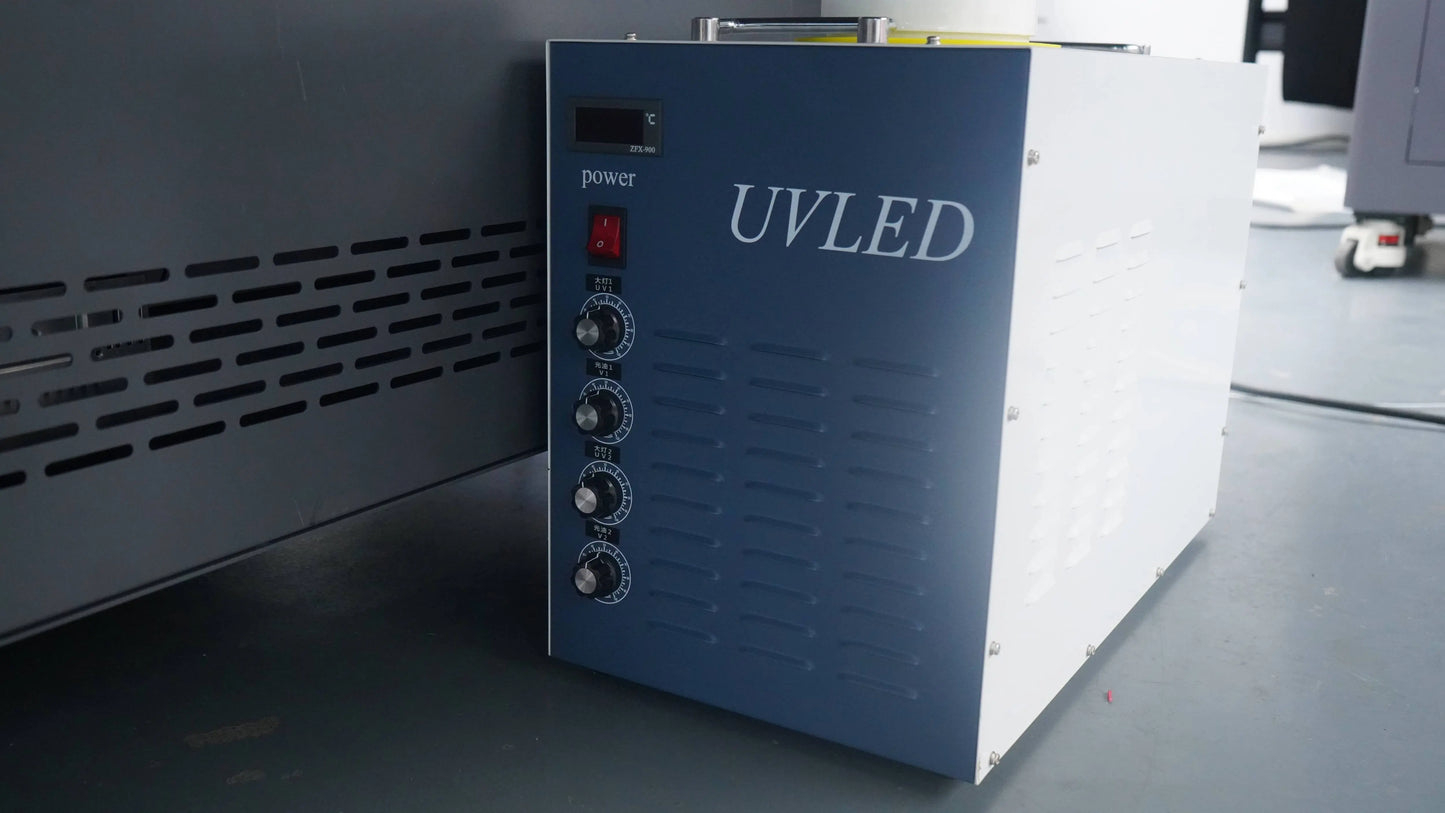

• Industrial Water-Cooled UV Curing — High-power water-chilled UV lamp system for instant curing at production speed. Consistent results across the full bed width.

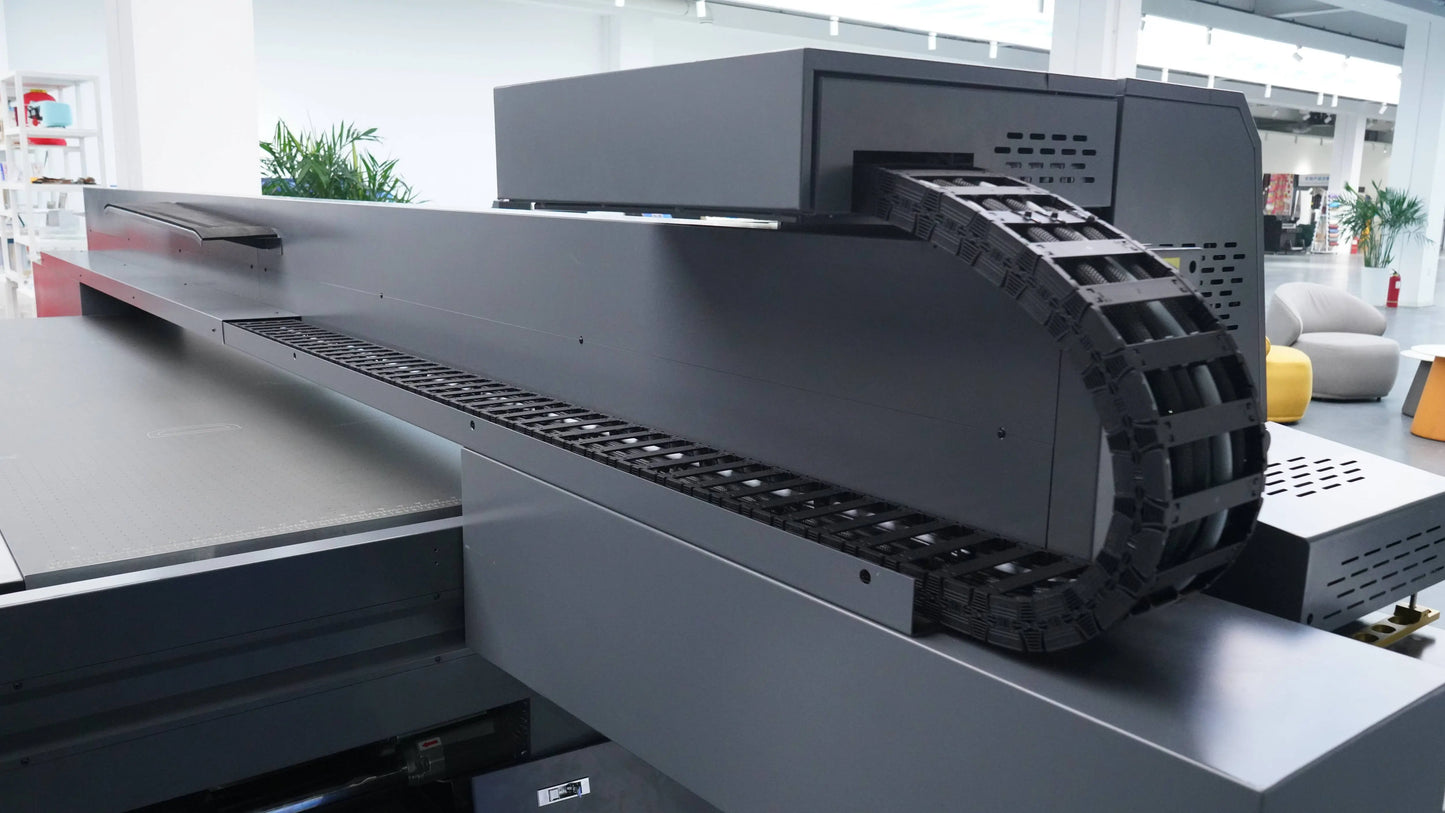

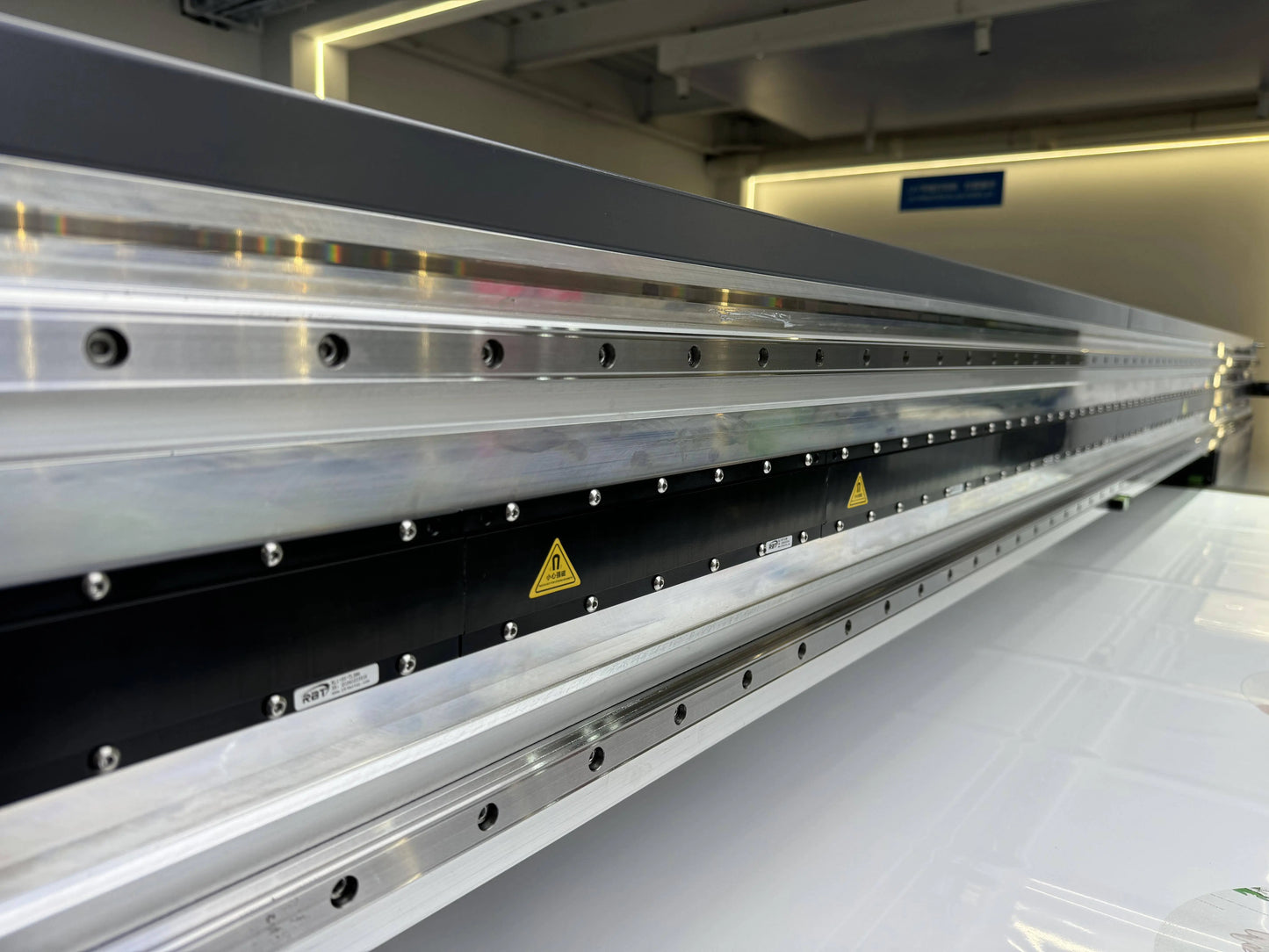

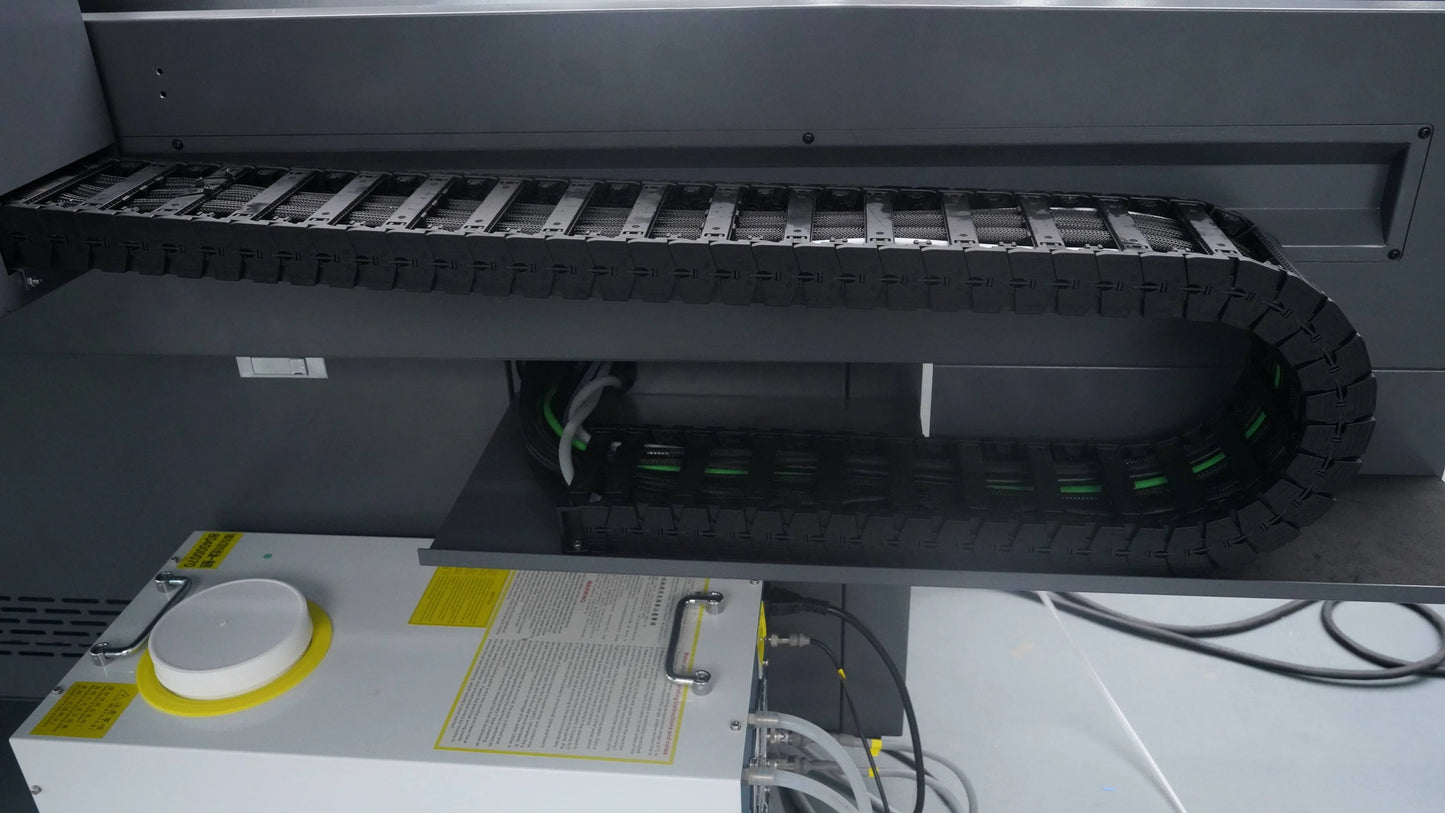

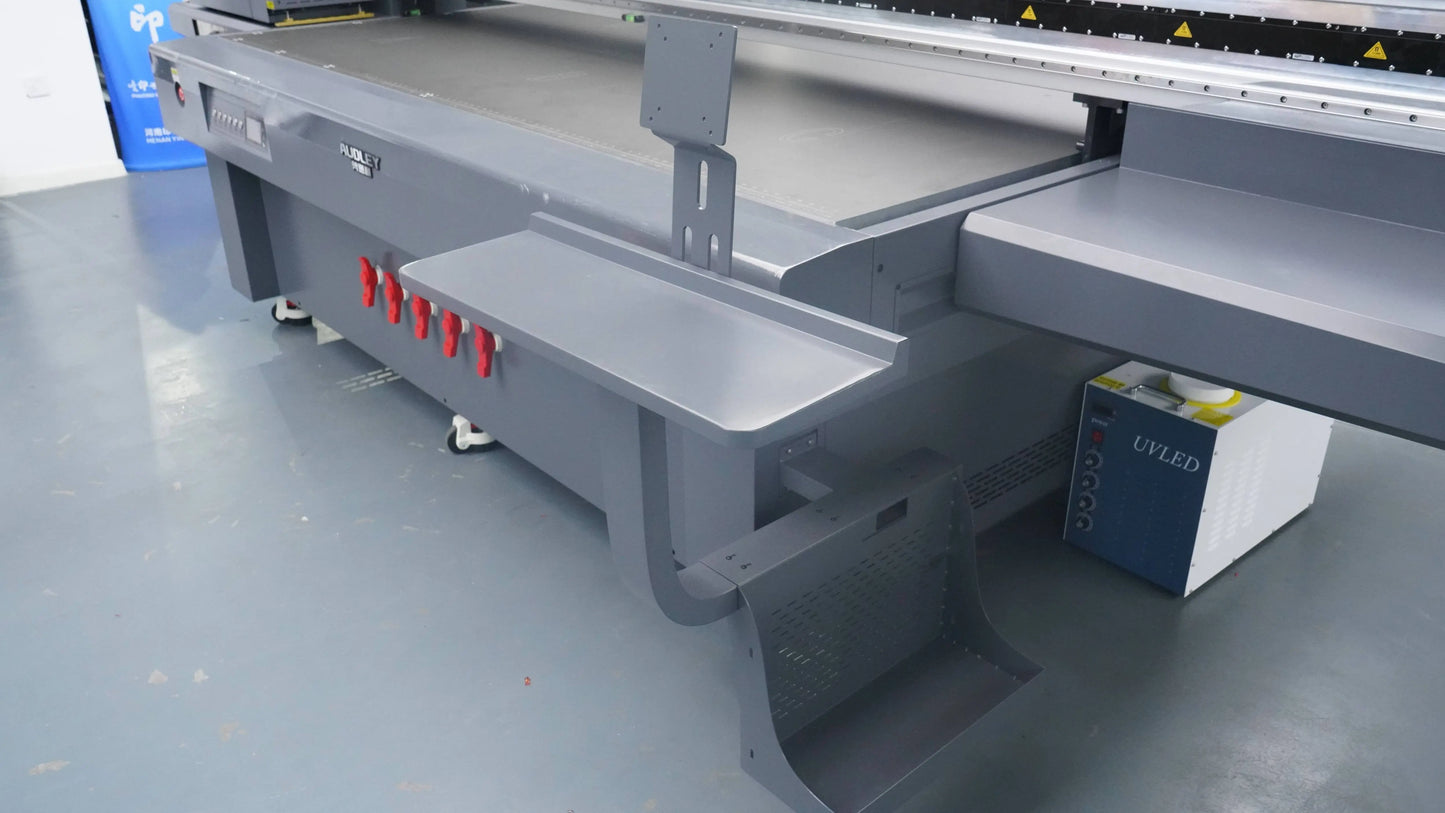

• High-Precision Motion System — Heavy-duty silent guide rails and drag chains ensure smooth, stable operation at industrial production speeds.

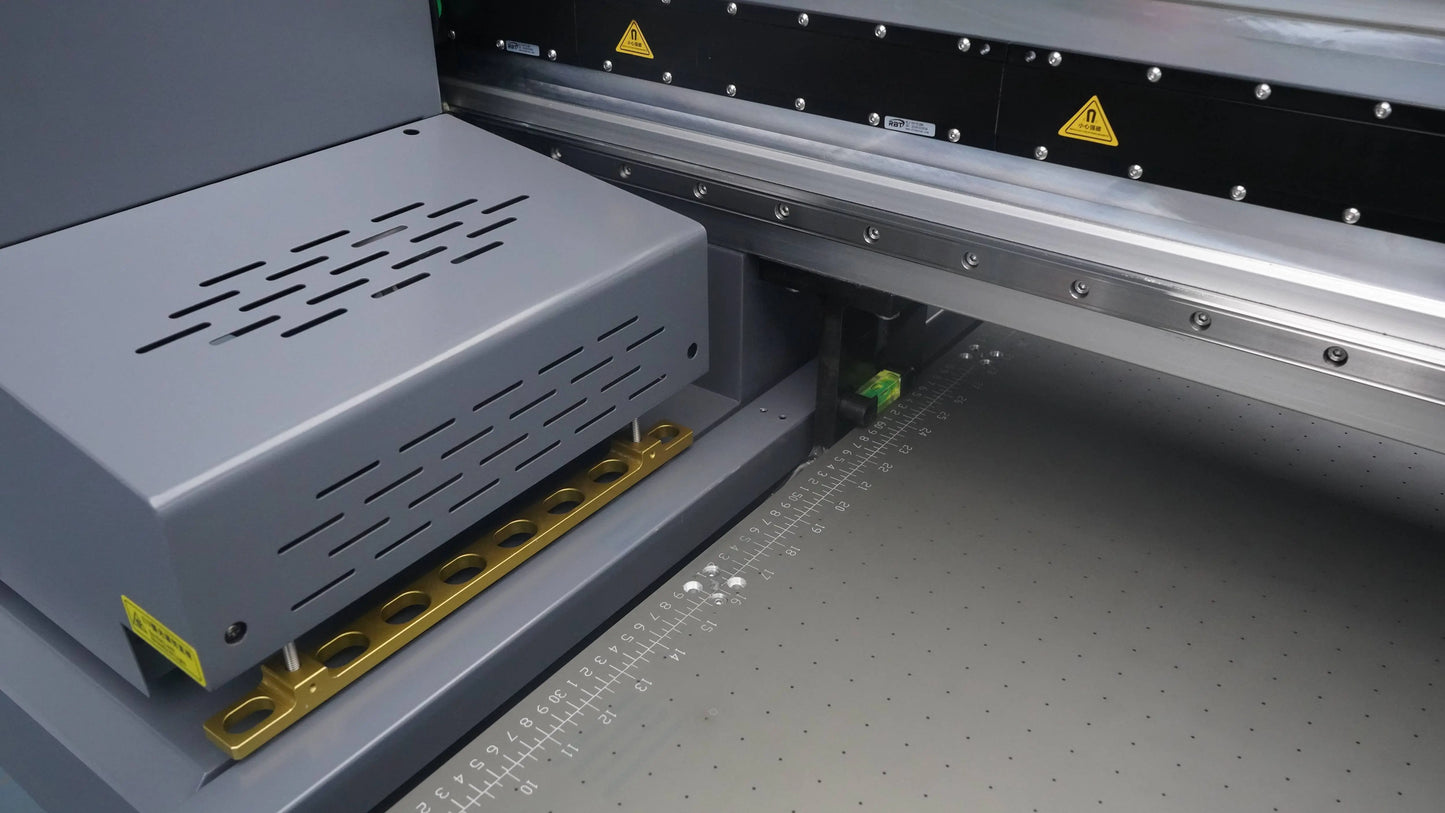

• Infrared Anti-Collision Protection — Prevents printhead strikes and reduces downtime during continuous production runs.

Printer Specifications

• Model: UV2513

• Print Heads: Ricoh G6, configurable from 2 to 12 heads

• Control Board: Hanson industrial control system

• Print Area: 2500 × 1300 mm / 8.2 × 4.3 ft

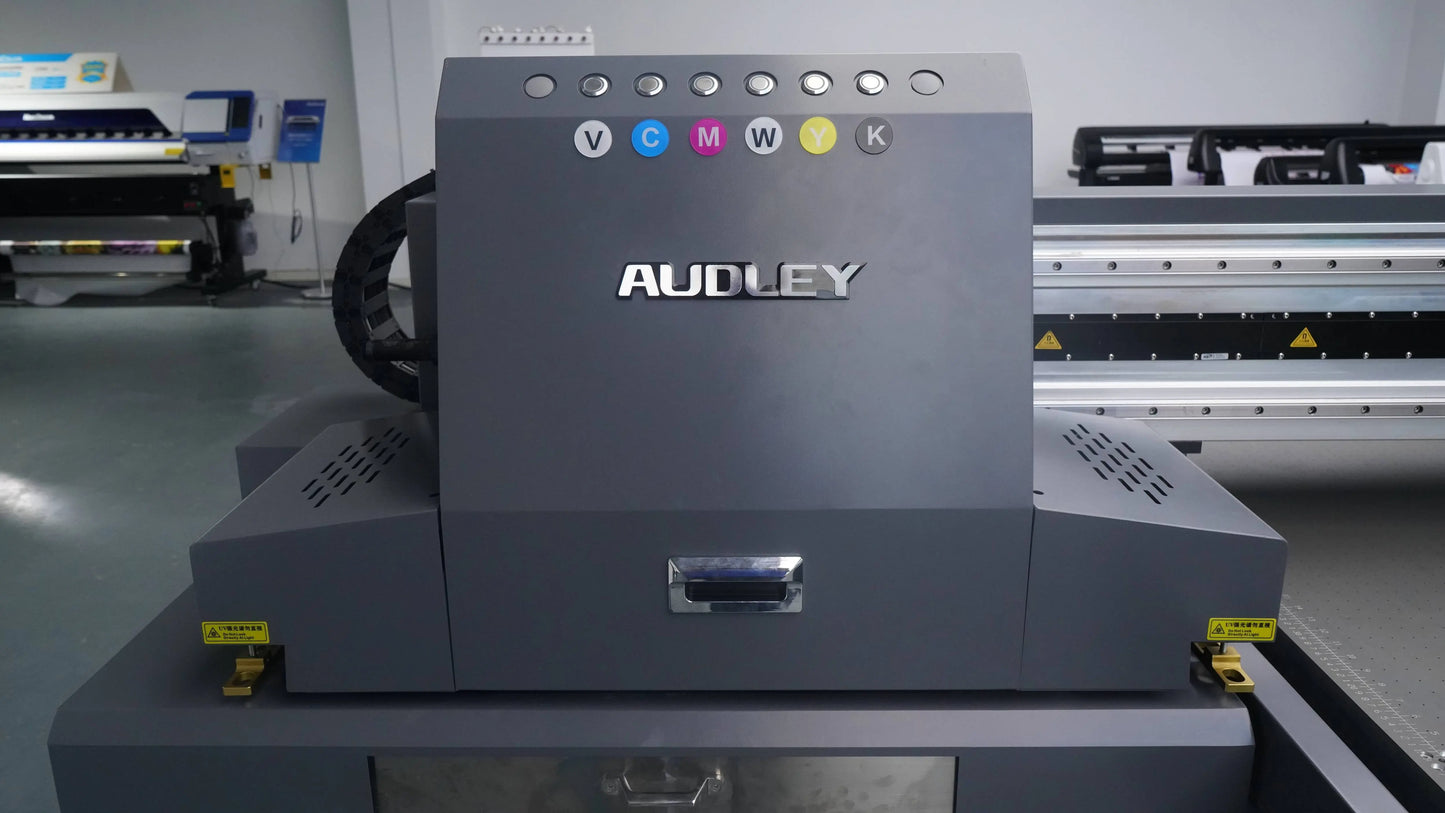

• Ink Type: UV-curable C/M/Y/K/W/V, including white and varnish

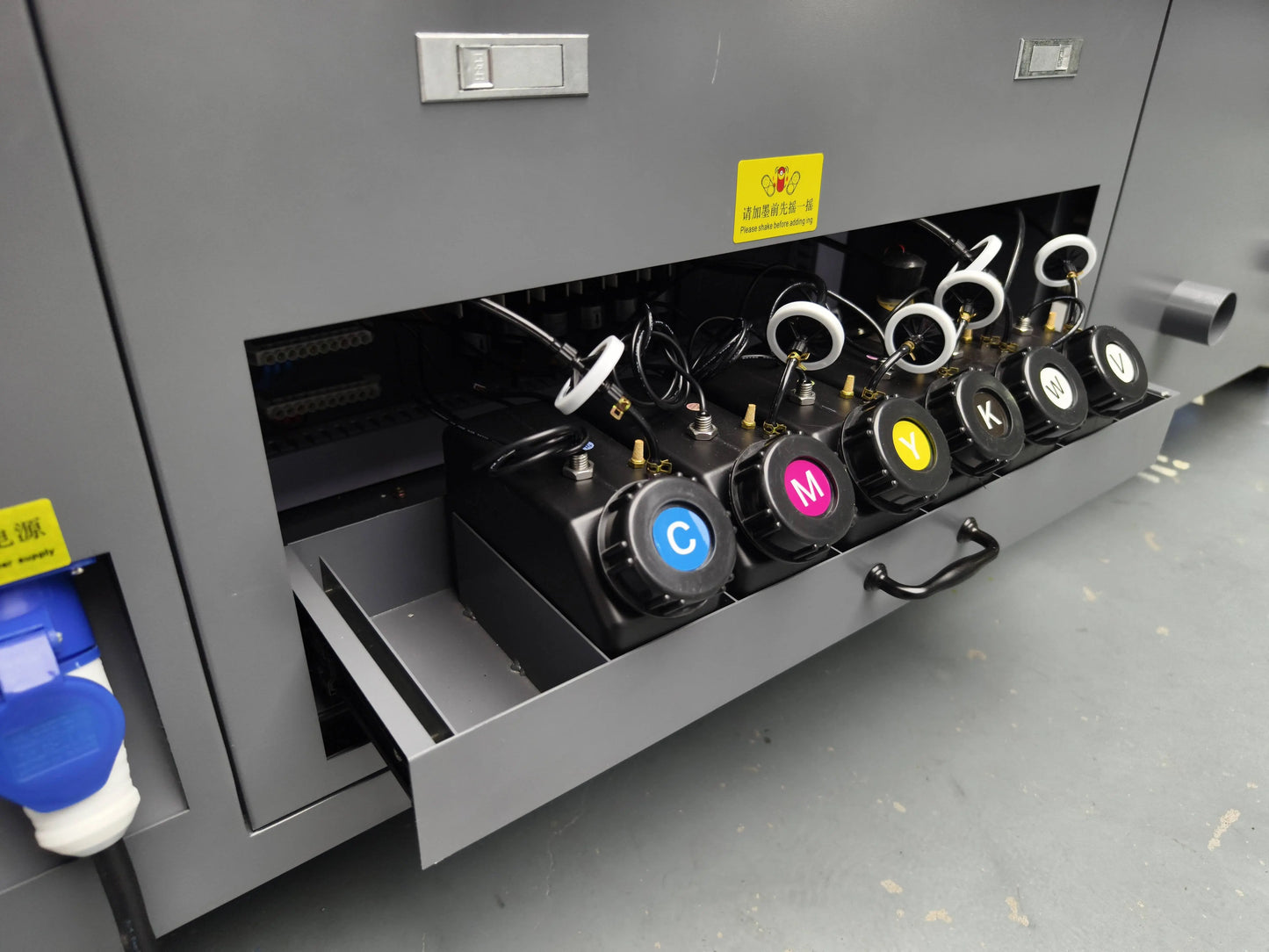

• Ink Supply System: Negative-pressure system with 1.5 L ink tanks

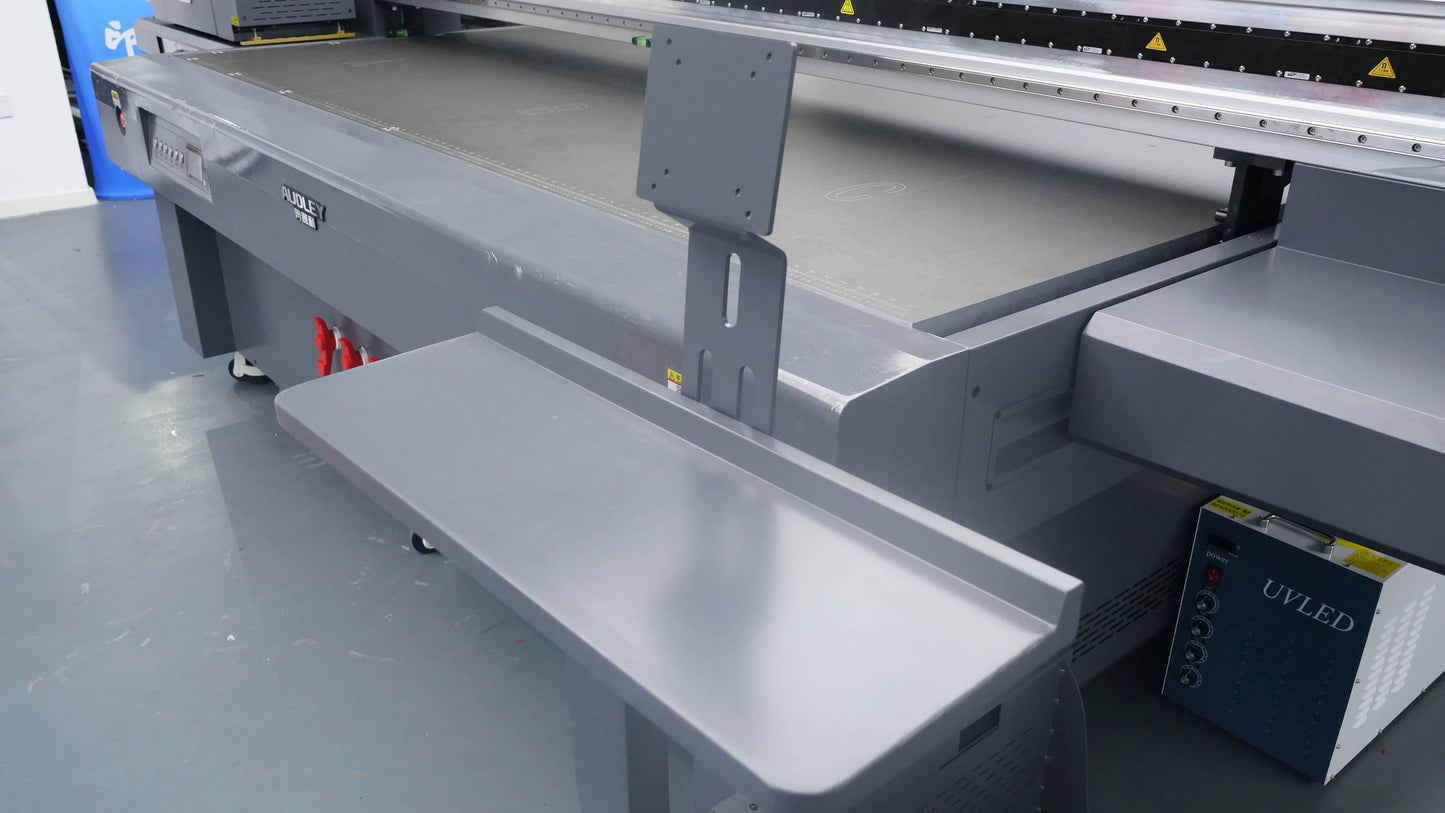

• UV Curing System: High-power, water-cooled UV lamp


Print Speed

• Production Mode: 17 m²/h, 6-pass light feather

• Standard Mode: 10 m²/h, 8-pass

• High-Precision Mode: 7 m²/h, 8-pass deep


Physical & Electrical

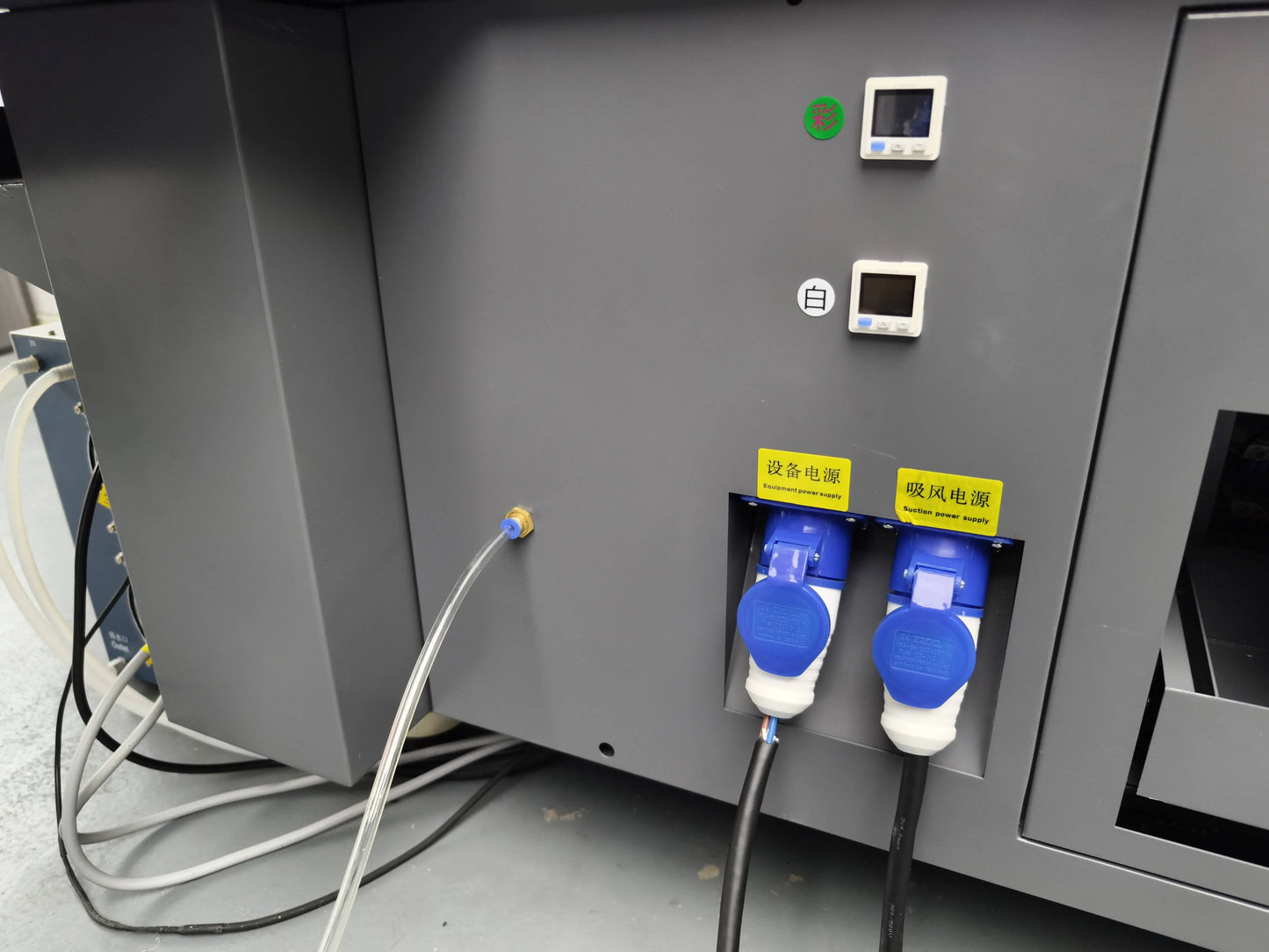

• Power Consumption: 6800W

• Voltage: AC 220V, 50/60Hz

• Machine Weight: 1560 kg / 3439 lbs

• Machine Dimensions: 4535 × 2175 × 1600 mm

• Packing Size: 4995 × 2300 × 1860 mm

• Recommended Working Temperature: 20°C–30°C

• Recommended Humidity: 40%–60% RH


Configuration Note

• Print-head quantity can be configured from 2 to 12 heads

• Contact us for pricing and configuration recommendations based on your production needs


Warranty Coverage & Period
Supplier provides a one (1) year limited warranty for all products it manufactures. The warranty period shall be twelve (12) months from the date the equipment is activated. If installation is delayed due to Buyer, the warranty period will begin seven (7) days after shipment, regardless of installation date.
Warranty Exclusions
The following components are excluded from warranty coverage: printhead, nozzles, ink bottles, secondary ink tanks/cartridges, ink sacs, dampers, ink tubes, capping station (suction cap), ink suction nozzles, printhead cables, white ink mixer/splitter, and the complete ink system.
Additional exclusions apply to:
Damage due to improper operation, unstable voltage, or natural disasters.
Unauthorized disassembly, modification, or replacement of parts.
Use of non-Supplier-approved consumables (including inks) that cause or contribute to equipment failure.
Equipment relocation without Supplier’s prior written permission.

Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.
