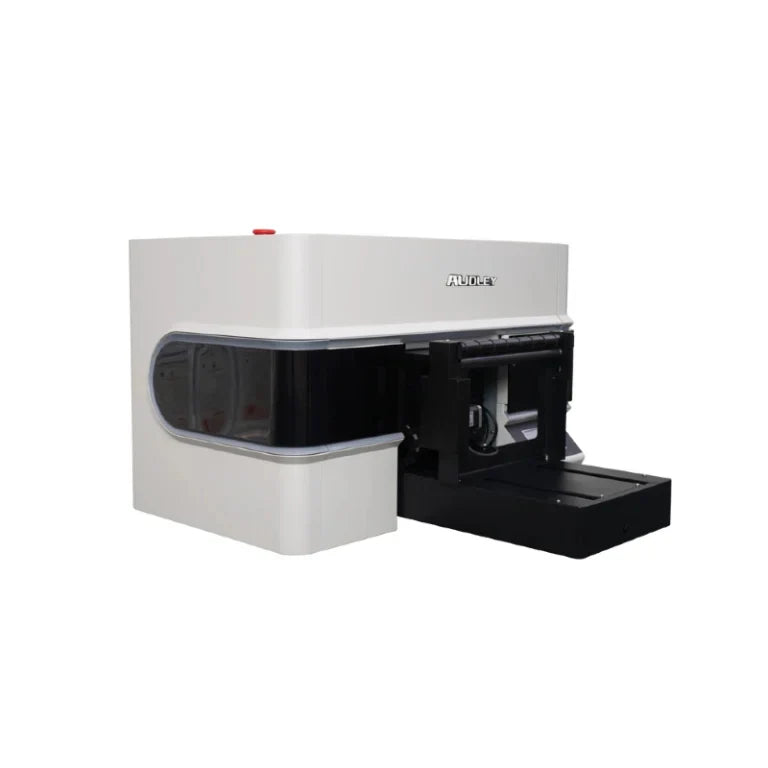

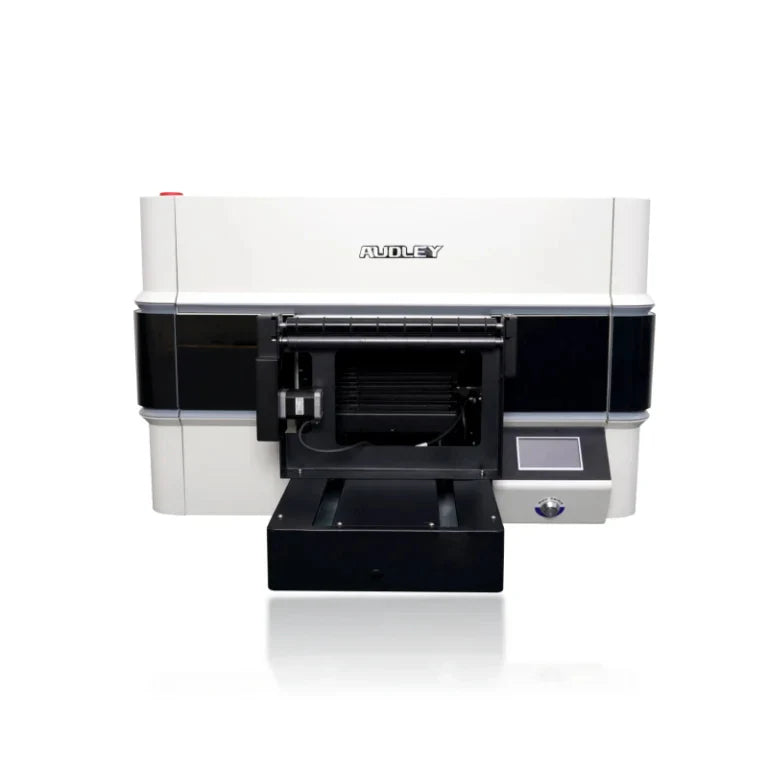

Audley 1 Printhead (i3200-HD) A3+ UV Flatbed Printer

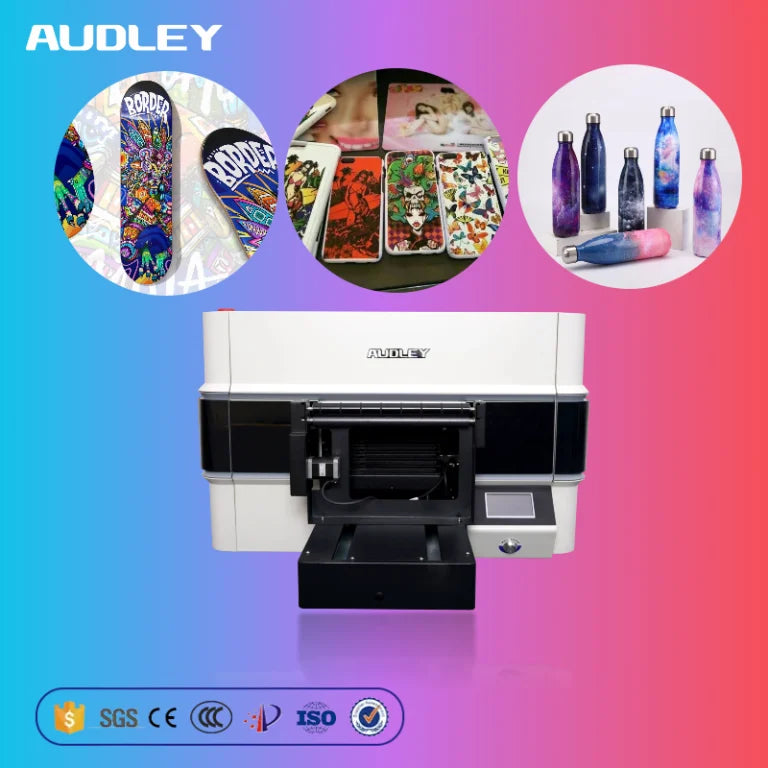

Print on almost anything: the AUDLEY ADL03B01 A3+ UV Flatbed Printer puts an angled Epson i3200-HD head and a 600-DPI vision camera over a 300 × 470 mm bed — flat goods, objects up to 90 mm thick, even cylinders from 25 …
$7,499.00
In stock, ready to ship
This equipment is sold through our sales team. Call us to place an order or get a quote.
Call 626-567-5577Pickup available at DTF OneStop Open Mon–Fri Pickup 10 AM – 3 PM
Usually ready in 24 hours
19844 Quiroz Court, Unit BCity of Industry, CA 91789United States
Ships in 1 business day In stock in Los Angeles
US-Based Hour Tech Support Real techs, real answers
1-year warranty Parts stocked in the US
Sold through our sales team 626-567-5577
Product videos
Watch It Run
Real footage of the A3+ UV flatbed printer in action.
Flat, Thick, or Round.
Take a closer look at the A3+ flatbed that prints on almost anything you can set on its table.

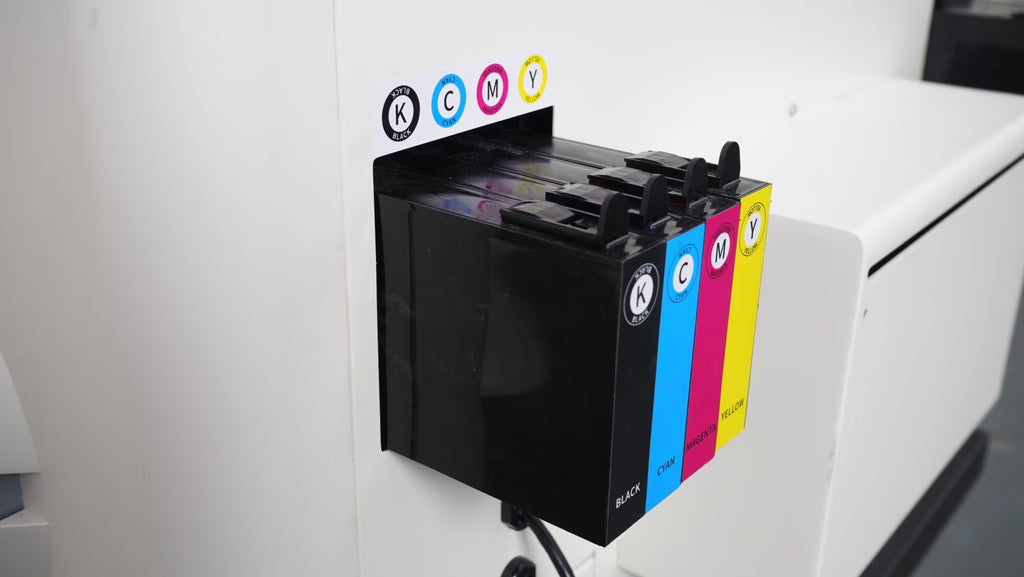

A single angled Epson i3200-HD head lays down CMYK, white and varnish at higher dot density, with white-ink circulation keeping the opaque layer stirred lining every layer up to the millimeter.

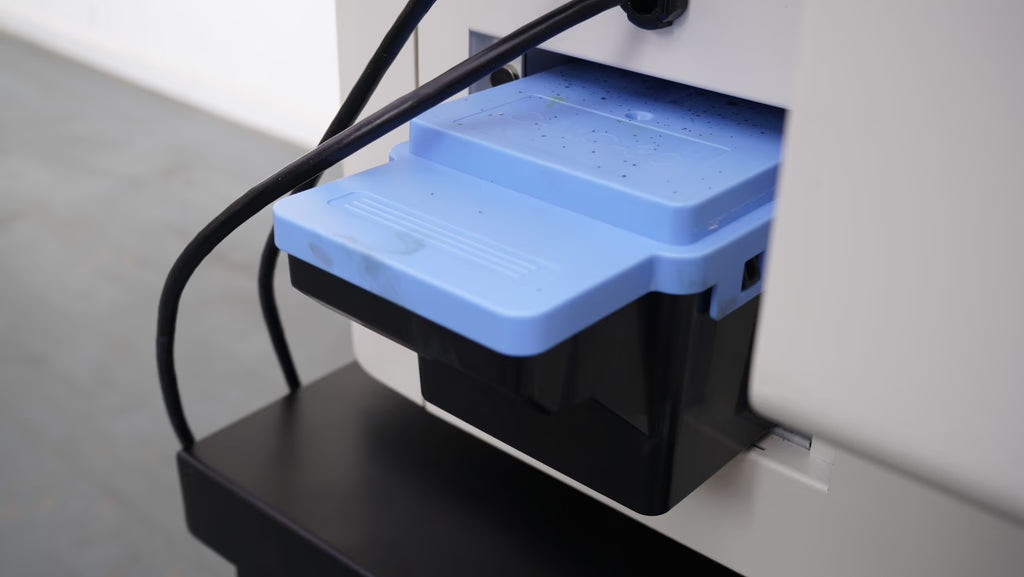

The bed takes objects up to 90 mm thick — or cylinders from 25mm * 80 mm — while an infrared beam guards the printhead from collisions and the solid waste-ink cartridge keeps maintenance spill-free.
View Tech Specs
Ink System
CMYK + White + Varnish
Print Bed
A3+ Flatbed Table
Applications
Raised-Texture Output
Clean Ops
Solid Waste-Ink Tank
Guided by Vision.
Vision camera scans the bed and aligns artwork to each object — no jigs, no guesswork, layer over layer in perfect register.
An infrared beam guards the printhead against collisions with taller objects, the cover pauses the job the moment it opens, and low-ink detection stops printing with an alarm instead of ruining the run.
HIWIN silent guides and a multi-language touchscreen keep daily operation smooth, with ICC color control and PrintExp RIP included.
Why Choose the ADL03B01?

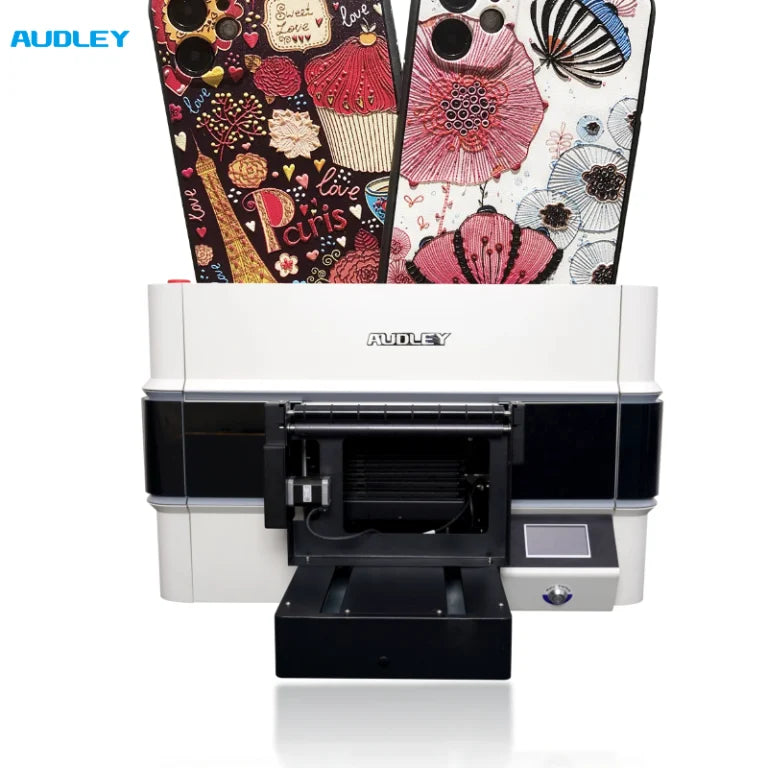

One Machine, Any Object — phone cases, bottles, awards, giftware: flat, thick or cylindrical, up to A3+ and 90 mm deep.
Set-and-Forget Reliability — white-ink circulation, automatic safety pauses and spill-free waste handling are all built in.
Backed in the U.S. — ships from our Los Angeles warehouse with a 1-year warranty, free training and US-Based Hour Tech Support.
Covered for the First Year
1-Year Full Coverage Warranty on all major machine components (excluding printheads and ink system components).
If anything fails, our Los Angeles team diagnoses it remotely and ships replacement parts straight from local stock — no overseas wait, no guesswork.
Trusted by print professionals across the U.S.
Free Training & US-Based Hour Tech Support
Every machine includes free remote setup and operator training — we get your team printing, not just unboxing.
After that, real technicians answer on our US-Based Hour Tech Support line, backed by parts on the shelf in Los Angeles.
Technical Specifications
Model
– ADL03B01
Print Head
– 1 × Epson i3200-HD (angled)

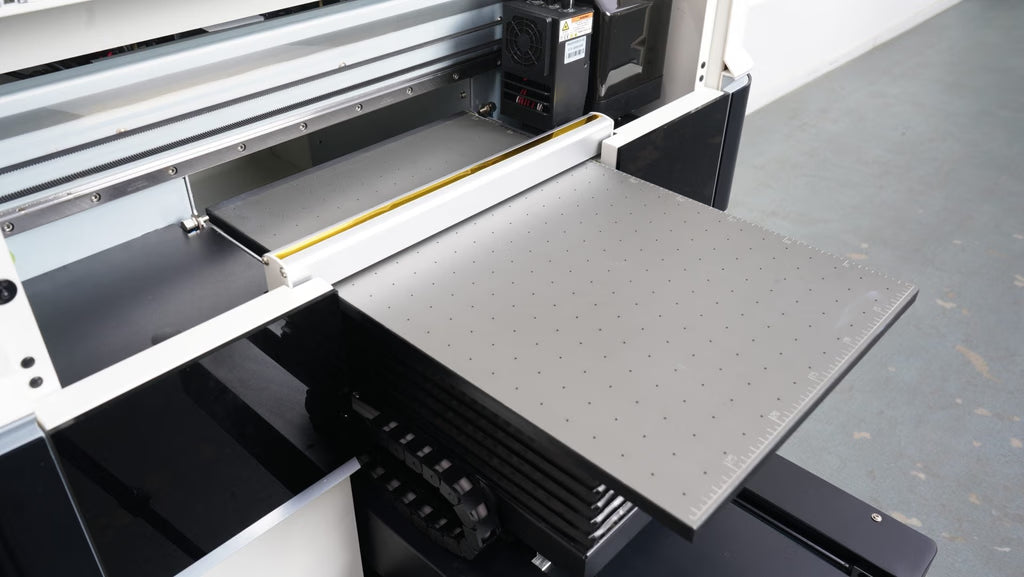

Flatbed Area
– 11.8 × 18.5 in (300 × 470 mm, A3+)
Max Object Thickness
– 3.5 in (90 mm)
Cylinder Diameter
– 1–3.1 in (25–80 mm)
Vision System
– 600 DPI camera, full-bed scan
Ink
– CMYK + White + Varnish (UV-curable)

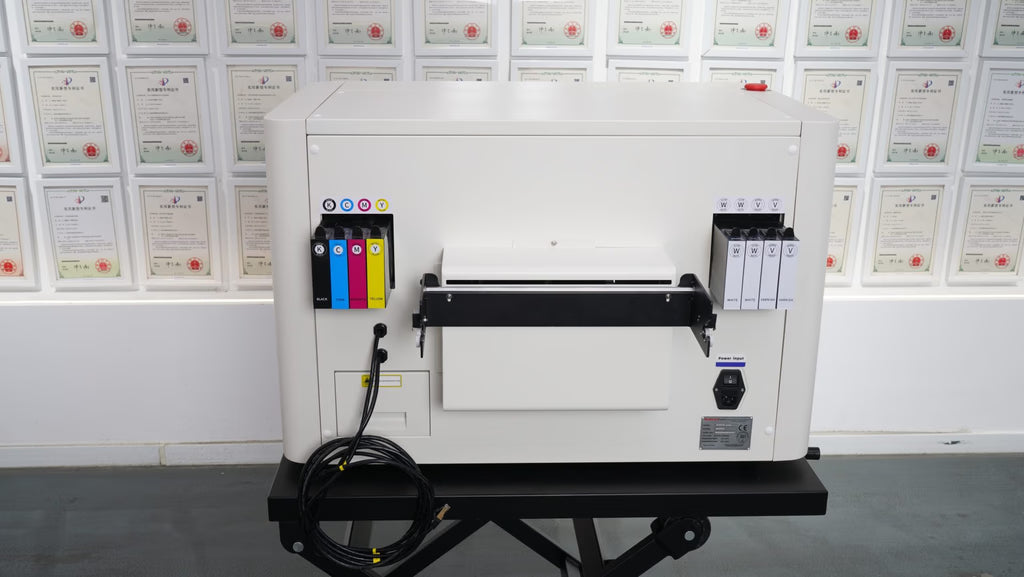

Ink Tanks
– 250 ml × 6
Curing
– UV LED with fan cooling
Waste Ink
– 1 L solid-state cartridge
RIP Software
– PrintExp (PP); Flexi / Riin / Mengtai optional
File Formats
– TIFF, JPEG, BMP, PDF
Data Transfer
– Gigabit Ethernet
Voltage
– AC 220V 50/60Hz
Working Environment
– 59–86°F (15–30℃)
Machine Size
– 33.9 × 22.4 × 38.6 in (86 × 57 × 98 cm)
Weight
– 198 lb (90 kg)
FAQs
Answers to the questions we hear every day from print shops.
Yes — every printer includes remote setup and operator training with our LA techs, plus lifetime support.
Supplies ship same-day before 1PM PT. Machines ship freight within 1-2 business days after testing.
Yes — 0% down options through our financing partners. See the Financing page or ask our team.
Yes, free self-pickup at 19844 Quiroz Court, Unit B, City of Industry, CA — Mon-Fri 10AM-3PM.
US-stocked parts and remote diagnostics. Most issues resolve within one business day.
