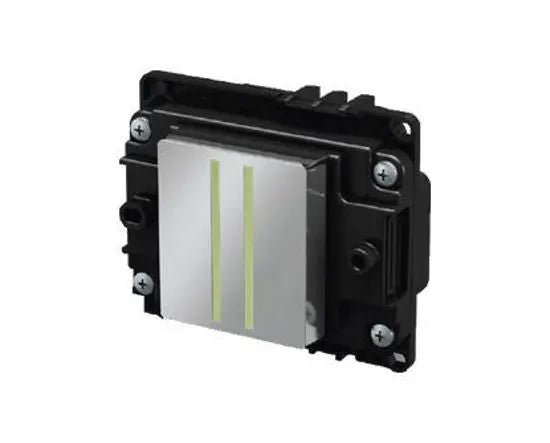

Epson I1600-U1 UV DTF Print Head – Compact Precision for Industrial UV Printing

The Epson I1600-U1 UV DTF Print Head offers industrial-grade precision and reliability in a compact, cost-effective design. Built with Epson's advanced PrecisionCore® MicroTFP technology, this MEMS print head delivers consistent, high-resolution output with Variable Droplet Technology (VSDT) for smooth gradients and crisp details.

With 1,600 nozzles and support for up to 4 ink channels, it's ideal for UV-curable inks used in direct-to-film (DTF), labels, packaging, promotional items, and hard surface printing. Its smaller footprint makes it perfect for mid-range UV printers that require fine image quality without the higher cost of dual-head systems.

⚠️ Please Note: All sales on print heads are final. No returns or exchanges will be accepted. Please confirm compatibility before purchasing.

Key Features:

• Nozzle Count: 1,600 (4 rows x 400 nozzles each)

• Print Resolution: 300 npi per row, up to 600 dpi (2-row use)

• Variable Droplet Sizes:

  • Binary: 5 pL at 43.2 kHz

  • 3-level grayscale: 6 pL, 12.5 pL at 21.6 kHz

  • 4-level grayscale: 3.8 pL, 6.2 pL, 9.3 pL

• Ink Compatibility: UV-curable inks (viscosity 5–7 mPa·s)

• PrecisionCore® MicroTFP: High durability with fine droplet placement

• Dimensions: 69.1 × 59.4 × 35.6 mm (2.7 × 2.3 × 1.4 inches)

• Weight: ~80–82 g

• Country of Origin: Japan

Applications:

• UV DTF transfer film printing

• Custom packaging and labels

• Acrylic, glass, and metal surface decoration

• Roll-to-roll and flatbed UV printer integration
