• 300% Faster Output – Dual on-demand piezo print heads deliver production speeds three times faster than the TxF150-75, perfect for high-volume workflows.

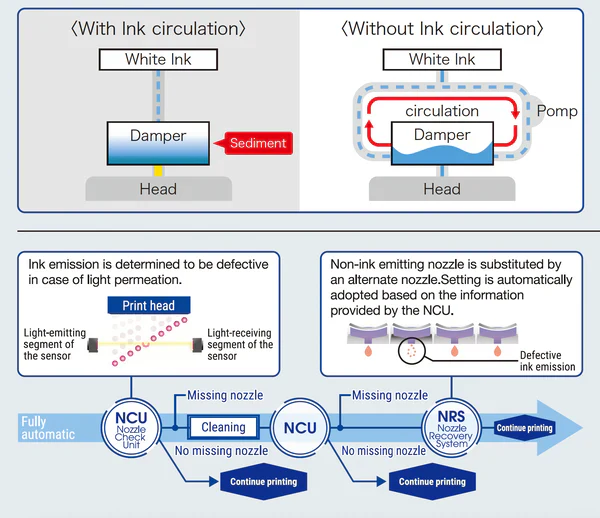

• Unmatched Reliability – Automatic nozzle checks, active recovery, and Mimaki’s advanced white ink circulation system keep your printer running with minimal downtime.
• Certified Ink System – Uses Mimaki’s OEKO-TEX ECO PASSPORT certified inks (CMYK + White), ensuring safe, eco-friendly printing that meets international compliance standards.
• High-Capacity Media Handling – Supports rolls up to 31.9 inches wide and 99 lbs, giving you flexibility for large or long production runs.
• Seamless Workflow Integration – Comes with RasterLink7 RIP software and Mimaki Remote Access tools for precise job control and cloud-based monitoring.
• Professional Training & Support – Backed by a 1-year manufacturer warranty, nationwide Mimaki-certified service centers, and optional on-site installation and training.

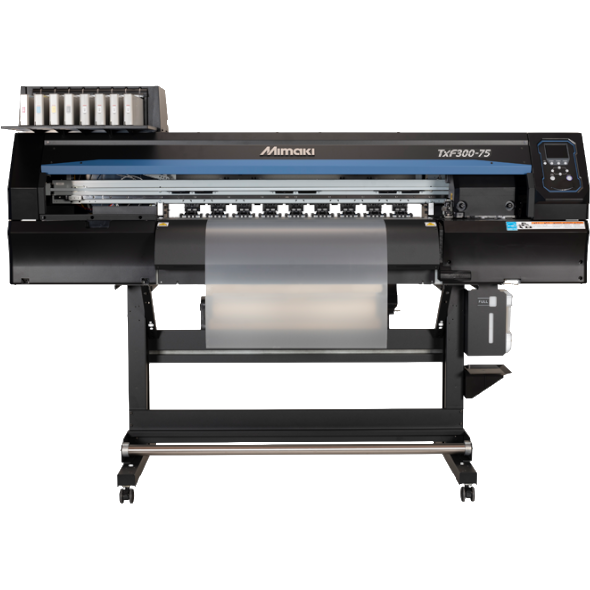

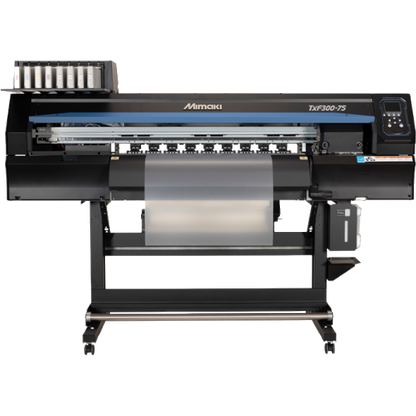

Printer – Mimaki TxF300-75 DTF Printer

• Printer Model: Mimaki TxF300-75
• Print Head: 2 On-demand piezo print heads
• Print Resolutions: 720×720 dpi, 1080×1440 dpi, 1440×1440 dpi
• Print Speed: Up to 300% faster than TxF150-75
• Ink Type: Mimaki PHT50 Heat Transfer Pigment Ink (CMYK + White)
• Ink Pack Capacity: 600ml (500ml for white ink)
• White Ink Circulation: Mimaki Circulation Technology v2
• Max Print Width: 31.5 in (800 mm)
• Max Media Width: 31.9 in (810 mm)
• Max Media Thickness: 1.0 mm or less
• Max Roll Weight: 99.2 lbs (45 kg)
• Interface: Ethernet 1000 BASE-T / USB2.0 Hi-speed
• Power Requirements: AC100–120V / 200–240V ±10%, 50/60Hz ±1Hz
• Power Consumption: 1.0 kW (100V) / 1.4 kW (200V)
• Dimensions (W × D × H): 77.4 × 27.6 × 54.8 in (1,965 × 700 × 1,392 mm)
• Weight: 277.8 lbs (126 kg)
• Software: RasterLink7 (included), Mimaki Remote Access (MRA), PICT Cloud Analytics
• Certifications: CE, FCC, VCCI, RoHS, OEKO-TEX®, Energy Star, REACH

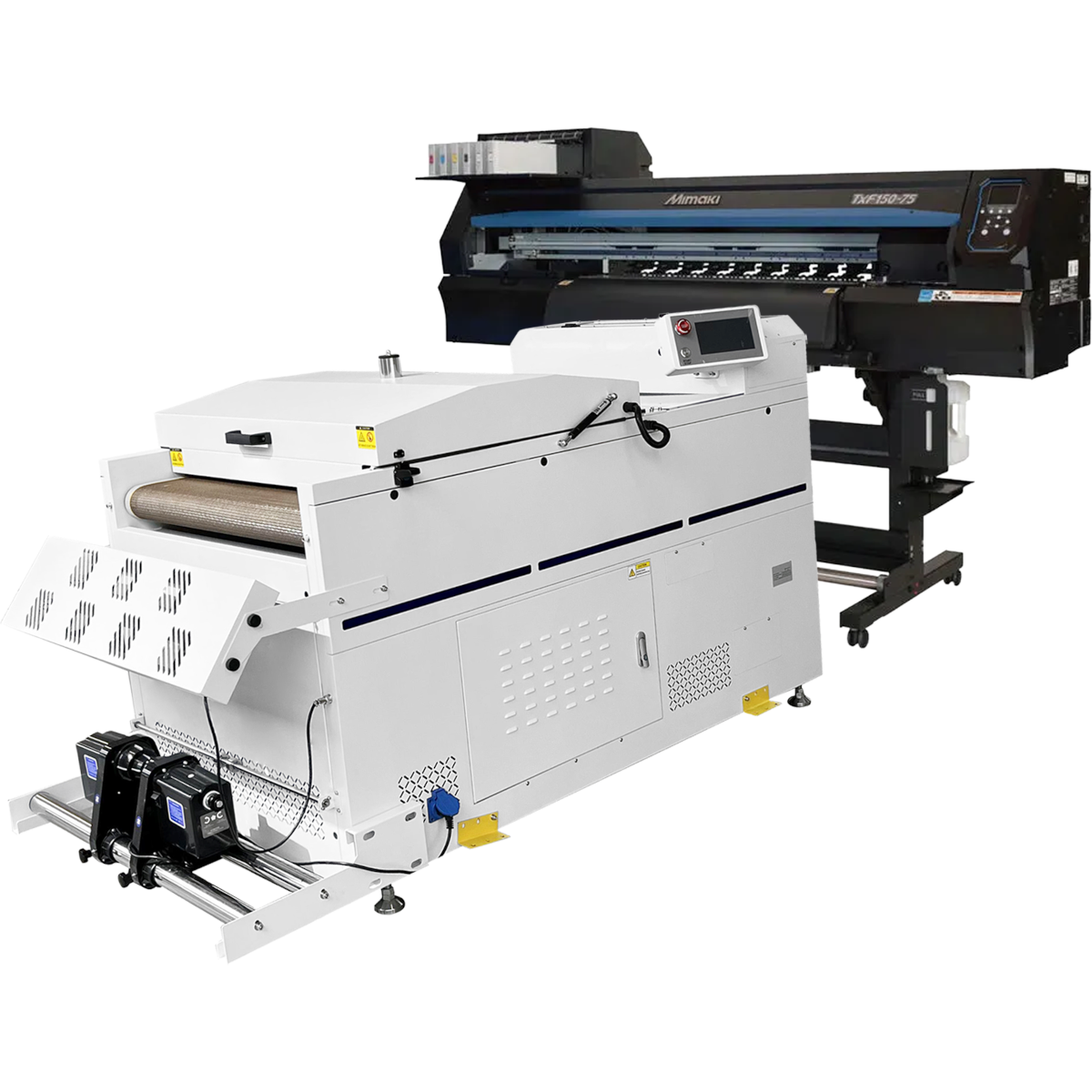

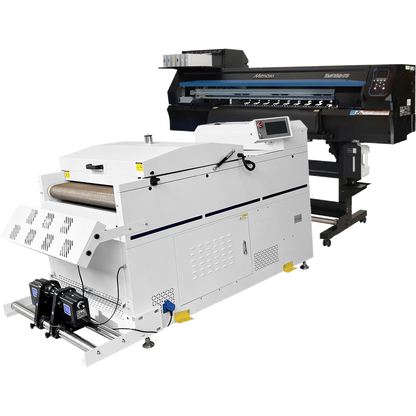

Shaker – Audley DF-800A Powder Shaker & Dryer

• Model: Audley DF-800A
• Working Width: Up to 24 in (60 cm)
• Heating Tubes: 5 × 805 mm (800W each)
• Power Consumption: 4,500 W
• Packing Size (W × D × H): 71 × 46 × 51 in (180 × 115 × 128 cm)
• Weight: 807 lbs (366 kg)

1-Year Manufacturer Warranty (Includes Parts & Labor): Backed by Mimaki’s nationwide service network, this warranty ensures your printer’s core components are protected for 12 months, reducing downtime and giving you confidence in long-term performance.

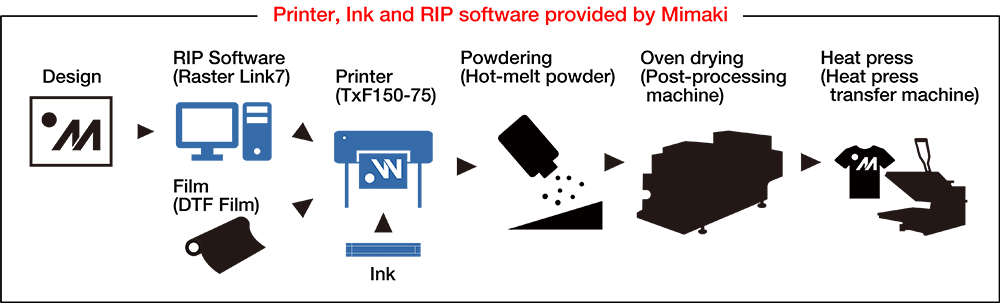

RIP Software: RasterLink7 (Included)

The included RasterLink7 RIP software makes managing print jobs straightforward and efficient. It offers advanced color management tools, smooth white/CMYK layering, and broad file format support. Operators can easily optimize print quality, adjust color profiles, and reduce ink waste all from an intuitive interface designed for both beginners and experienced users.

Cloud Monitoring & Management

Mimaki’s connected tools keep your production line running smoothly:

• MRA (Mimaki Remote Access): Monitor printer status, ink levels, and job progress in real time from a PC, tablet, or smartphone.

• PICT (Cloud Analytics & Management): Gain deeper insights with job tracking, performance data, and maintenance planning helping you reduce downtime and increase overall productivity.
