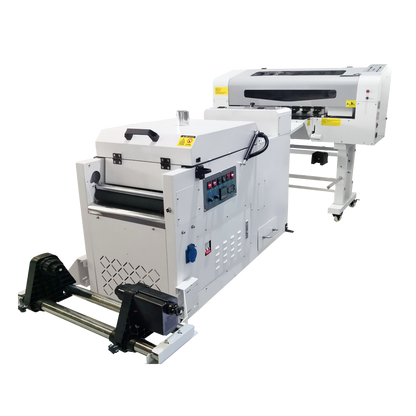

The AUDLEY S2030-3 A3 DTF Printer

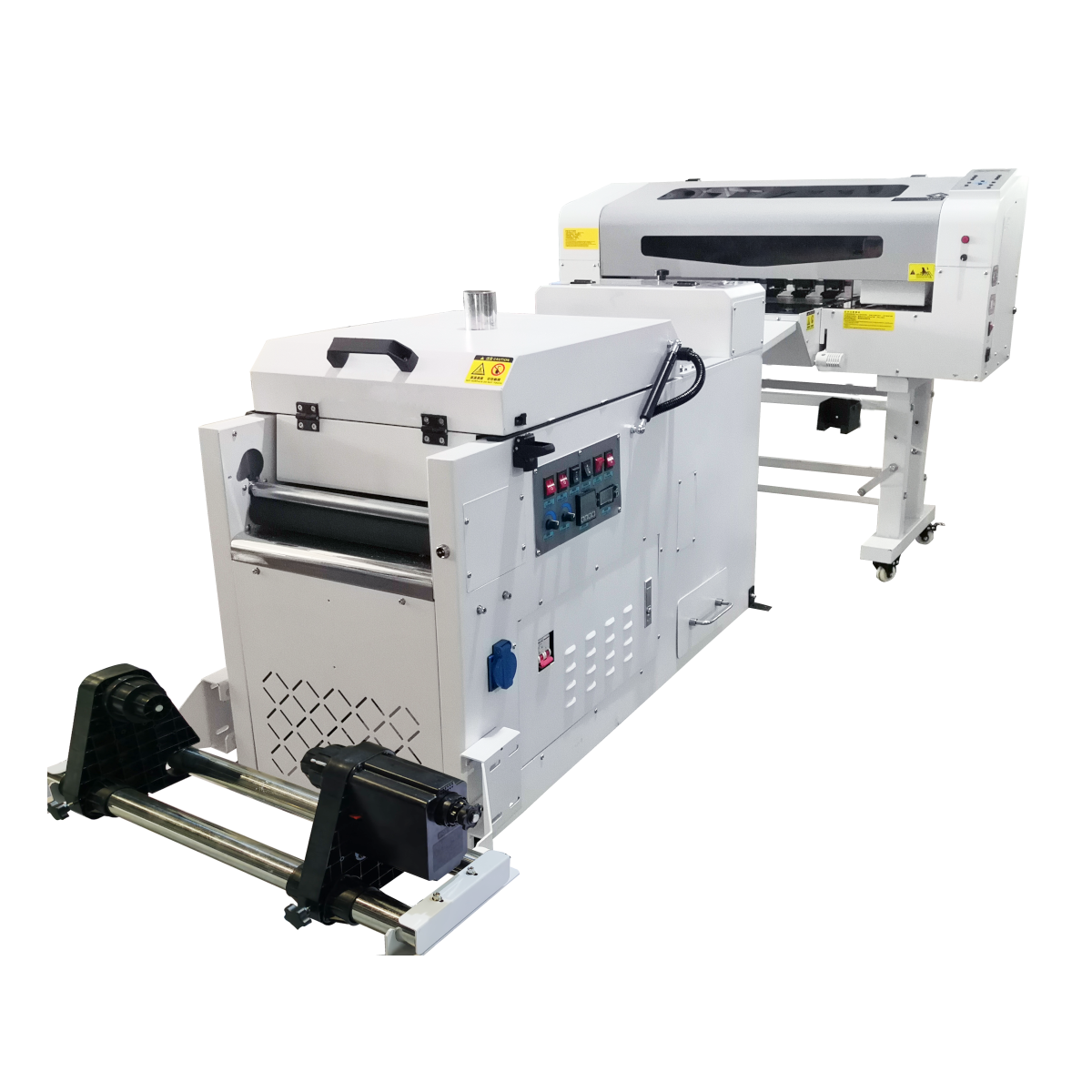

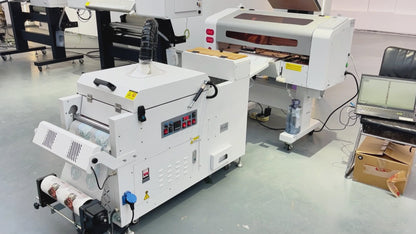

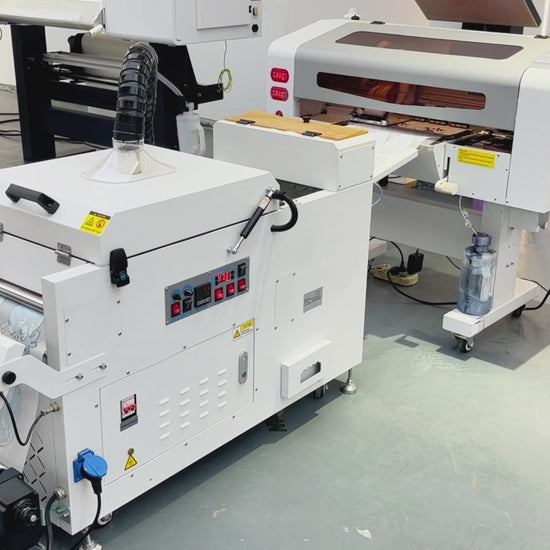

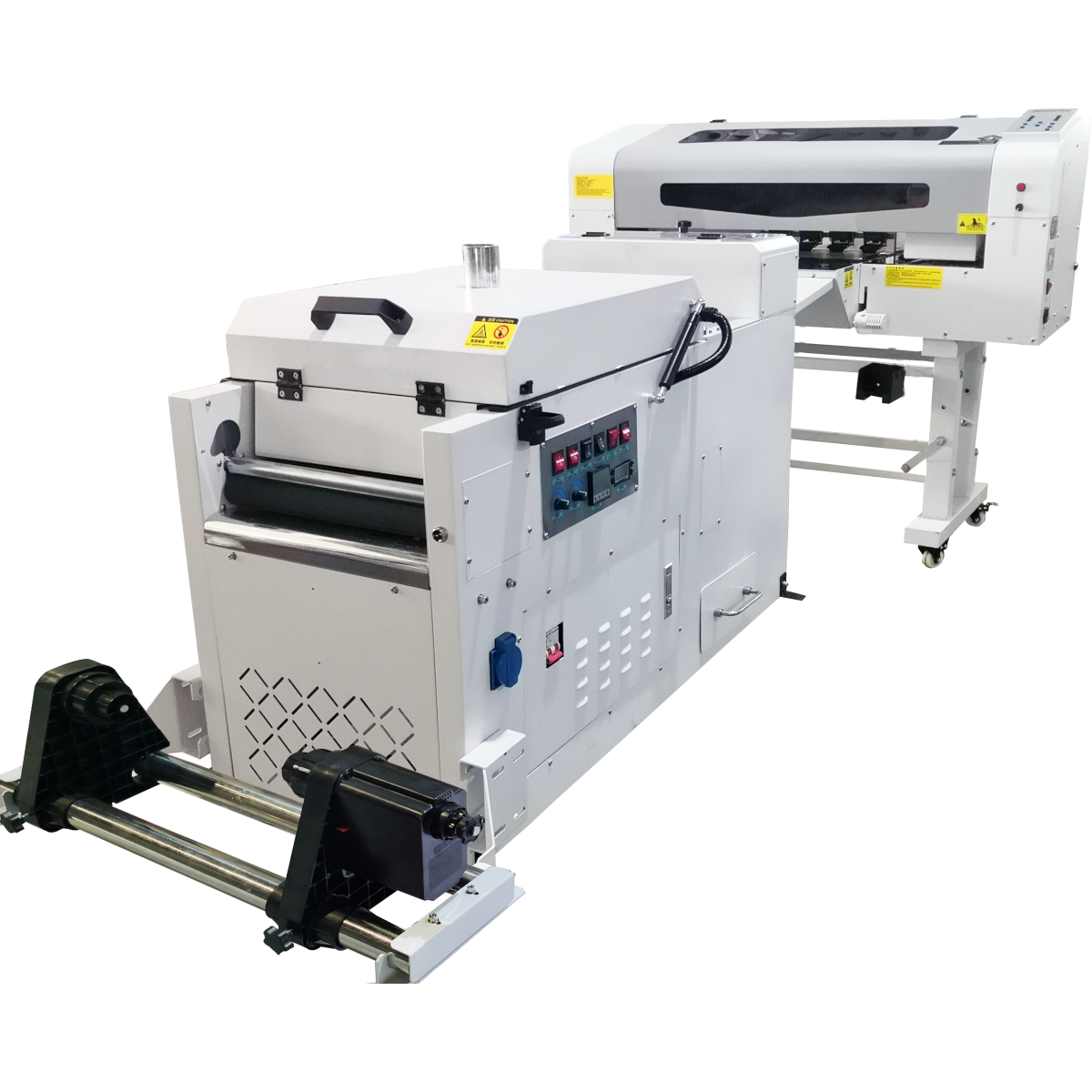

The AUDLEY S2030-3 DTF Printer, equipped with 2 Epson XP600 print heads, is designed for precision, efficiency, and high-quality textile printing. Paired with the DF-300 Powder Shaker, this setup ensures consistent, vibrant prints with automated powder application and curing, perfect for small to medium-scale production.
Why Choose This DTF Combo?
Professional-Grade Results at a Compact Size – Achieve sharp, vibrant, and durable prints up to 30cm wide, ideal for apparel, accessories, and custom products.
Balanced Speed & Quality – Multiple pass options let you optimize for fast output or detailed, high-resolution results depending on the job.
Seamless Workflow – The printer and shaker are designed to work together, with stable media handling, automatic powder application, and consistent curing for smooth, worry-free production.
User-Friendly Operation – Easy setup, reliable ink flow, and automated features mean less downtime and faster learning for new operators.
Cost-Effective Production – Reduced misprints and efficient powder usage help maximize profitability on every order.
Built to Last – Durable construction and precision engineering ensure reliable, long-term use even under heavy workloads.
In-Depth Product Features

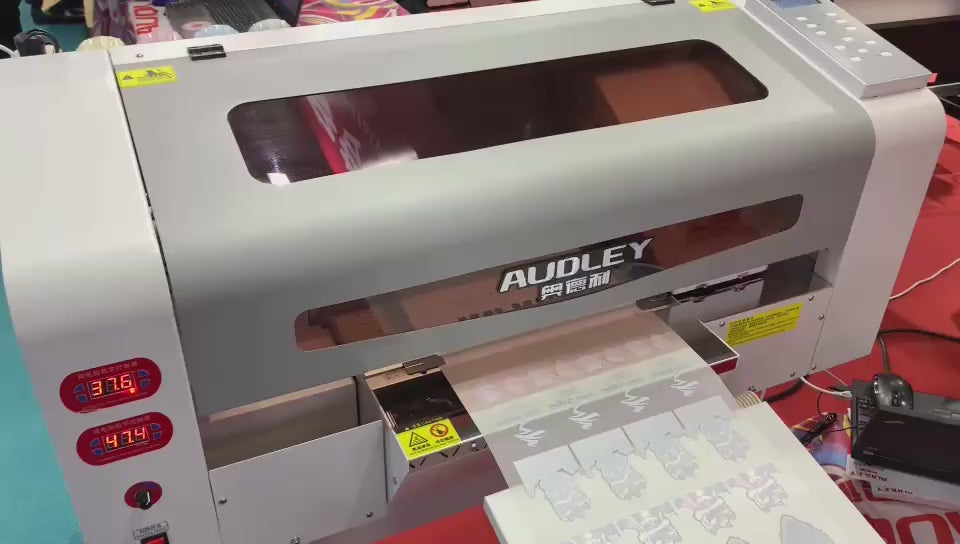

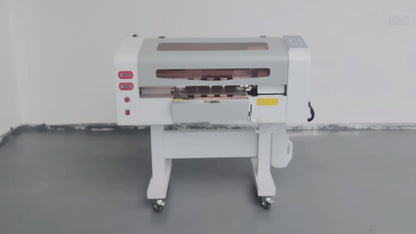

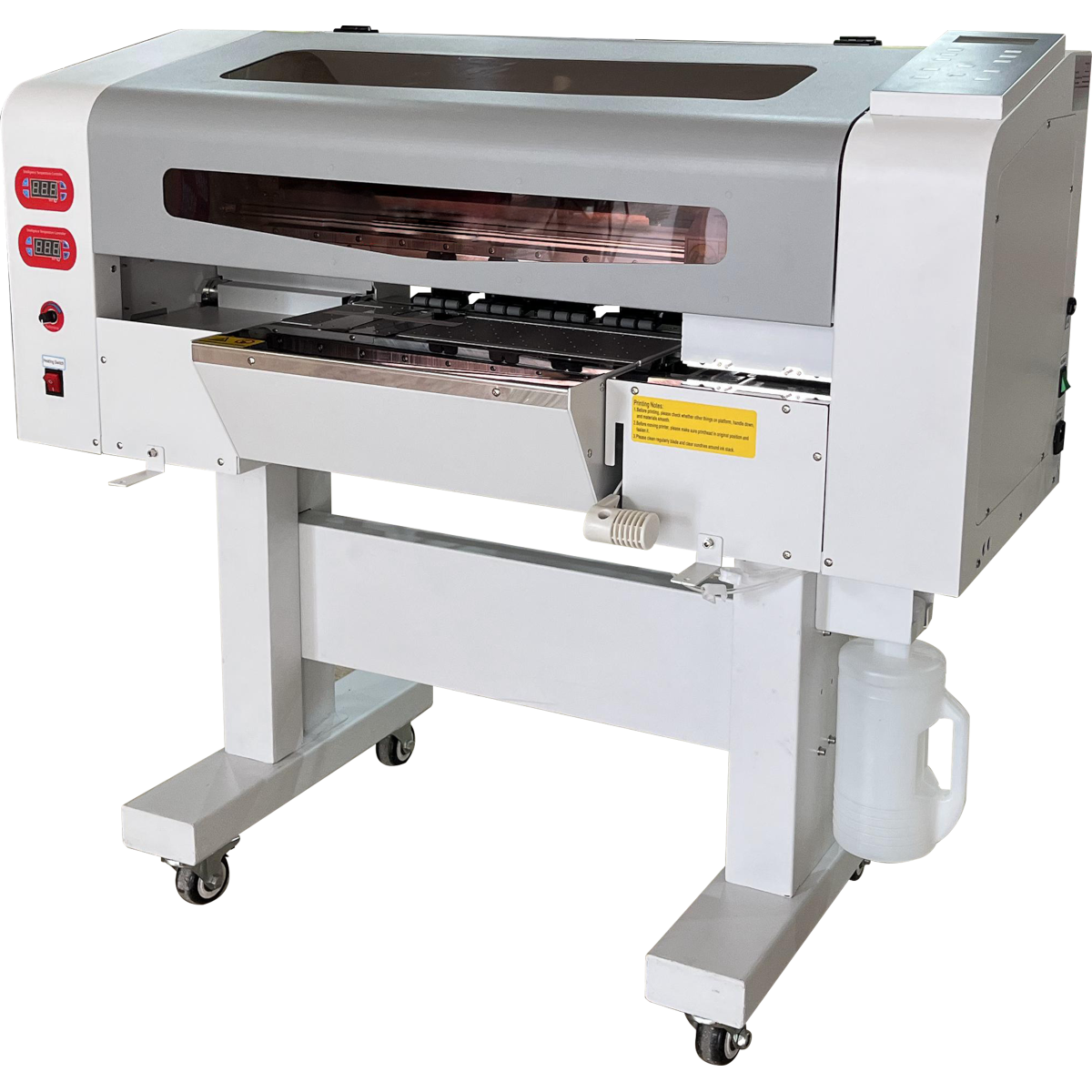

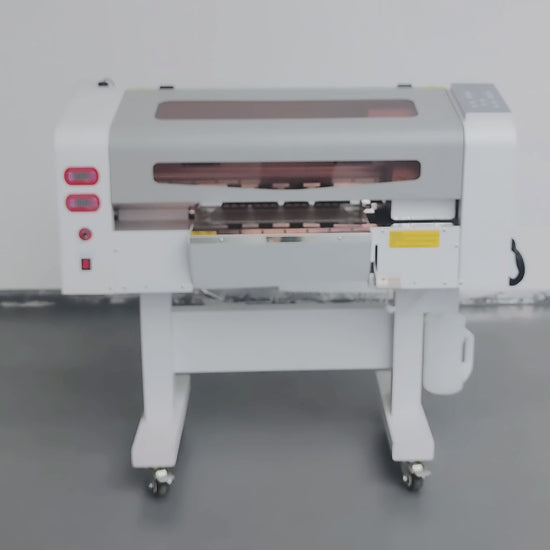

AUDLEY S2030-3 DTF Printer
- Dual Epson XP600 Print Heads – Delivers sharp, vibrant, high-resolution prints with excellent speed.
- Flexible Print Speeds – Choose between 4PASS (6㎡/h), 6PASS (4㎡/h), and 8PASS (3㎡/h) for the right balance of speed and detail.

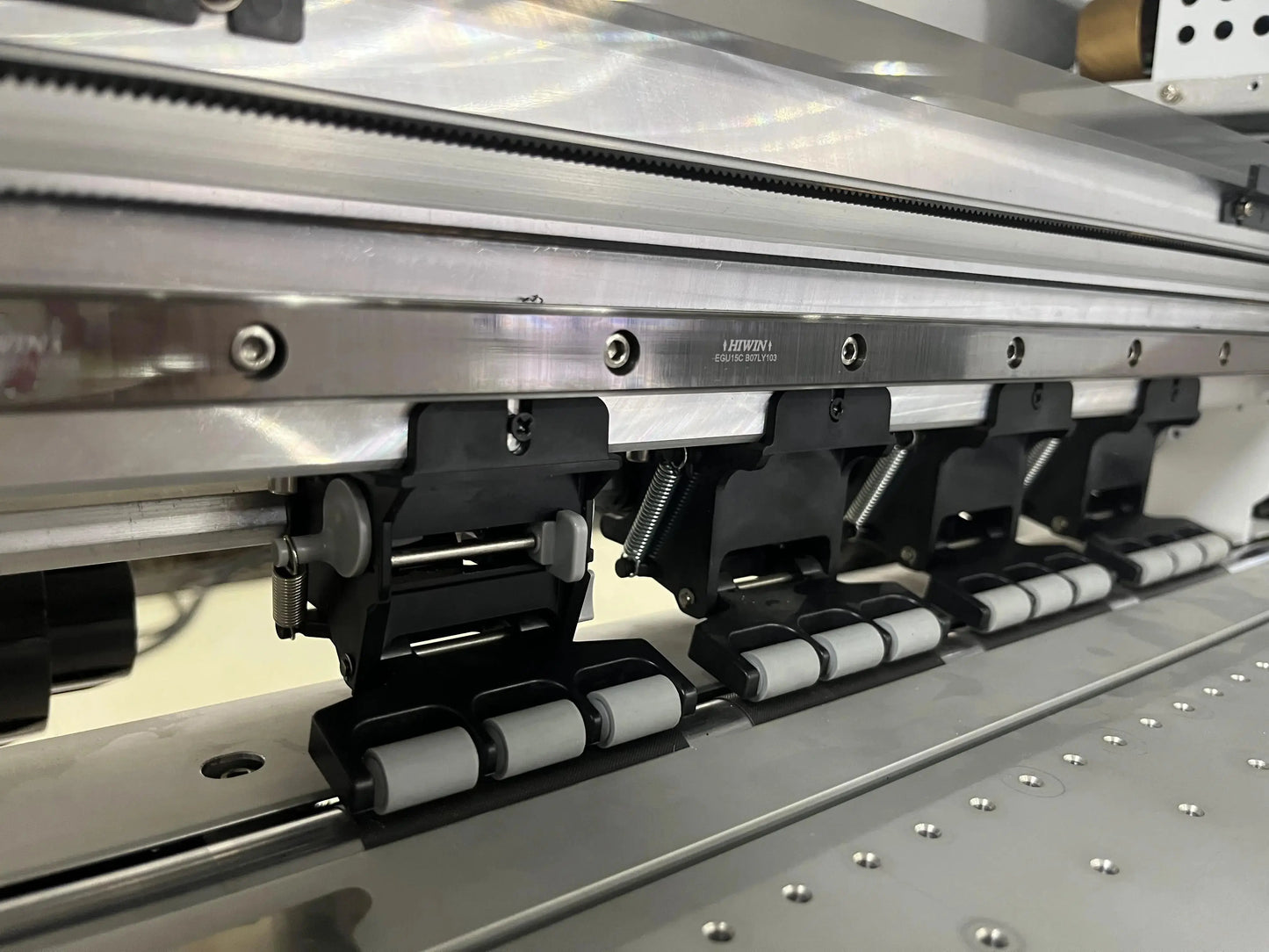

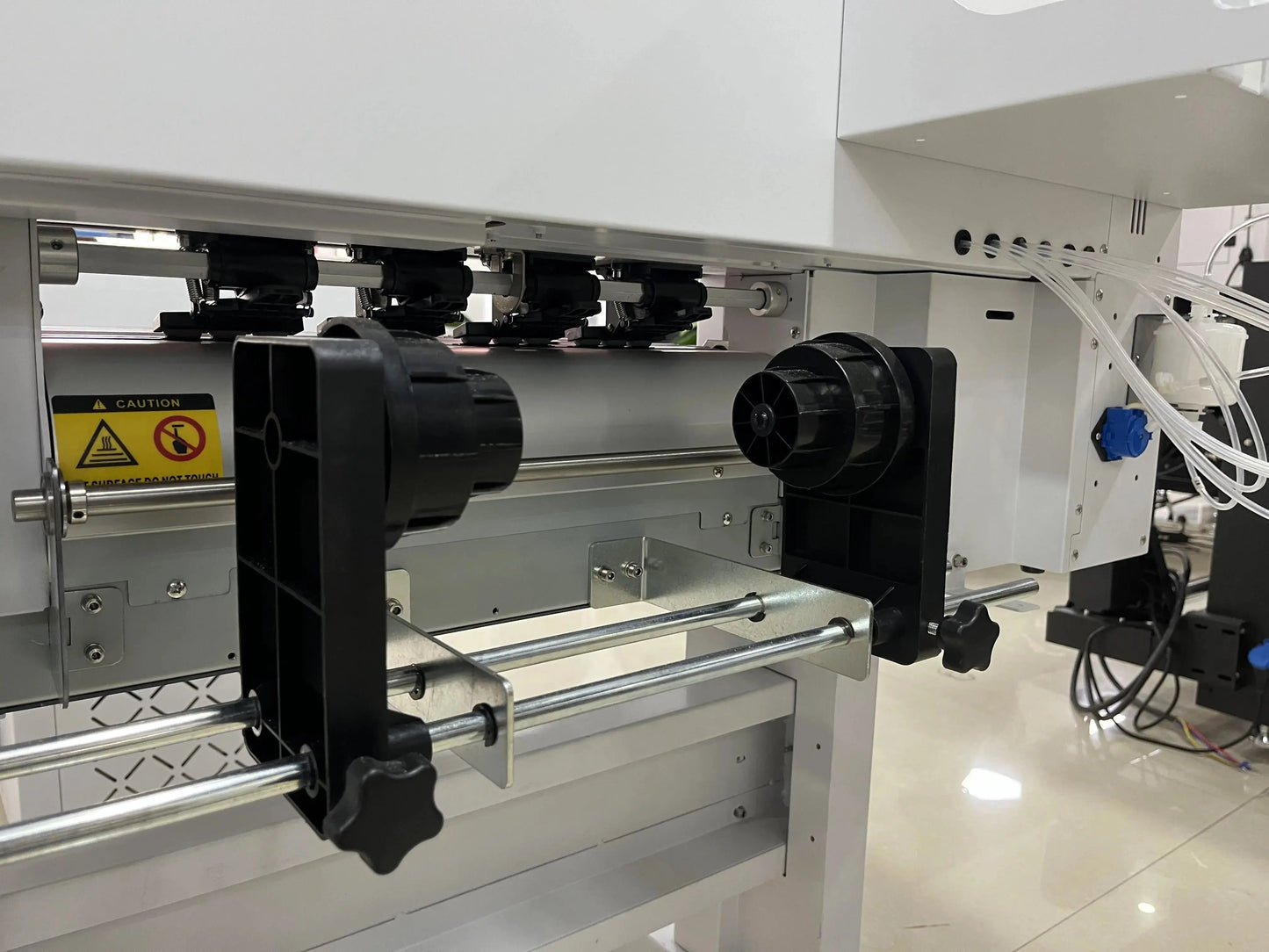

- Precision Material Handling – Pinch roller and pressing wheel system ensures smooth feeding and stable tension.

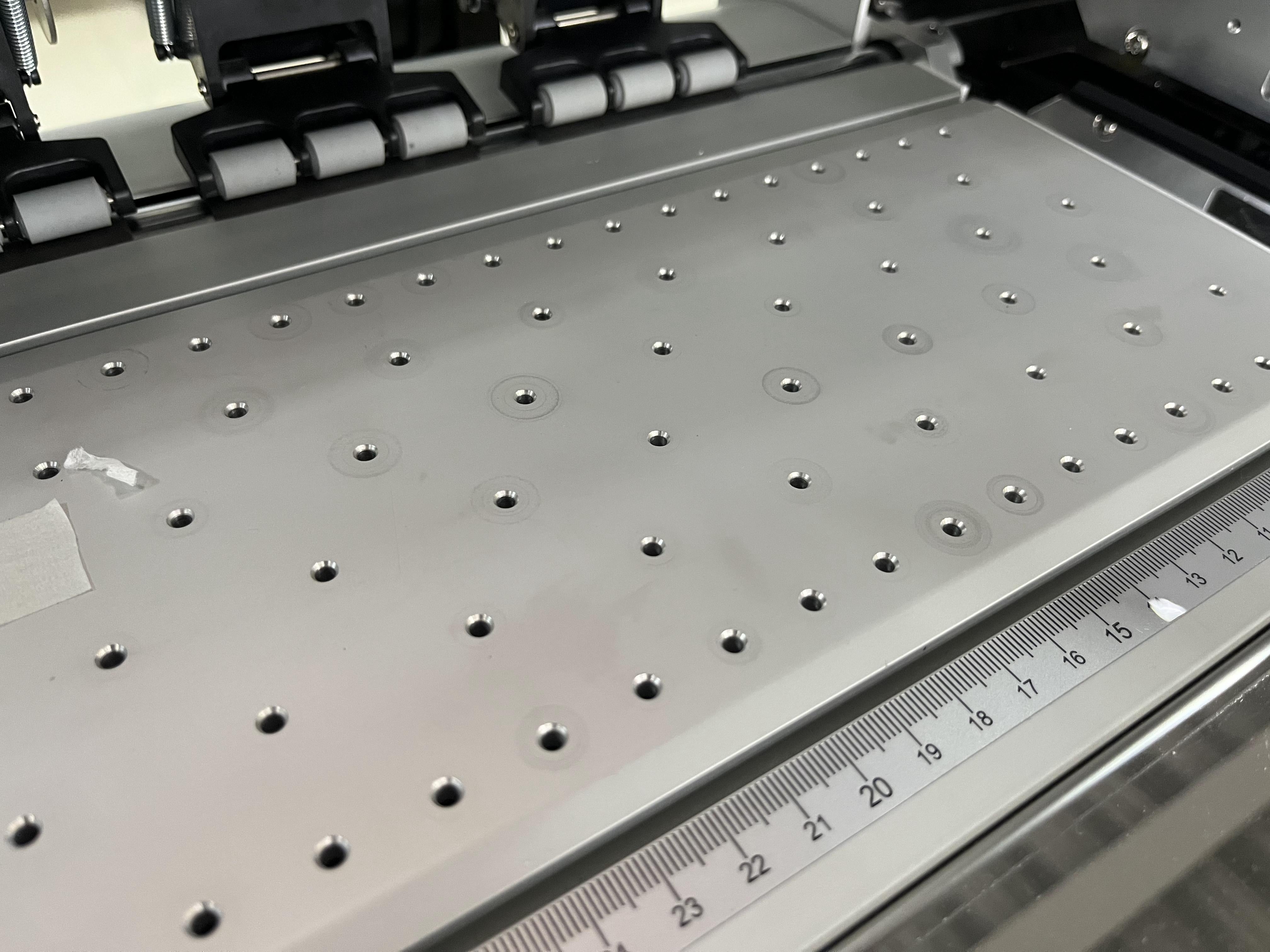

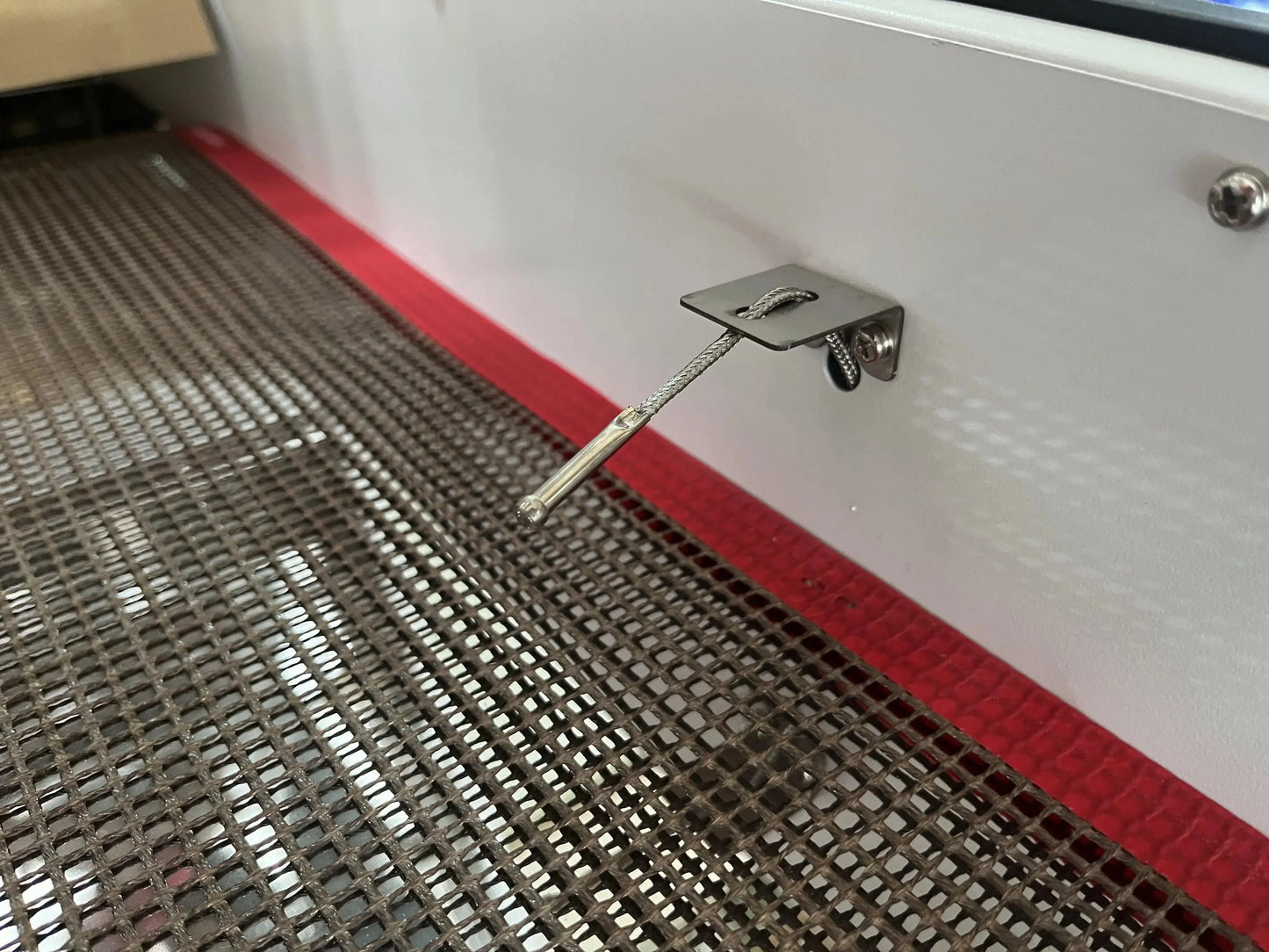

- Stable Media Transport – Teflon belt with suction keeps film in place for flawless printing results.

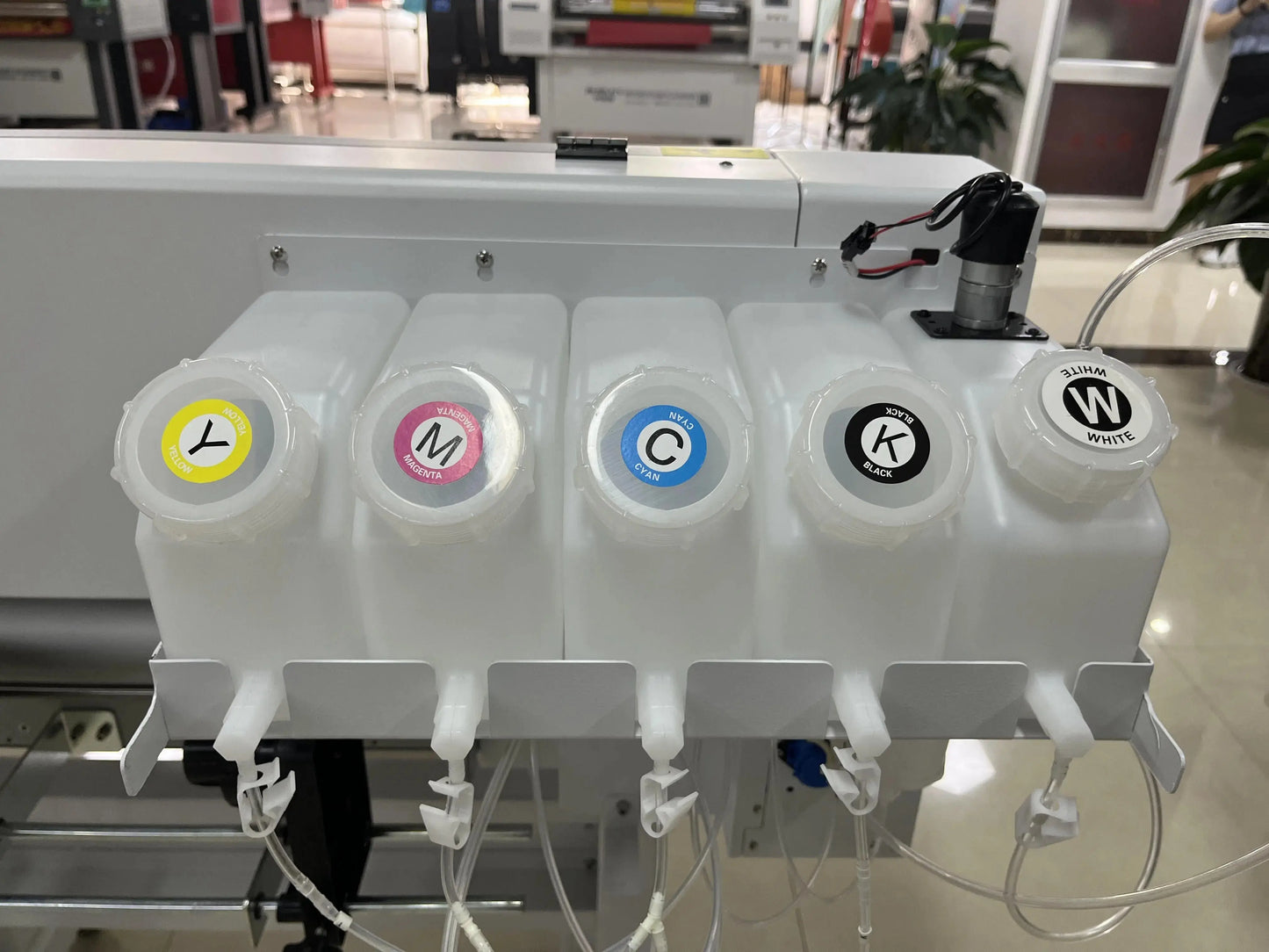

- Advanced Ink System – High-precision ink station prevents clogging and maintains consistent ink flow.
- Temperature Monitoring – Built-in sensor keeps operating conditions stable for long-term reliability.
- Durable Build – Compact but heavy-duty design built for continuous, high-volume operation.
- Versatile Ink Options – Uses pigment inks (CMYK+White) designed for durable, vibrant, and wash-resistant transfers.

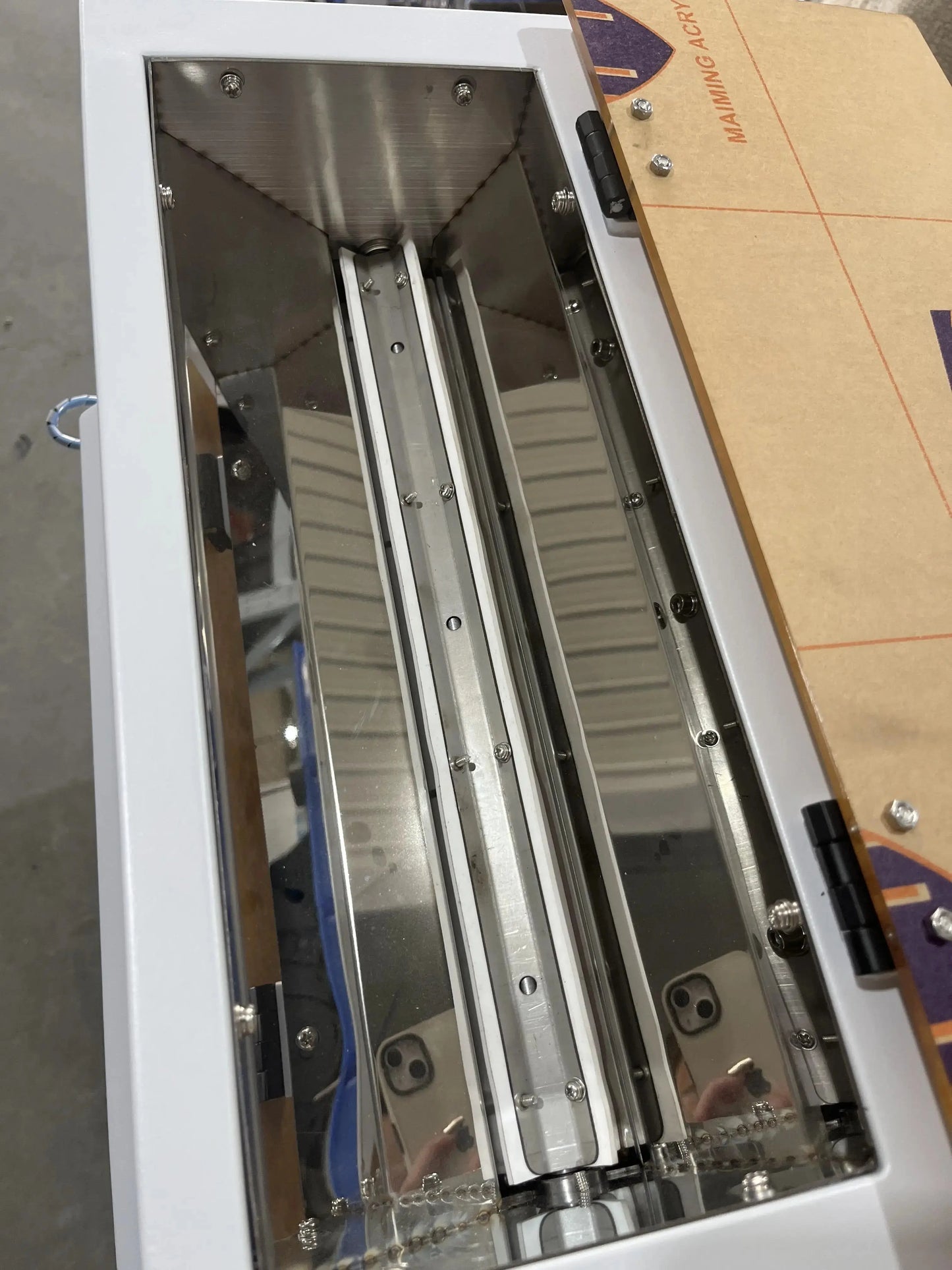

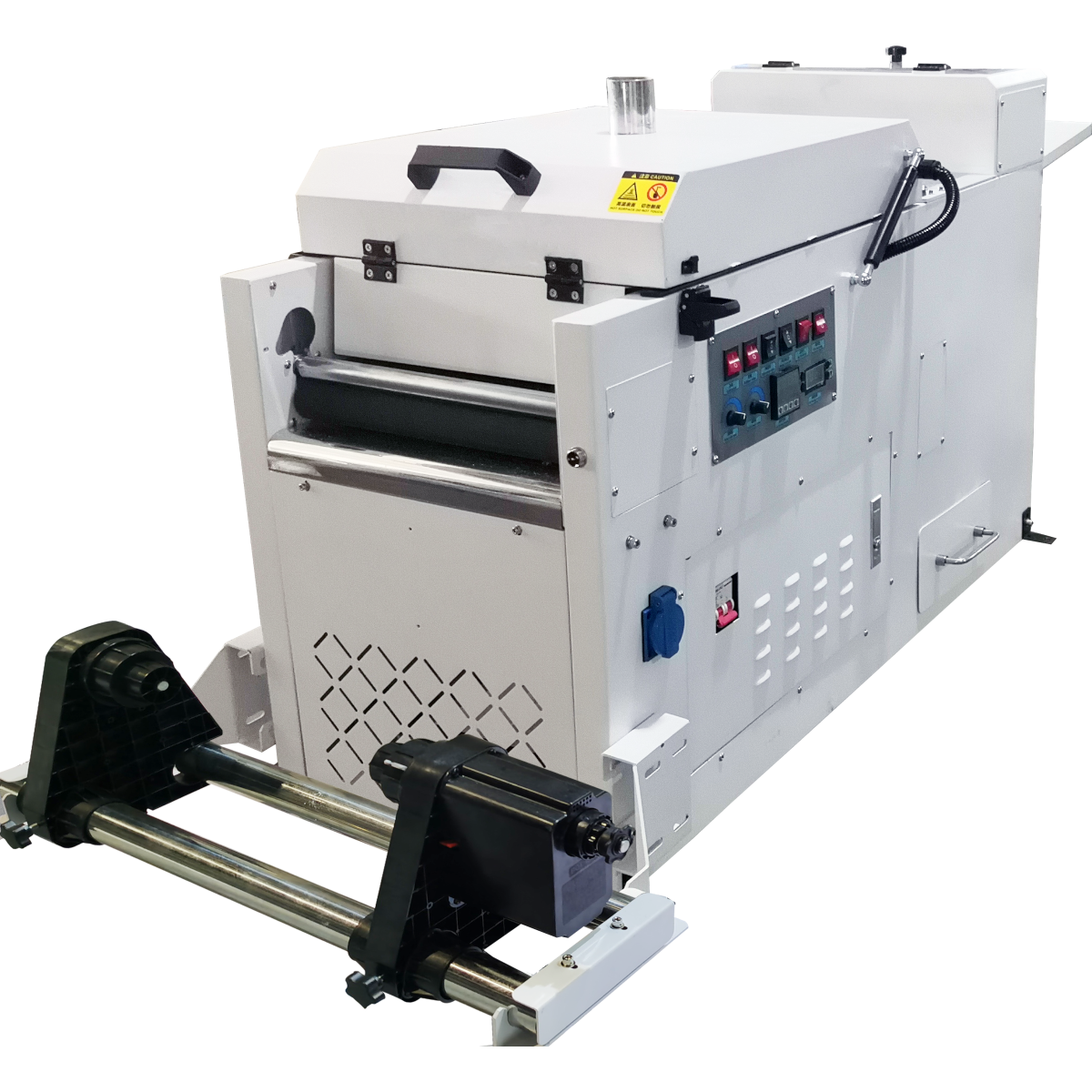

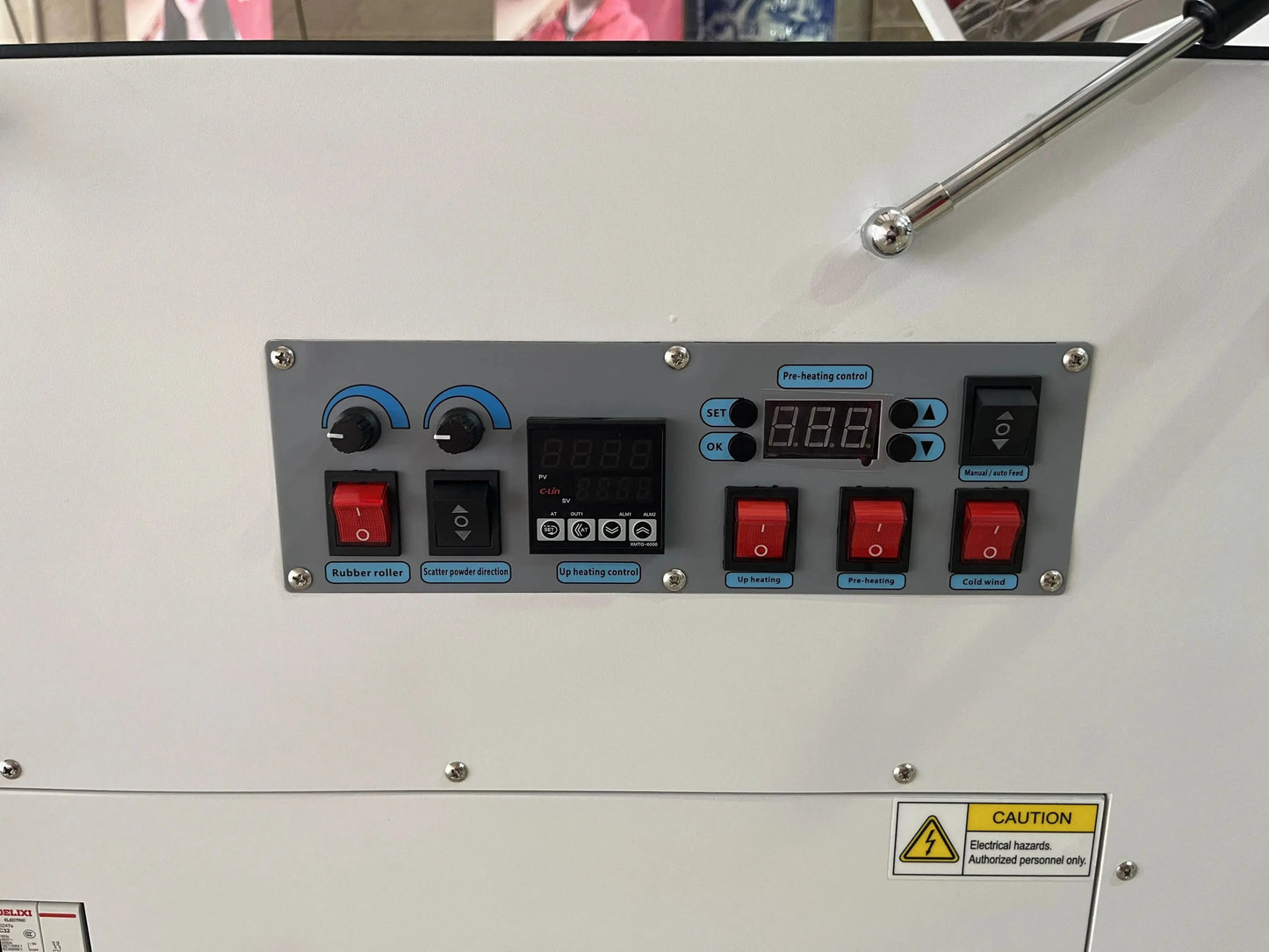

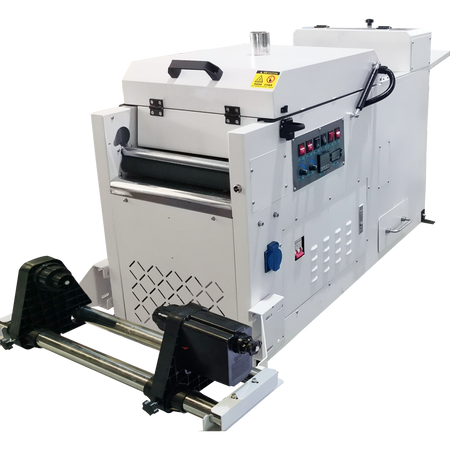

DF-300 Powder Shaker – Key Features

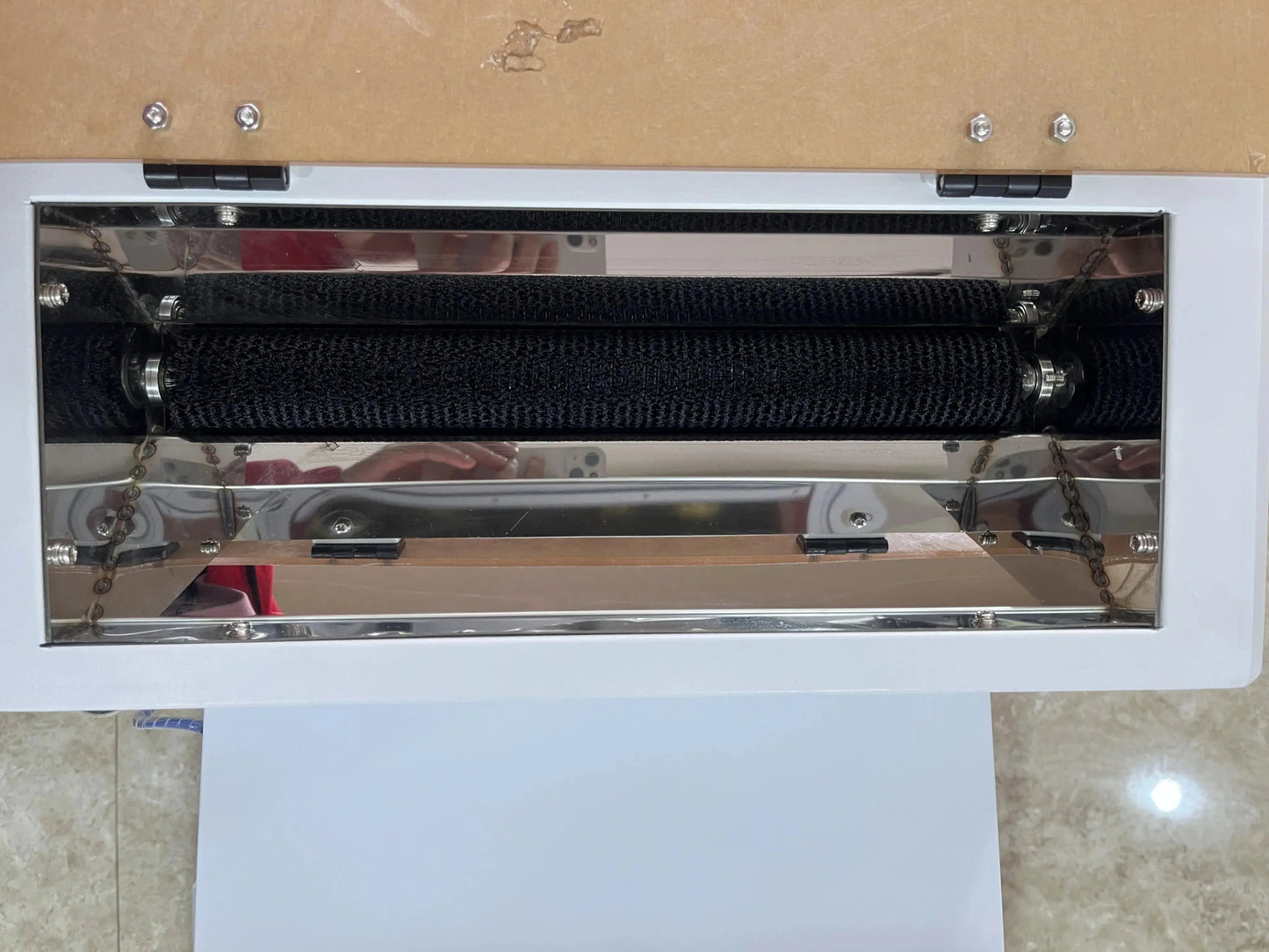

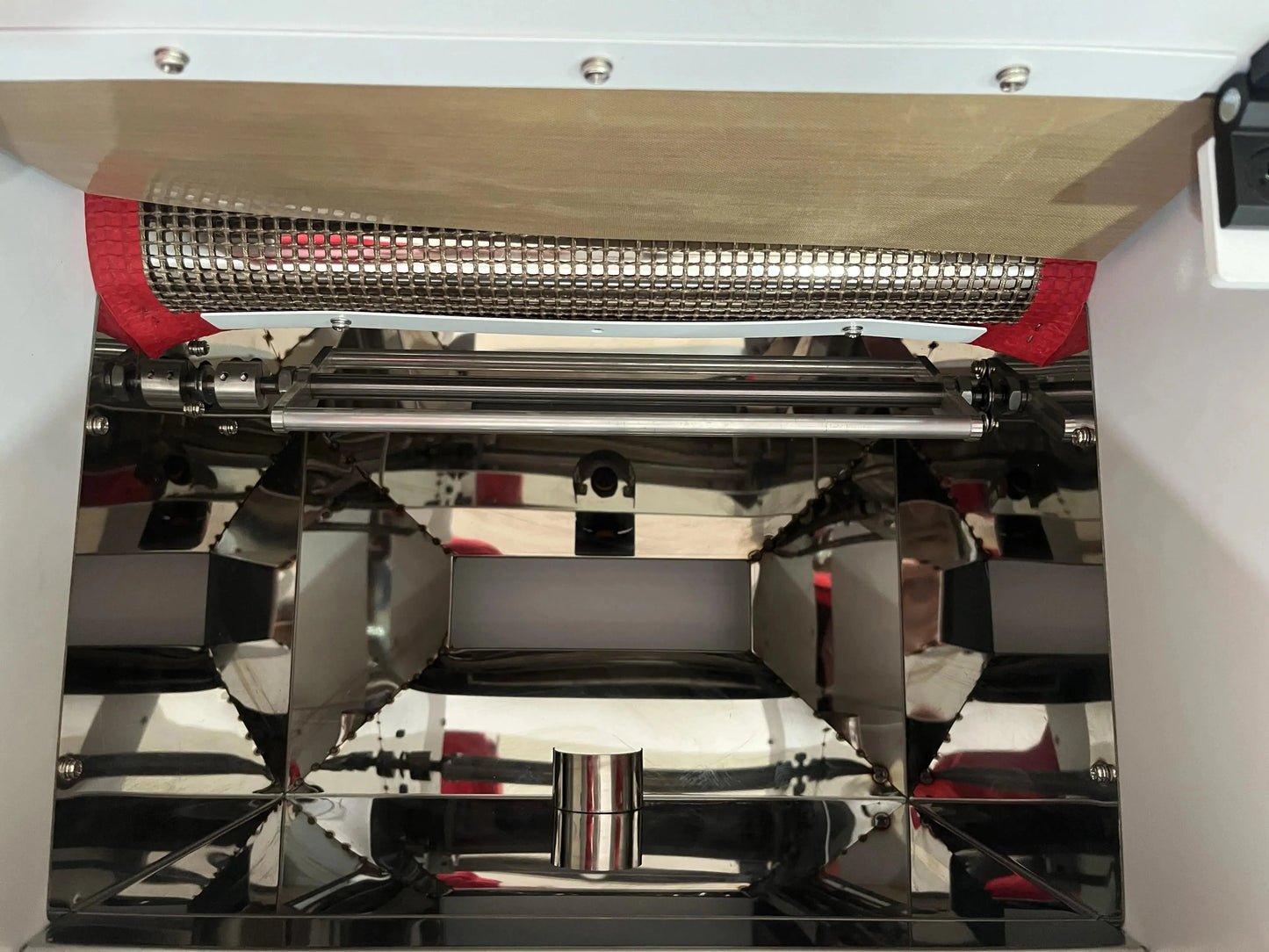

- Automated Powder Application – Consistently distributes adhesive powder for smooth, high-quality transfers.

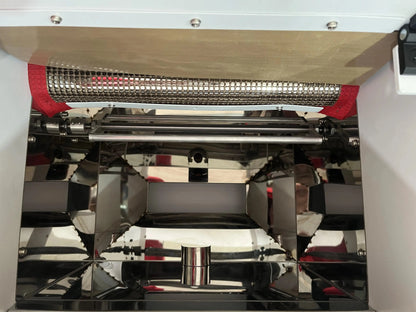

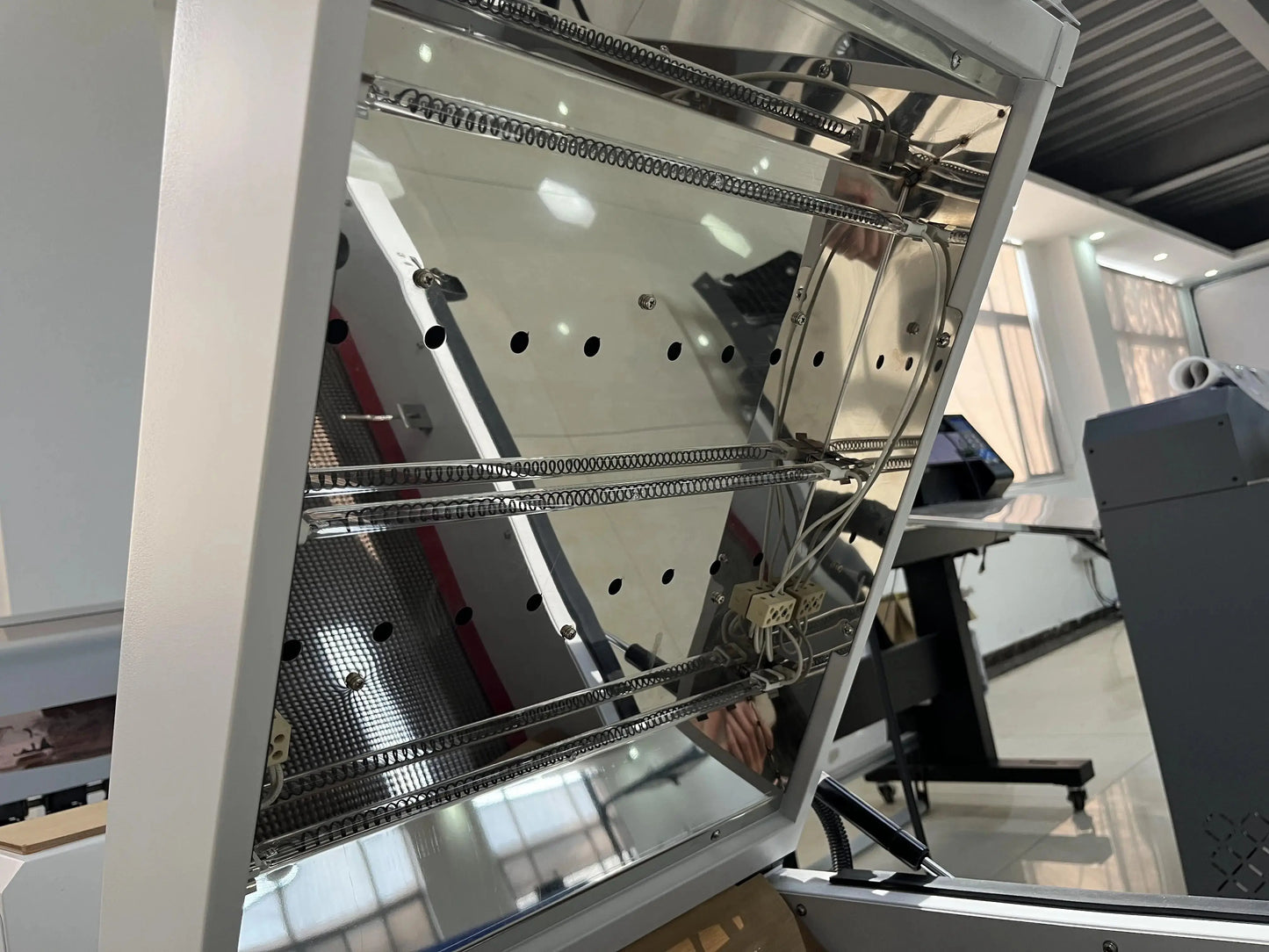

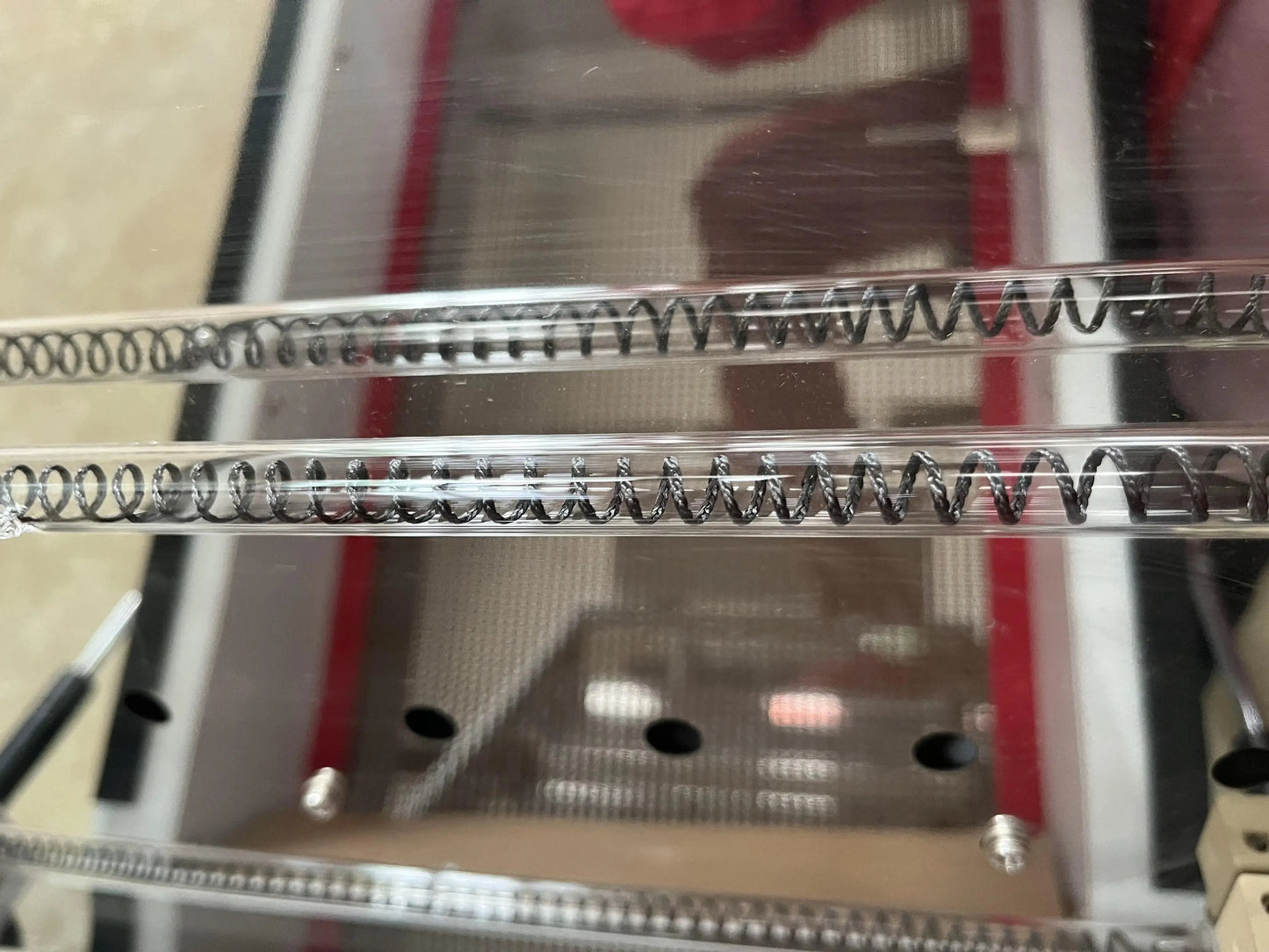

- Uniform Heating System – 3 × 400mm heating tubes (400W each) for even curing and reliable results.
- Compact Design – Optimized for smaller workspaces without sacrificing performance.
- Seamless Workflow Integration – Pairs perfectly with the S2030-3 printer for efficient production.
- Stable Output – Designed to ensure transfers cure correctly, reducing waste and misprints.
Technical Specifications

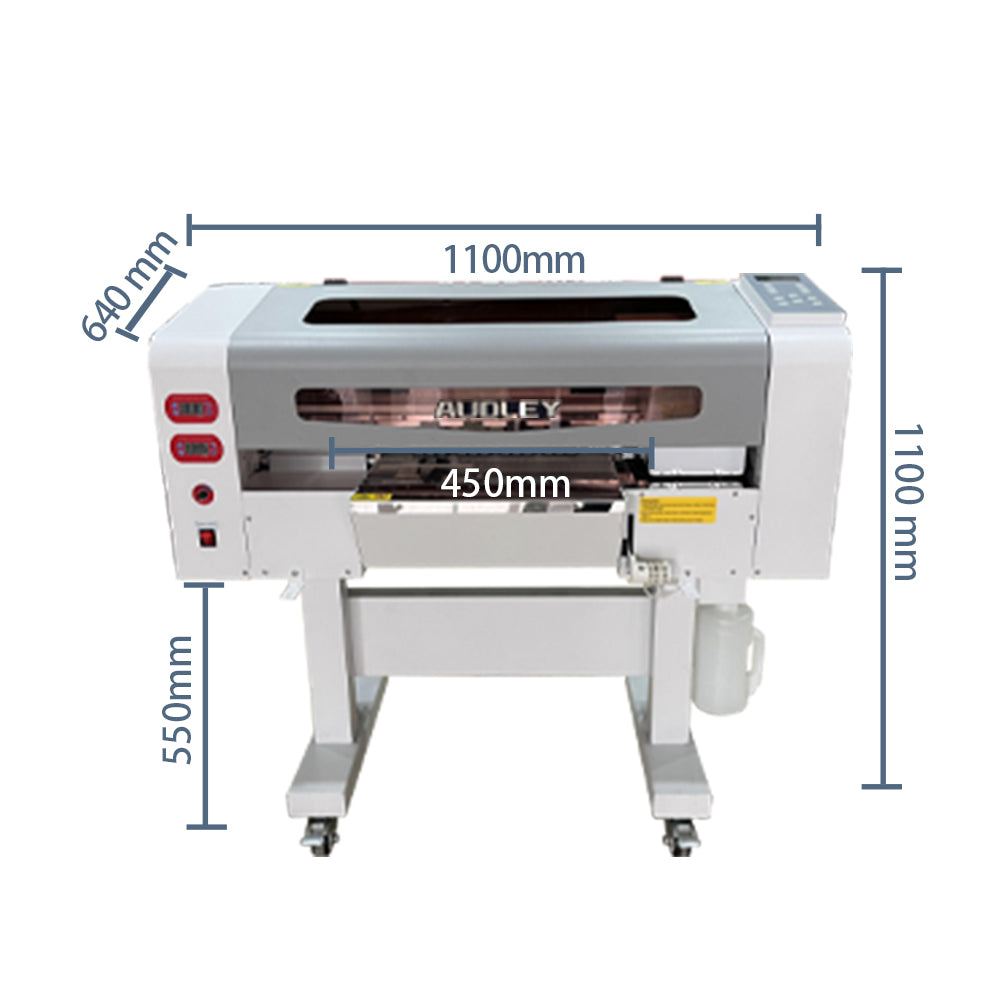

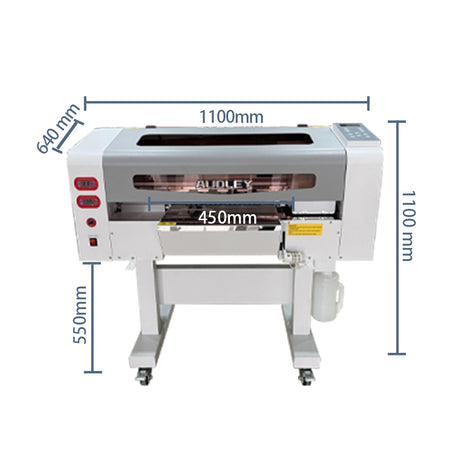

AUDLEY S2030-3 A3 DTF Printer
- Printer Model: S2030-3
- Print Head: 2 Epson XP600
- Board: Senyung Board
- Printing Speed:
4PASS: 6㎡/h
6PASS: 4㎡/h
8PASS: 3㎡/h - Working Size: Up to 30cm width
- Ink Type: Pigment Ink (CMYK+White)
- Voltage: 220V 50/60Hz
- Heating Tube: 3 × 400mm (400W each)
- Heating Temperature: 110°C
- Packing Size: 57 × 28 × 27 in (144 × 70 × 67 cm)
- Weight: 258 lbs (117 kg)

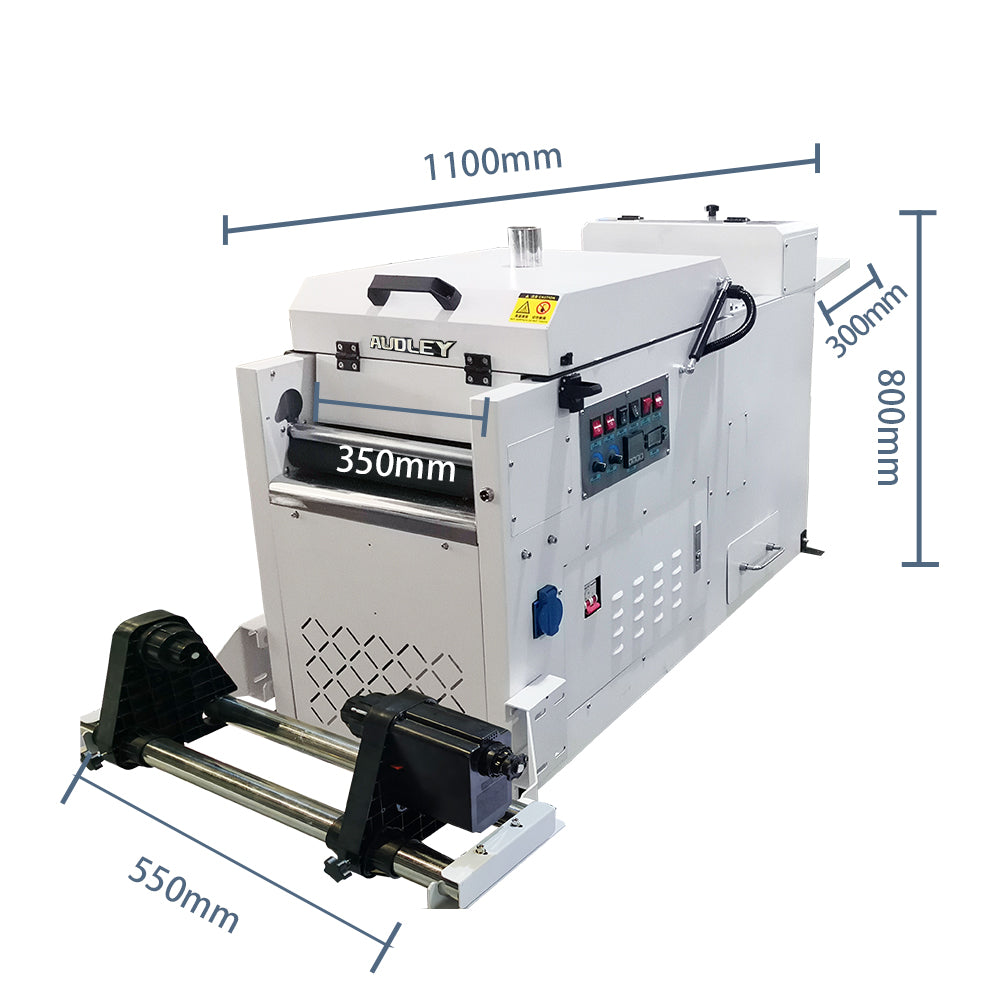

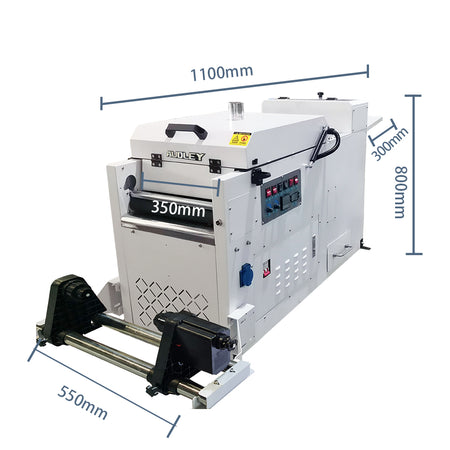

Audley DF-300 Powder Shaker
- Model: DF-300
- Working Width: Up to 30cm
- Heating Tube: 3 × 400mm (400W each)
- Packing Size: 52 × 26 × 40 in (130 × 65 × 101 cm)
- Weight: 227 lbs (103 kg)
Warranty
Warranty Coverage & Period
Supplier provides a one (1) year limited warranty for all products it manufactures. The warranty period shall be twelve (12) months from the date the equipment is activated. If installation is delayed due to Buyer, the warranty period will begin seven (7) days after shipment, regardless of installation date.
Warranty Exclusions
The following components are excluded from warranty coverage: printhead, nozzles, ink bottles, secondary ink tanks/cartridges, ink sacs, dampers, ink tubes, capping station (suction cap), ink suction nozzles, printhead cables, white ink mixer/splitter, and the complete ink system.
Additional exclusions apply to:
Damage due to improper operation, unstable voltage, or natural disasters.
Unauthorized disassembly, modification, or replacement of parts.
Use of non-Supplier-approved consumables (including inks) that cause or contribute to equipment failure.
Equipment relocation without Supplier’s prior written permission.
Software
Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.
Support
Online Technical Support:Our experienced support team is available nearly around the clock to provide timely assistance, helping minimize downtime and keep your production running smoothly.
Complimentary On-Site Repair:During the warranty period, we offer one complimentary on-site repair service to address eligible issues at cost, helping maximize equipment uptime and operational reliability.
Installation & Training Options
Free Online Setup Resources:Customers have access to a comprehensive library of instructional videos and step-by-step guides, enabling a smooth and efficient setup process—even for first-time users. (Prices are subject to actual conditions)
On-Site Installation & Training:For a one-time service fee, we provide professional on-site installation along with hands-on training. This ensures your team can operate the printer confidently, efficiently, and correctly from day one.
Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer, To maintain your warranty, please use DTF OneStop approve supplies, as the use of unapproved third-party supplies may void coverage.
