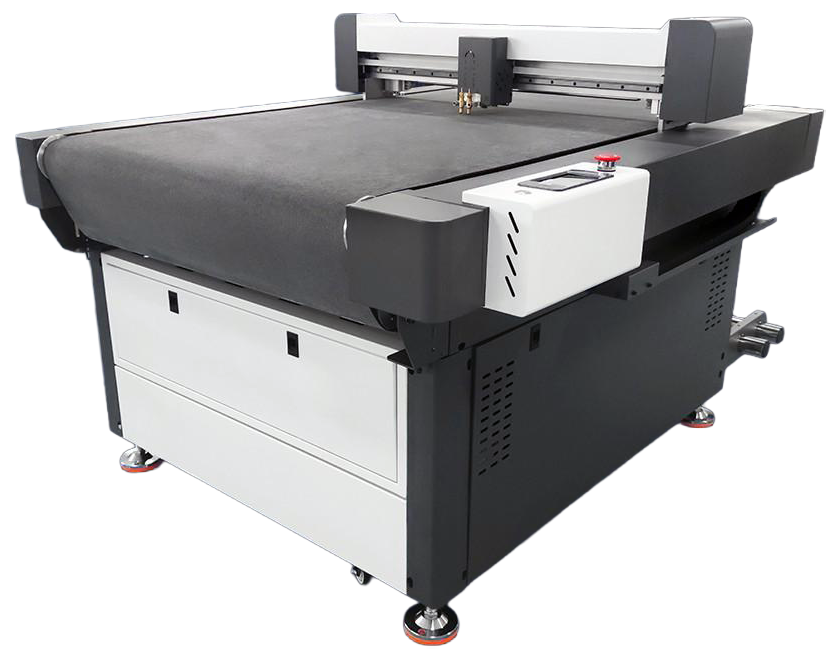

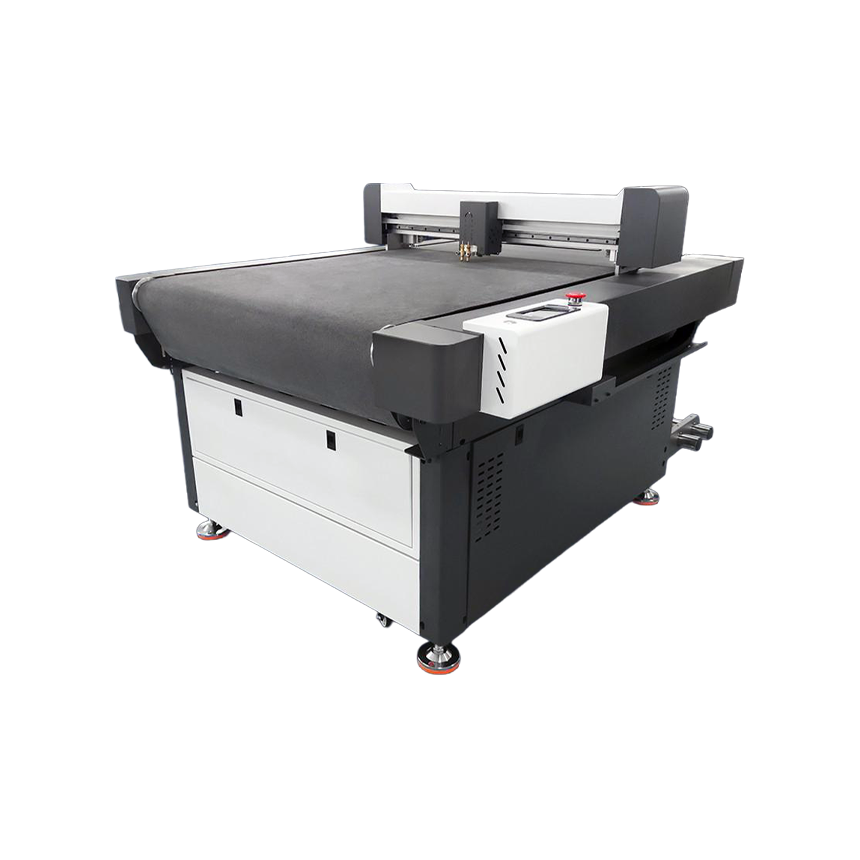

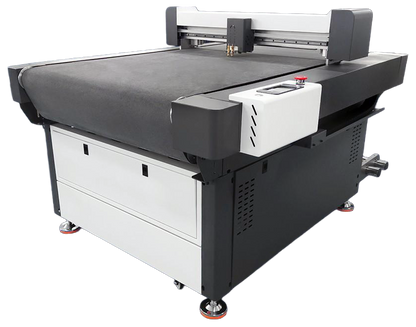

Audley 7090U-B Cutter – Precision UV DTF Cutting at Scale

Audley 7090U-B Cutter – Precision UV DTF Cutting at Scale

Contact Us For Pricing and Availability

In stock

View full details
Audley 7090U-B Cutter – Precision UV DTF Cutting at Scale DTFONESTOP

Professional-grade accuracy for modern UV printing workflows.

The Audley 7090U-B Cutter is built to match today’s high-output UV printing standards. Designed to integrate seamlessly with flatbed UV and UV-DTF printing systems, it delivers exceptional cutting precision, stability, and automation making it the perfect finishing companion for labels, patches, decals, and industrial applications.

Audley 7090U-B Cutter – Precision UV DTF Cutting at Scale DTFONESTOP

Perfect for UV DTF & Flatbed Applications

Pair the 7090U-B Cutter with your Audley 9060 UV Flatbed Printer or 8030/8073 UV DTF Printer for a full-cycle workflow from print to perfectly trimmed finished product. Designed to handle patch, sticker, and label production with speed and precision.

  • Seamless integration with Audley UV printer
  • High-precision optical cutting for DTF film and rigid substrates
  • Durable industrial build for 24/7 operation
  • Simple, reliable, and fast for both beginner and pro users
Audley 7090U-B Cutter – Precision UV DTF Cutting at Scale DTFONESTOP

Key Features and Benefits

1. Dual-Head Cutting System
Twin heads deliver fast, consistent contour and die-cutting performance ideal for large-volume runs and complex shapes.

2. Industrial-Grade Linear Guide System
Ensures smooth motion, long-term durability, and micron-level accuracy even under continuous operation.

3. Smart Optical Positioning
Built-in CCD camera enables precise contour recognition, automatic mark detection, and compensation for printing deviation resulting in perfectly aligned cuts every time.

4. High-Speed Motion Control
Equipped with a high-speed servo motor and advanced motion controller to maximize throughput without sacrificing accuracy.

5. Multi-Material Compatibility
Handles a wide range of substrates including PET, TPU, PVC, vinyl, stickers, film, and flexible board materials.

6. User-Friendly Interface
Features an intuitive touchscreen with real-time monitoring, job preview, and easy calibration for quick setup and changeovers.

7. Robust Construction
Heavy-duty steel chassis reduces vibration and enhances precision for extended production life.

Audley 7090U-B Cutter – Precision UV DTF Cutting at Scale DTFONESTOP

Product Specifications

Work Characteristics:
Computer operation and cutting performed simultaneously, supporting high-speed data transmission and continuous use.

Cutting Speed:
1–800 mm/s

Cutting Thickness:
≤ 1.2 mm

Cutting Size:
700 × 900 mm (Scrollable / Loop Feed)

Working Method:
Blind cut with camera edge-finding (single matrix detection)

Cutting Material:
Crystal labels, hot stamping film

Cutting Method:
Physical semi-cut, full cut, dry rubber, magnetic sheet, and similar materials (optional vibration tool for plate materials)

Pen / Blade Type:
Double blade structure

Fixing Method:
Rolling felt / vacuum adsorption

Mechanical Resolution:
0.025 mm

Software Resolution:
0.01 mm / 0.1 mm (selectable)

Transmission Interface:
USB, U disk offline mode, Ethernet (Wi-Fi optional), barcode scanning (optional)

Body Memory:
256 MB

Command System:
HP-GL compatible format

Control Panel:
Touch display

Operating Voltage / Power:
AC 110V / 220V ±10%, 50/60Hz, less than 2800W

Machine Dimensions (L × W × H):
1525 × 1180 × 1050 mm

Package Size (L × W × H):
1700 × 1270 × 1210 mm

Net Weight:
320 kg

Shipping Weight:
340 kg

Software

No additional software is required. The machine operates entirely through its built-in touch-screen panel.

Support

18-Hour U.S.-Based Online Support: Our knowledgeable support team is ready nearly around the clock to assist you, minimizing downtime and keeping production on track. One Complimentary On-Site Repair: Within the warranty period, we offer a one-time no-cost on-site repair to address any eligible issues, maximizing machine uptime for your business.

Installation & Training Options

Free Online Setup Resources: Access a library of video tutorials and step-by-step guides designed to make setup easy, even for first-time users.

On-Site Installation & Training ($500): For a one-time fee, we provide comprehensive on-site setup and personalized training to ensure your team can operate the printer confidently and efficiently from day one.

Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer, To maintain your warranty, please use DTF OneStop approve supplies, as the use of unapproved third-party supplies may void coverage.
