Product Overview

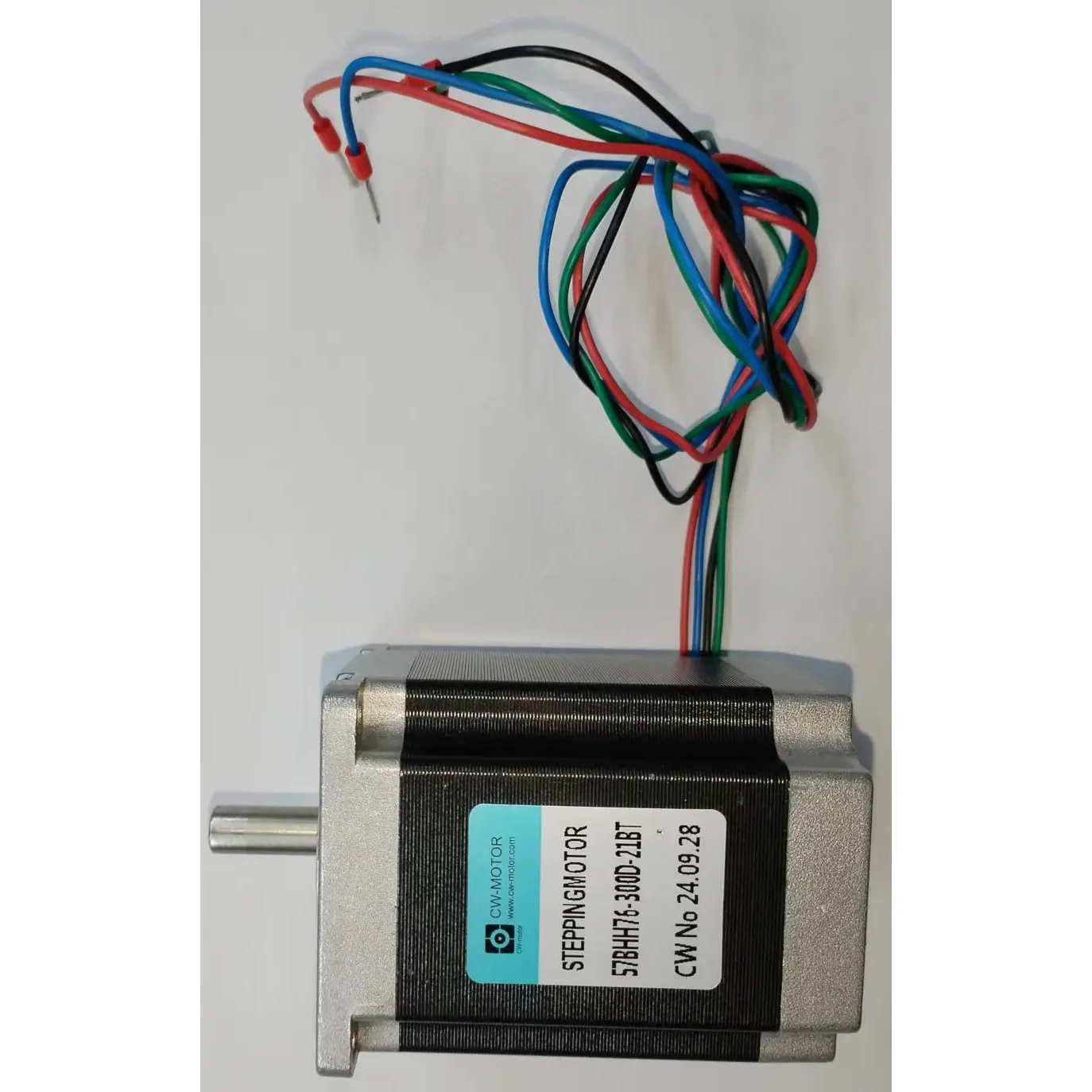

The 57BHH76-300D-21BT is a high-performance NEMA 23 hybrid stepper motor designed for applications requiring precision and reliability. Manufactured by Changzhou Chuangwei Motor & Electric Apparatus Co., Ltd, this motor is part of the 57BHH series, known for its high torque, low heat generation, and smooth operation.
Key Features
- High Torque Output: Delivers powerful holding torque, ideal for applications requiring precise positioning.
- Low Heat Generation: Efficient design reduces heat buildup during operation, extending motor lifespan.
- Smooth Operation: Precision engineering ensures minimal vibration and noise for seamless motion control.
- Durable and Reliable: Made from high-quality materials, suitable for long-term use in industrial environments.
Technical Specifications
- Step Angle: 1.8°
- Rated Current: 3.0A
- Holding Torque: 1.8Nm
- Phase Resistance: 0.6Ω ±10%
- Phase Inductance: 2.2mH ±20%
- Dimensions: 57mm x 57mm x 76mm
- Weight: 1.0kg
Applications
- DTF Printers: Provides precise motion control, ensuring high-quality print output.
- CNC Machines: Suitable for high-precision tasks like engraving, cutting, and drilling.
- 3D Printers: Ensures accurate positioning of the print head for improved print quality.
- Industrial Automation: Ideal for conveyor systems, packaging machines, and other automated equipment.
Usage Notes
When installing and using the 57BHH76-300D-21BT Stepper Motor, ensure compatibility with the driver and control system. Follow the manufacturer’s technical manual and installation guidelines to achieve optimal performance and maintain operational safety.
