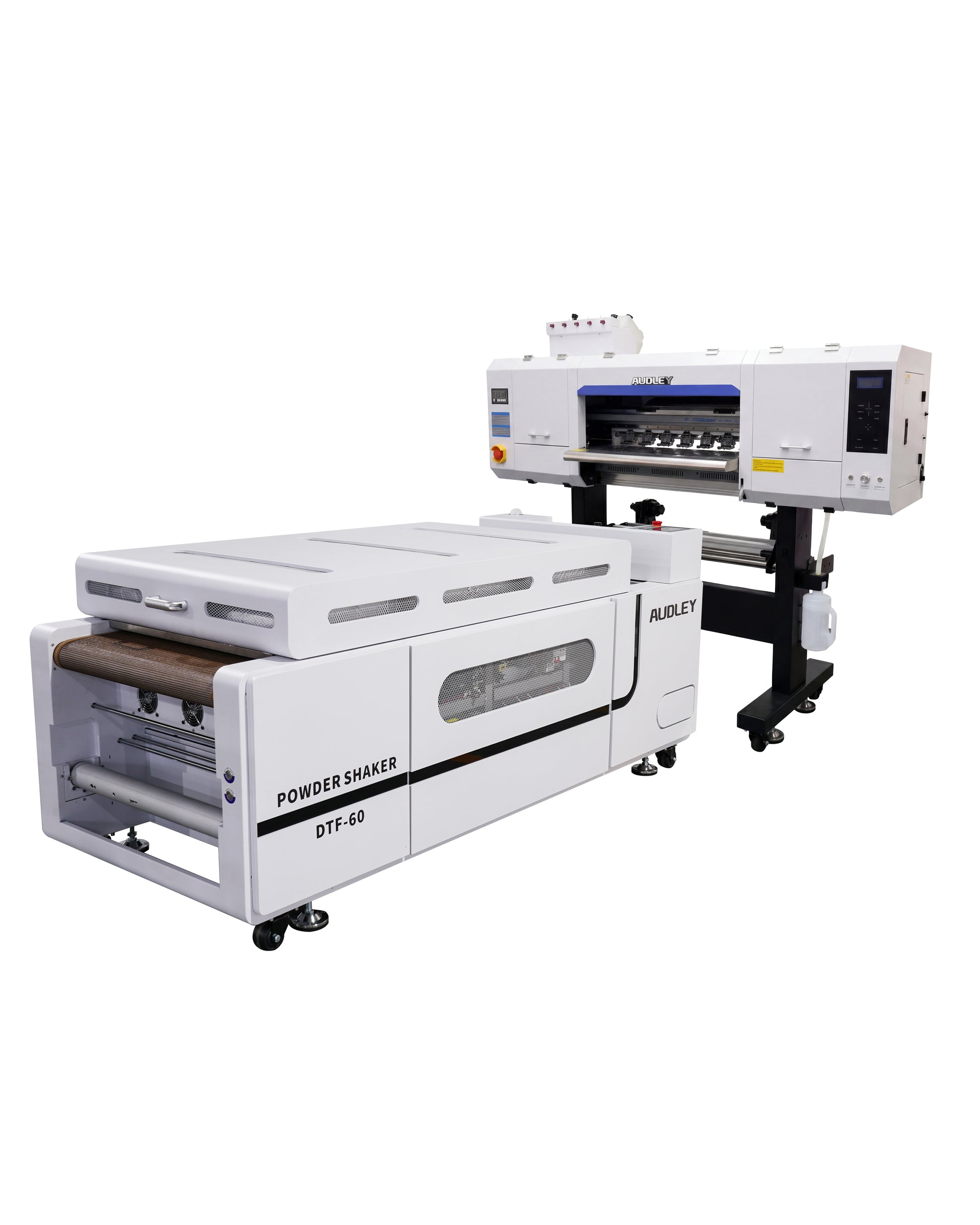

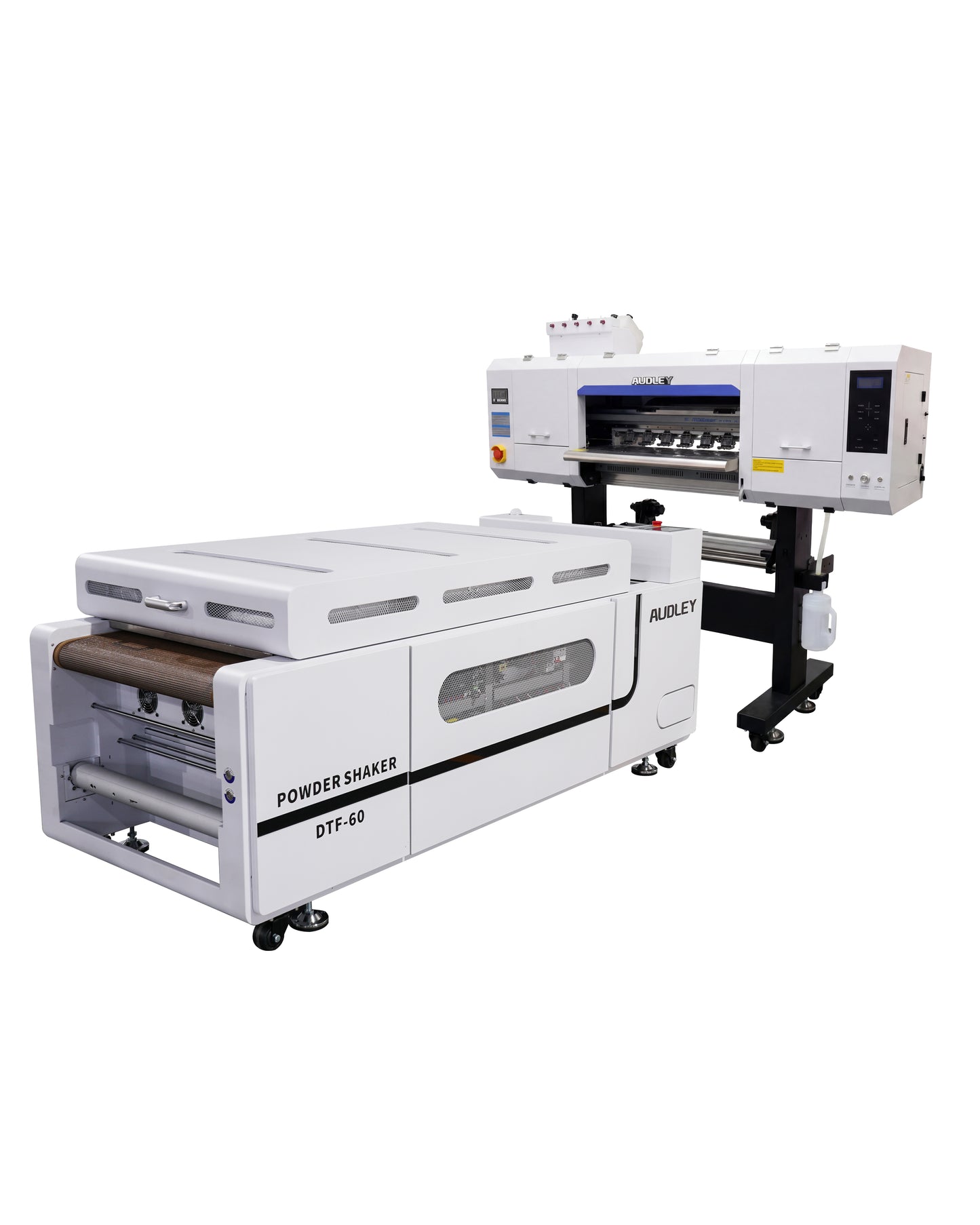

Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer with Audley ADL07K12 Powder Shaker
Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer with Audley ADL07K12 Powder Shaker
In stock
Couldn't load pickup availability

AUDLEY S8074-3 DTF Printer
The AUDLEY S8074-3 DTF Printer, powered by 4 Epson I3200-A1 print heads, combined with the Audley ADL07K12 Powder Shaker, offers unmatched precision, speed, and quality for textile printing. This powerful duo guarantees consistent, vibrant prints with efficient powder application and curing to meet high-demand production needs.
Why Choose This DTF Combo?
- Superior Print Quality: Achieve outstanding color vibrancy and image clarity with the 4-pass, 6-pass, and 8-pass speed options.
- Efficient Production: The powerful shaker applies powder uniformly, reducing errors and enhancing transfer quality.
- User-Friendly Operation: Simplified controls and automated functions make this combo suitable for both new and experienced operators.
- Reliable & Durable: Both the printer and shaker are built for consistent, heavy-duty use, ensuring long-term productivity.
In-Depth Product Features
AUDLEY S8074-3 DTF Printer
- 4 Epson I3200-A1 Print Heads – delivers vibrant, accurate colors with excellent detail and smooth gradients.
- High-Speed & Versatile Printing – selectable print modes (4-pass, 6-pass, 8-pass) let you choose between maximum productivity or ultra-fine detail.
- Stable Ink System – high-precision ink station maintains consistent ink flow, reducing clogging and downtime.
- Accurate Media Feeding – pinch roller and pressing wheel system ensures smooth, even tension during printing.
- Temperature Monitoring – built-in sensor automatically adjusts to keep the printer operating in ideal conditions.
- Compact Yet Heavy-Duty – supports media widths up to 24 in (60 cm) with a robust frame designed for continuous production.
- Pigment Ink Flexibility – compatible with CMYK + White ink for durable, vibrant, and washable prints.

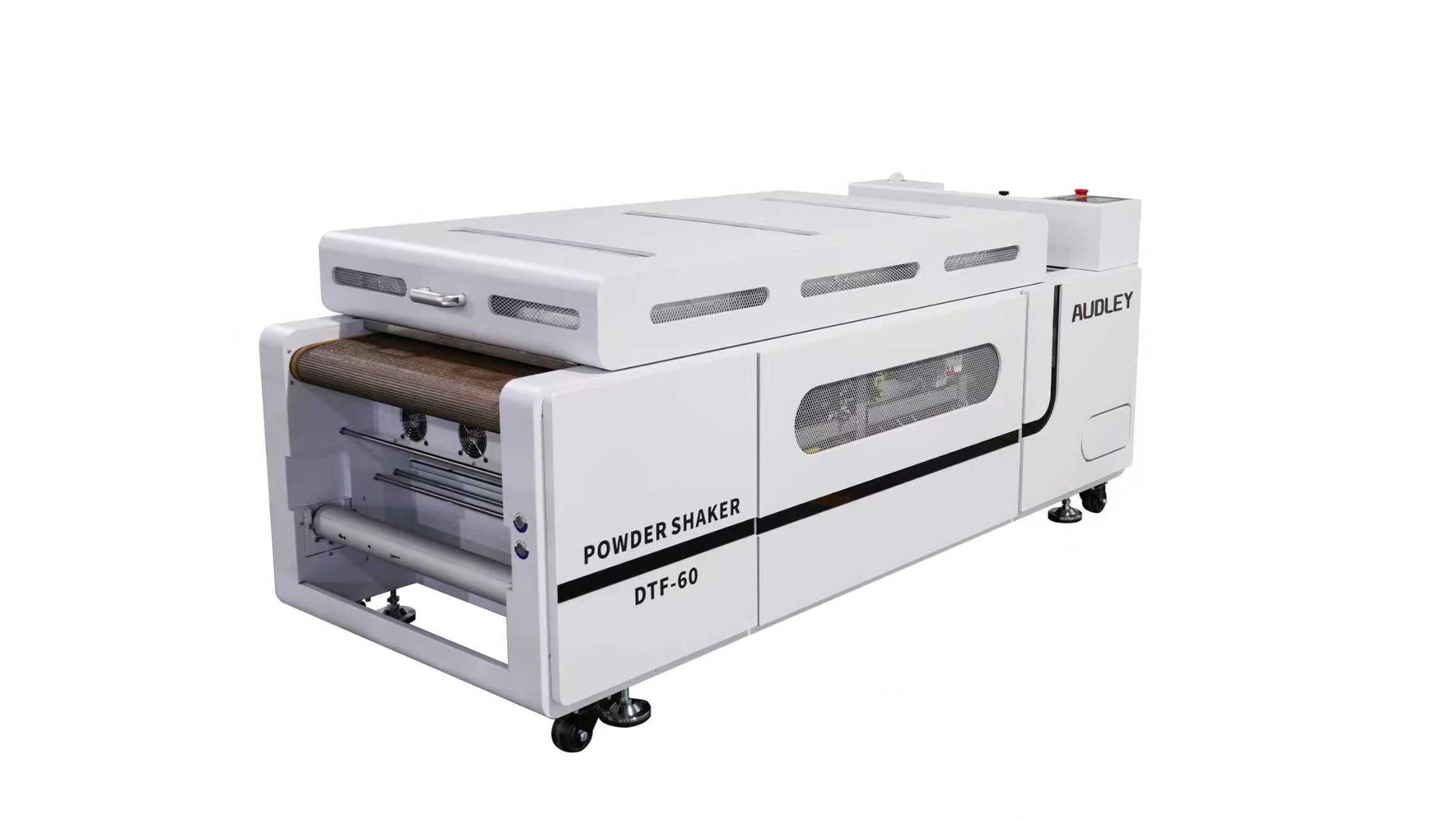

ADL07K12 Premium DTF Powder Shaker
- Specification Category: Technical Parameters
- Model: ADL07K12
- Maximum Working Width: 600 mm
- Voltage / Power: 220V
- Heating System: Front Heating + Top & Bottom Curing
- Functional Features:
- Auto-Sensing Winding & Unwinding
- Auto Powder Scattering & Recycling
- Dual-Row Radar Anti-Collision
- Drawer-Style Integrated Purifier - Machine Dimensions (L×W×H): 1590 × 1020 × 1040 mm
- Packing Dimensions (L×W×H): 1590 × 1050 × 1110 mm
- Net / Gross Weight: 245 kg / 285 kg
Technical Specifications
Printer – AUDLEY S8074-3 DTF Printer
- Model: S8074-3
- Print Head Configuration: 4 × Epson I3200-A1
- Control Board: Hoson board
- Printing Speed:
4 Pass: 26 m²/h
6 Pass: 18 m²/h
8 Pass: 12 m²/h - Working Size: ≤ 24 in (60 cm)
- Ink Type: Pigment Ink (CMYK + White)
- Voltage & Power: 220V, 50/60Hz – 1500W
- Working Environment: 59°F – 86°F (15°C – 30°C)
- Packing Size: 91 × 30 × 35 in (230 × 76 × 87 cm)
- Weight: 600 lbs (275 kg)
ADL07K12 Premium DTF Powder Shaker
- Specification Category: Technical Parameters
- Model: ADL07K12
- Maximum Working Width: 600 mm
- Voltage / Power: 220V
- Heating System: Front Heating + Top & Bottom Curing
- Functional Features:
- Auto-Sensing Winding & Unwinding
- Auto Powder Scattering & Recycling
- Dual-Row Radar Anti-Collision
- Drawer-Style Integrated Purifier - Machine Dimensions (L×W×H): 1590 × 1020 × 1040 mm
- Packing Dimensions (L×W×H): 1590 × 1050 × 1110 mm
- Net / Gross Weight: 245 kg / 285 kg
Warranty
Warranty Coverage & Period
Supplier provides a one (1) year limited warranty for all products it manufactures. The warranty period shall be twelve (12) months from the date the equipment is activated. If installation is delayed due to Buyer, the warranty period will begin seven (7) days after shipment, regardless of installation date.
Warranty Exclusions
The following components are excluded from warranty coverage: printhead, nozzles, ink bottles, secondary ink tanks/cartridges, ink sacs, dampers, ink tubes, capping station (suction cap), ink suction nozzles, printhead cables, white ink mixer/splitter, and the complete ink system.
Additional exclusions apply to:
Damage due to improper operation, unstable voltage, or natural disasters.
Unauthorized disassembly, modification, or replacement of parts.
Use of non-Supplier-approved consumables (including inks) that cause or contribute to equipment failure.
Equipment relocation without Supplier’s prior written permission.
Software
Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.
Support
Online Technical Support:Our experienced support team is available nearly around the clock to provide timely assistance, helping minimize downtime and keep your production running smoothly.
Complimentary On-Site Repair:During the warranty period, we offer one complimentary on-site repair service to address eligible issues at cost, helping maximize equipment uptime and operational reliability.
Installation & Training Options
Free Online Setup Resources:Customers have access to a comprehensive library of instructional videos and step-by-step guides, enabling a smooth and efficient setup process—even for first-time users. (Prices are subject to actual conditions)
On-Site Installation & Training:For a one-time service fee, we provide professional on-site installation along with hands-on training. This ensures your team can operate the printer confidently, efficiently, and correctly from day one.
Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer, To maintain your warranty, please use DTF OneStop approve supplies, as the use of unapproved third-party supplies may void coverage.
